Stepper Motor Assembly Equipment

Stepper Motor Assembly Equipment

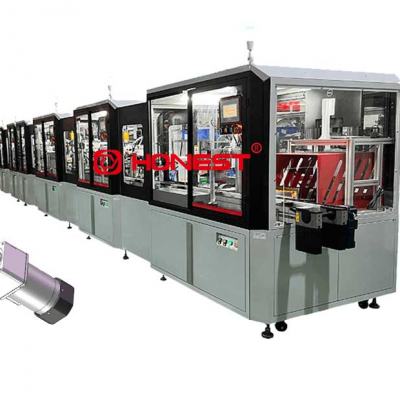

Stepper motor assembly equipment, with a production efficiency of 15s/pcs, compatible with the assembly and production of two types of motors, with a single equipment replacement time of less than 10 minutes. The main processes of the equipment include: casing hot pressing assembly, rotor bearing assembly, sealing ring assembly, rotor inlet cover, damping spring cover plate assembly and screwing, tachometer assembly and screwing, fan blade assembly, tooth box assembly and screwing, running in, testing and labeling, noise testing, and other processes.

Product Details

Advantages

01 Electric cylinder position repeated positioning accuracy: 0.02mm

02 Servo module transporting repeated positioning accuracy: 0.03mm

03 tooling trays are compatible with all products of both series, with a single equipment replacement time of less than 10 minutes

04 The motor running-in station adopts a programmable power supply, which can be programmatically switched to output power

05 Equip the equipment with dedicated safety gratings, safety locks, etc. for personal safety protection

06 Equipped with high-precision sensors, visual inspection systems, etc., to prevent missing, less, incorrect installation, and quality inspection after installation

Equipment Parameters
