1002A Double Flyer Winding Machine

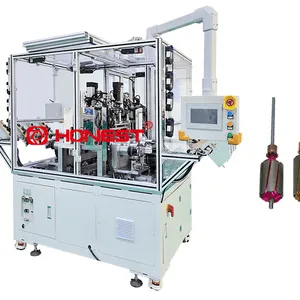

1002A Double Flyer Winding Machine thumbnail-1
1002A Double Flyer Winding Machine photo-1
US$ 100 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONEST
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Shenzhen HONEST Intelligent Equipments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONEST
Place of Origin China

1002A Double Flyer Winding Machine


This double flyer winding machine is 3-4 times more efficient than the flyer winding machine currently on the market. It is fully automatic loading and unloading and requires only one person to operate. The equipment has a compact design, a small footprint and reasonable use of space. It consists of core loading, winding, spot welding, finishing, testing, blanking and other processes.


Product Details


Advantages

01 During the winding process, there is zero waste of wire ends and copper wire, with automatic vertical rotor movement.

02 4-station flying fork winding, the defect rate is controlled at 0.5%.

03 Multiple winding modes, quick mold changeover, compatible with various products.

04 Large program storage capacity, reserved automation ports, high compatibility.

05 Can be linked with multiple units to achieve an automated production line.

06 Tension wire breakage alarm, program modification possible via touchscreen, easy to learn.


Equipment Parameters

  • Complete the Process

  • Winding for four products simultaneously.

  • Scope of Application

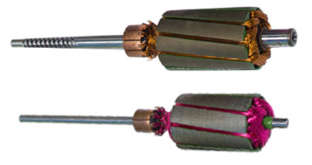

  • Outer diameter 17-42mm, stack height 20-60mm

  • Applicable Wire Diameter

  • 0.2-1.2mm

  • Winding Method

  • X, Y, Z, R, W five-axis winding method

  • Wire Layout

  • Automatic

  • Wire Head and Tail

  • Automatic servo control

  • Winding Speed

  • 3000rmp

  • Power

  • 15KW

  • Physical Dimension

  • 2100(L)*2400(W)*1900(H)mm




Product Tags: Flyer Winding Machine , rotor winding machine , automatic rotor winding machine
