Common Mode Inductor Winding Equipment

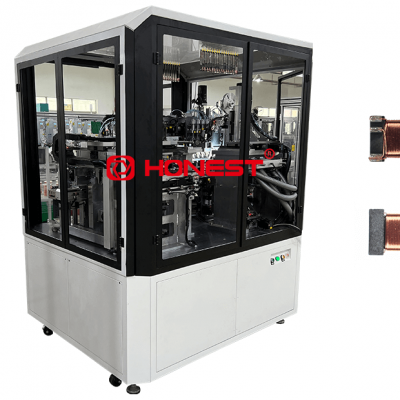

The common mode choke winding machine process includes automatic loading, winding, spot welding, and blanking. It can complete 2P, 4P, 6P, 8P and other specifications of pad cores, realize the integration of winding spot welding, suitable for 5819, 5817, 4532, 3225, 3216 size chip inductors, single and double wires, can be switched freely, It can be switched at will according to customer requirements.


Product Details



Advantages

01 10-axis simultaneous high-precision winding, high efficiency.

02 Equipped with Yaskawa motion controller and servo motor.

03 Independently develop precision winding, wiring and welding systems.

04 Adopt Japanese THK precision screw rod and guide rail to ensure the stability of the whole machine.

05 Can be equipped with CCD detection material and MES system

06 The equipment only needs to be manually loaded, and other processes are completed automatically.


Equipment Parameters


  • Production Efficiency

  • Up to 2000PCS/H

  • Spindle Speed

  • 1500MAX

  • Distance Between Shafts

  • 40MM

  • Voltage

  • 380V, 30A

  • Air Pressure

  • 0.5-0.7Mpa

  • Applicable Wire Diameter

  • 0.02-0.12

  • Dimension

  • 1700(L)*3000(W)*2000(H)mm
