Brushless Three Needle Winding Machine

Brushless Three Needle Winding Machine

The three needle winding machine integrates with the production line to achieve fully automated production, including material loading, winding, wire arrangement, transition wire winding, initial and terminal wire cutting, and material unloading. Before winding, the machine reads the stator code to enable full tracking and monitoring of the winding process, allowing for traceable production.

Product Details

Advantages

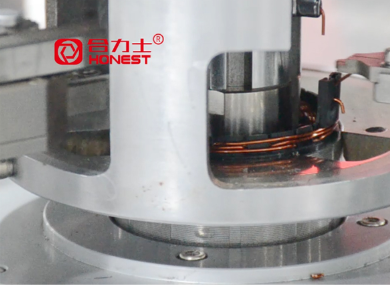

01 The winding head lifts and swings in the inner circle of the stator to realize the precision winding of the stator.

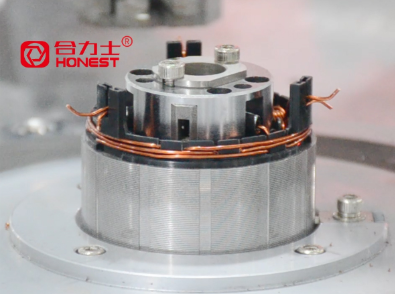

02 The thread trimming and clamping mechanism realizes the precise processing of the beginning thread and the end thread.

03 Hook line mechanism completes the transition line for a perfect fit.

04 Servo linkage control mode, control stator height and pole change angle.

05 Control the height position of the wire cutting and clamping, to achieve precise coordination in winding.

06 Can be linked with multiple units to realize an automated production line.

Equipment Parameters

HONEST Automation has been focusing on motor winding machines and motor assembly equipment for more than 18 years. It has a large number of needle winding machines, stator winding machines, and brushless motor winding machines. Its cooperative customers are well-known automobile and motor manufacturers. Welcome to consult for customized solutions and expert advice.
