NR SMD Choke Winding Machine

NR SMD Choke Winding Machine thumbnail-1
NR SMD Choke Winding Machine photo-1
US$ 100 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HONEST
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Shenzhen HONEST Intelligent Equipments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HONEST
Place of Origin China

NR SMD Choke Winding Machine

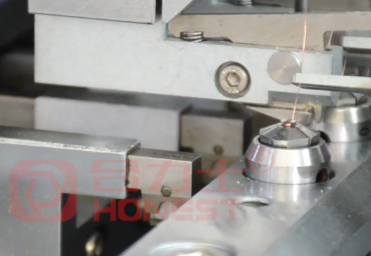

The Surface-Mount Device (SMD) choke winding machine automatically performs tasks such as feeding, winding, and tinning. It offers high efficiency, with multiple axes winding simultaneously, achieving a production capacity of 5000~6000 per hour. The product is mainly used in fields such as multifunctional mobile phones, LED lighting, communication equipment, portable and personal navigation systems, multimedia devices, and more.


Product Details

Advantages

01 Alpha winding method, dual-axis simultaneous winding, resulting in neater wire alignment.

02 Micro-amount flux coating and automatic preheating function reduce the probability of solder beads in the coil.

03 High-precision detection of tin surface, automatic tin addition function, precise control of tin surface height.

04 The tin furnace is separated from the main body of the machine, and the tin furnace shakes less during operation.

05 The tin surface is flattened, and the flatness and height of the product are controllable.

06 Yaskawa control system, stable and reliable operation.


Equipment Parameters

  • Production Efficiency

  • 5000~6000 per Hour

  • Product Specification

  • 201610, length 2.0-width 1.6, thickness 1.0

  • Applicable Wire Diameter

  • 0.05-0.16mm

  • Winding Method

  • α multi-axis winding

  • Wire End Treatment

  • Fixed Point Cutting

  • Power Supply

  • 220V, 30A

  • Air Pressure

  • 5-7kgf

  • Power

  • 5kw

  • Physical Dimensions

  • 1600(L)*1700(W)*2000(H)mm


Product Tags: choke winding machine , choke winding , inductor winding machine
