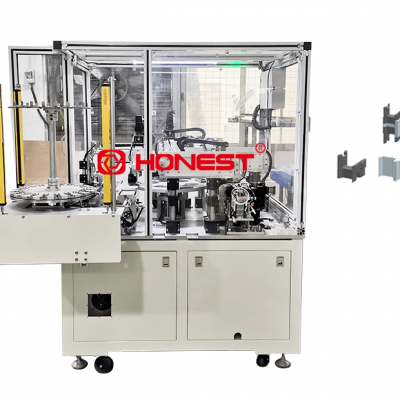

Stator Tooth Core Bobbin Winder Machine

Name: Stator Tooth Core Bobbin Winder Machine
Brand: HONEST
Availability: InStock

FOB Price

US$ 100 - 10000 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

HONEST

Place of Origin

China

Product Description

Stator Tooth Core Bobbin Winder Machine

The automatic winding machine for stator iron core frameworks is used for the assembly of stator iron core skeletons as well as for winding the stator iron cores. To prevent or minimize errors such as incorrect assembly, missed components, or reversed installation, process measures are employed. Each assembly point on the equipment is equipped with leak detection and mistake-proofing mechanisms, along with corresponding alerts. The equipment's process flow includes stator iron core frame assembly, fixture placement of stator iron core, stator winding.

Product Details

Advantages

01 Configure high-precision sensors.

02 The equipment is ergonomically designed.

03 Equipment operation is simple and easy to use.

04 The equipment provides real-time alerts for various incorrect operations and adverse conditions, etc.

05 The equipment is equipped with specialized safety light curtains and safety door locks.

06 The standalone machine has a reserved interface for automatic line docking, which can be later integrated into the stator assembly line.

Equipment Parameters

Efficiency	30S/PCS
Winding Speed	180 seconds per piece, related to product size and wire diameter; specific speed will depend on the given product.
Compatible Range	Two products
Yield Rate	≥99%
Utilization Rate	≥95%
Power Supply	AC380V/AC220V 50HZ
Air Pressure	0.4~0.7Mpa
Power	≈11kW
Physical Dimension	3700(L)2700(W)2000(H)mm
