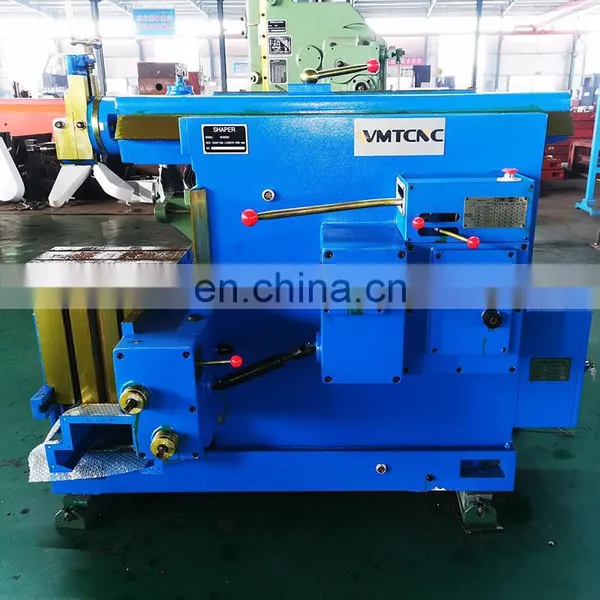

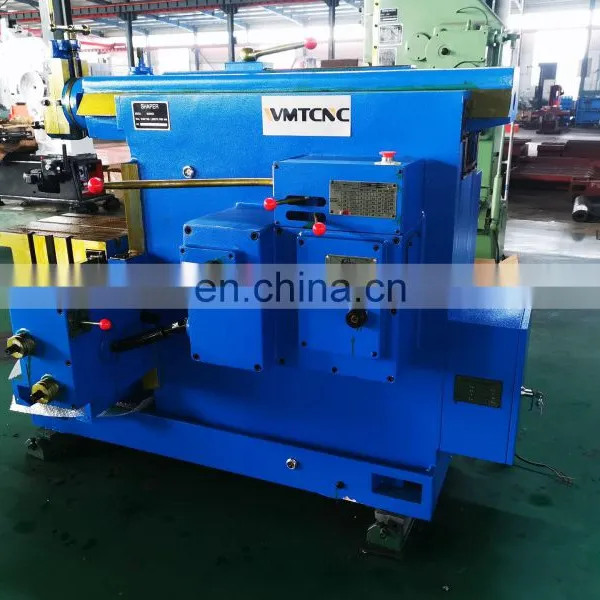

Heavy Duty BC6085 Horizontal Metal Shaping Mechanical Planer Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Maintenance Horizontal of Shaping Planer BC6066 Shaper MachineNegotiableMOQ: 1 -
Metal Shaper Machine Horizontal Gear Planer BC6050 Shaping MachineNegotiableMOQ: 1
-
High Precision Heavy Duty BC60100 Metal Mechanical Horizontal Shaping MachineNegotiableMOQ: 1
-
Planner BC6085 Horizontal Mechanical Metal Shaping Shaper MachineNegotiableMOQ: 1
-
BC6050 Small Horizontal Metal High Precision Mini Planner Shaper MachineNegotiableMOQ: 1
Product main features:
1. Shaper workbench can about rotational angle worktable moving structure with lateral and lifting; to planing inclined plane,thereby expanding the scope of use.
2. Feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.
3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.
4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.
5. Shaper with parking brake mechanism, so the speed of transformation. When starting machine tools and parking, the power supply can not be cut off.
2. Feed system of shaper with a cam mechanism, adjust the feed quantity. Change the amount of knife, very convenient.
3. Shaper in knife system overload safety device is installed, when due to careless handling or by external influence and cutting overload when, take the knife itself slipping, nondestructive parts which guarantees the machine to normal operation.
4. The sliding pillow and bed rails and with speed gear pair and the main rail sliding surface, lubrication oil pump has played for circulating lubrication.
5. Shaper with parking brake mechanism, so the speed of transformation. When starting machine tools and parking, the power supply can not be cut off.
Specification | BC6085 |
Maximum planing length | 630mm |
Maximum distance from the bottom of the working table | 385mm |
lateral travel | 630mm |
Vertical stroke | 360mm |
Tool frame travel | 120mm |
Sleeper reciprocating times (per minute) | 14/20/28/40/56/80 |
Main motor power | 3W |
The maximum size(width*thickness)of the handle | 20×30mm |
The size of the T groove in the center of the worktable | 18mm |
Angle of rotation | ±60°(toolpost) |
Workbench size | 630×400/660×400mm |
Shape size | 2000×1300×x150mm |
Machine tool weight (about) | 1750/1870KG |
Package dimensions | 2000/1300/1650mm |
