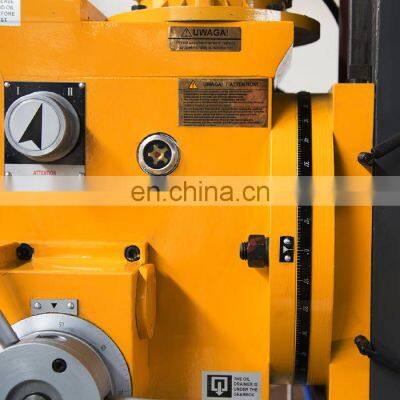

Drilling/Milling Machine ZAY7045FG
Milling ,drilling, tapping,boring,reaming;

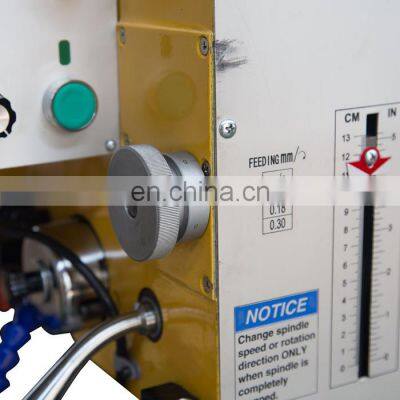

Head swivels ±90°verticaly; Spindle micro feed precision;

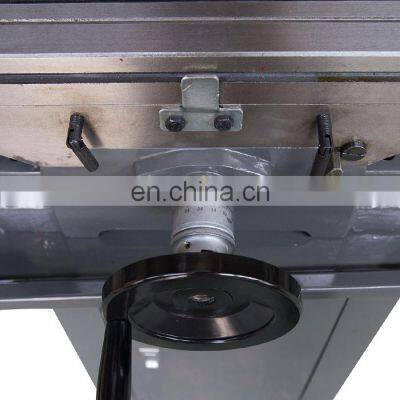

Adjustable gibs on table precision;
Accurate position ,strong rigidity , powerful cutting;
Gear-driven type and square column.
Specification | ZAY7032FG | ZAY7040FG | ZAY7045FG | ZAY7045M | |||
Drilling capacity | Φ32mm | Φ40mm | Φ45mm | Φ45mm | |||
Face milling capacity | Φ63mm | Φ80mm | Φ80mm | Φ80mm | |||
End milling capacity | Φ20mm | Φ32mm | Φ32mm | Φ32mm | |||
Distance from spindle nose to table | 450mm | 450mm | 450mm | 420mm | |||
Min.distance from spindle axis to column | 260mm | ||||||
Spindle travel | 130mm | ||||||
Spindle taper | MT3 MT4 or R8 | MT4 or R8 | |||||
Step of spindle speed | 6 steps | ||||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||||
60Hz | 95-1500 r.p.m | ||||||
Swivel angle of headstock (vertical) | ±45° | ||||||
Table size | 800×240mm | ||||||
Forward and backward travel of table | 175mm | ||||||
Left and right travel of table | 500mm | ||||||
Motor Power | 1.5kw | ||||||
N.W/G.W | 320/370kgs | 323/373kgs | 325/375kgs | ||||
Packing size | 770×880×1160mm | ||||||
