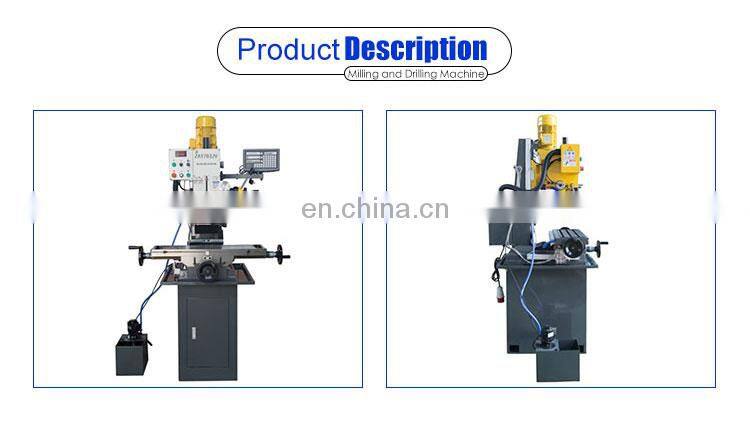

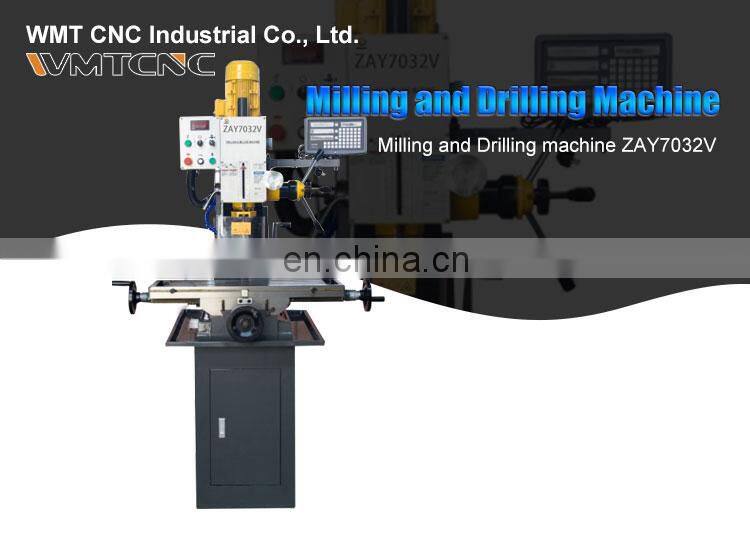

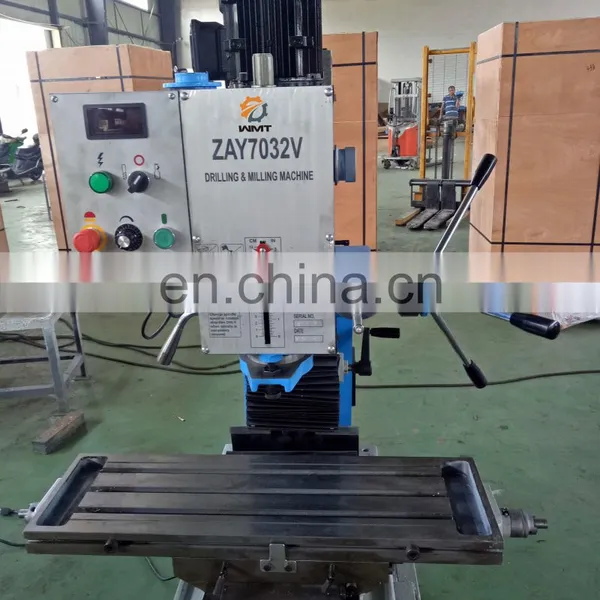

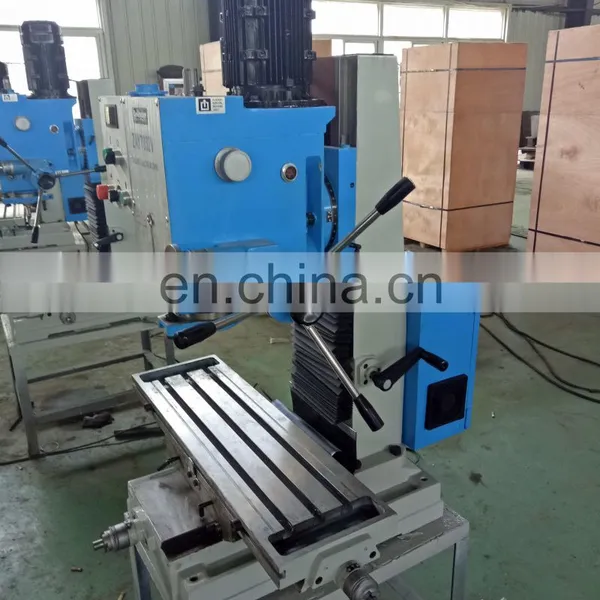

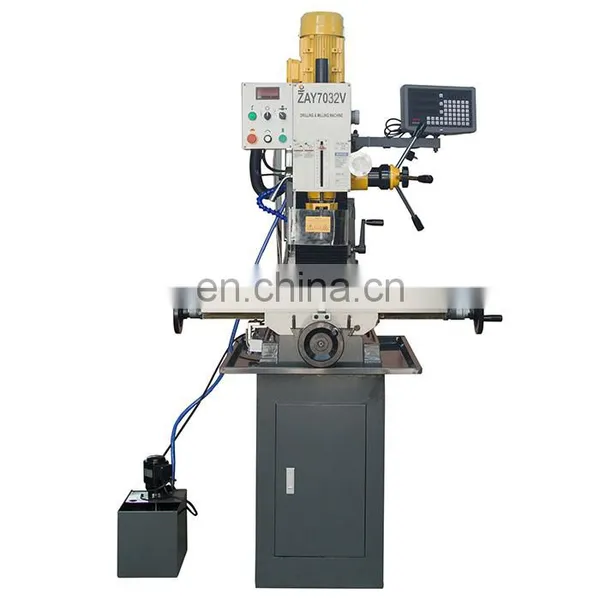

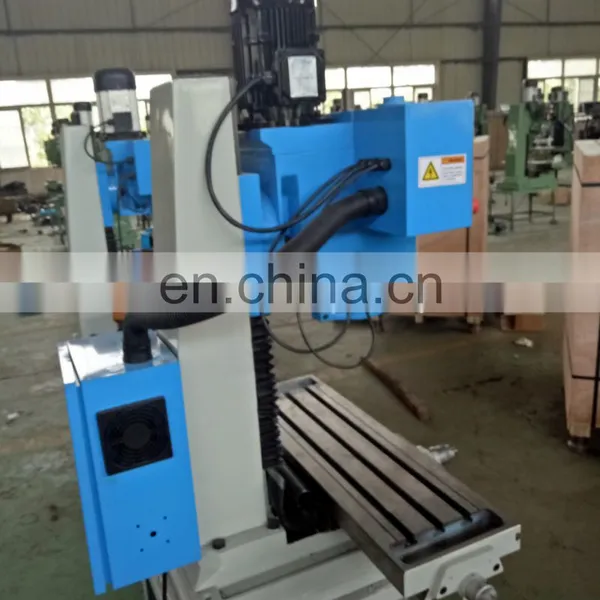

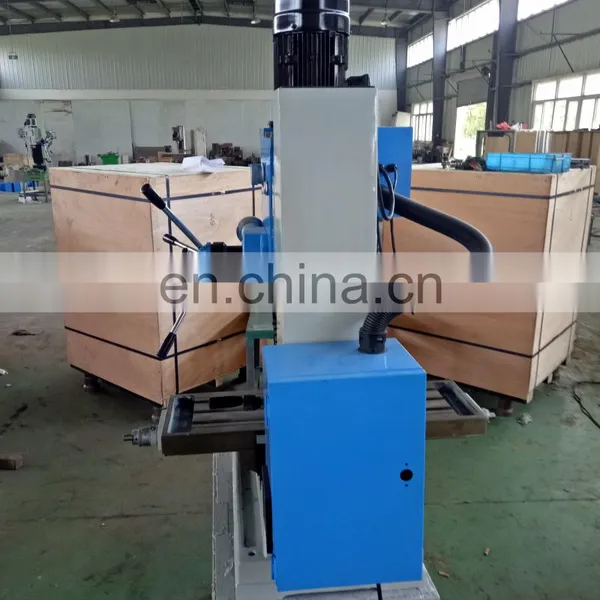

ZAY7032V Variable Speed Drilling Milling Machine for Metal Working

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Features: 1. Variable speed; 2. Milling , drilling , tapping , boring and reaming.

3. Head swivels ±90°vertically;

4. Micro feed precision;

5. Adjustable gibs on table precision;

6. Strong rigidity, powerful cutting and precise positioning.

Specification	ZAY7032V	ZAY7040V	ZAY7045V
Max.Drilling capacity	32mm	40mm	45mm
Max. face mill capacity	63mm	63mm	80mm
Max. end mill capacity	20mm	20mm	32mm
Distance from spindle nose to table	400mm	400mm	400mm
Min. distance from spindle axis to column	285mm	285mm	285mm
Spindle travel	130mm	130mm	130mm
Spindle taper	MT3,MT4.R8	MT3 or R8	MT3 or R8
Range of spindle speed(2 steps)	100-530, 530-2800rpm	100-530, 530-2800rpm	100-530, 530-2800rpm
Swivel angle of headstock(perpendicular)	±45°	±45°	±45°
Table size	800*240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power(DC)	1.1/1.1/1.5kw	1.1/1.1/1.5kw	1.1/1.1/1.5kw
N.W/G.W	325/375kgs	325/375kgs	325/375kgs
Packing size(LWH)	7708801160mm	7708801160mm	7708801160mm
Loading amount/20" container	36pcs	36pcs	36pcs
