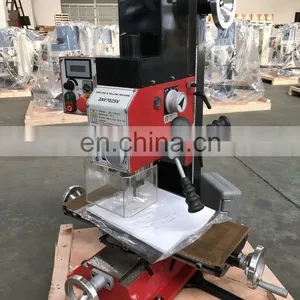

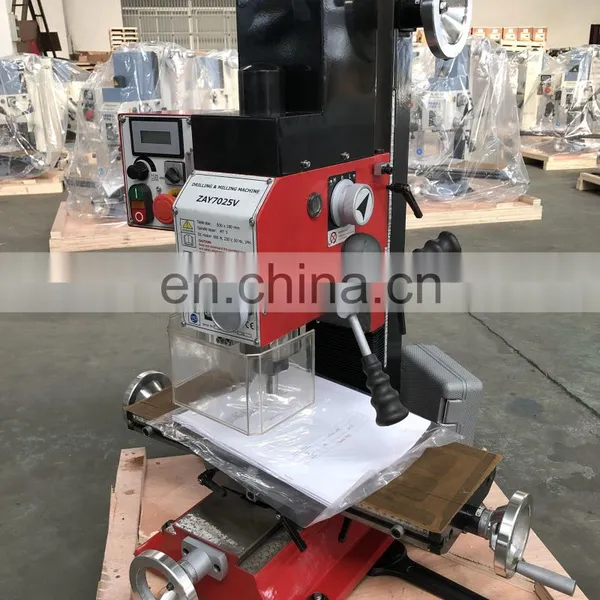

ZAY7025V Mini Milling and Drilling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7032G Gear Head Milling and Drilling Machine for Metal MachineNegotiableMOQ: 1 -
Table Milling Machine ZAY7045FG Drilling and Milling Machine With TappingNegotiableMOQ: 1
-
ZAY7032 Belt Driven Type and Round Column Milling Machine From ChinaNegotiableMOQ: 1
-
ZAY7032G Vertical Drilling and Milling Machine With Gear HeadNegotiableMOQ: 1
-
Hot Sale Vertical Drilling and Milling Machine ZAY7045FG/1 With High PrecisionNegotiableMOQ: 1
Product Description
Main Features:
High precision bored and honed milling head.

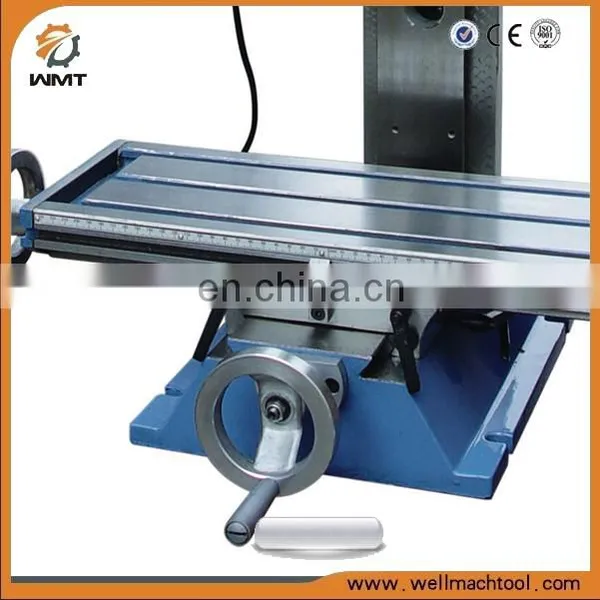

Precision ground worktable.
Tilting and swiveling head.

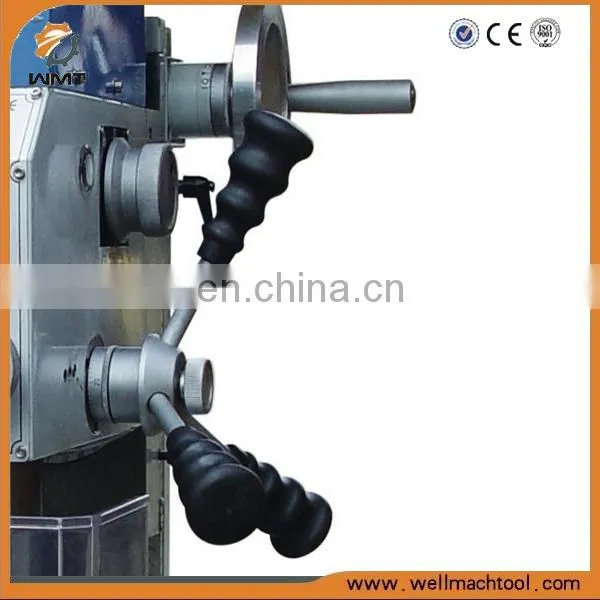

With Mirco-feed handwheel and lever down feed.
Adjustable gibs and stops on table.
Accurate position, strong rigidity, strong cutting power.
Gear drive, lower noise.
Specification:
Specification |
ZAY7020V |
ZAY7025V |
Drilling capacity |
20mm |
25mm |
Max. face mill capacity |
63mm |
80mm |
Max. end mill capacity |
20mm |
25mm |
Max. distance spindle to table |
355mm |
355mm |
Working table size |
500(700) x 180mm |
500(700) x 180mm |
Spindle rotary angle |
±45° |
±45° |
Spindle taper |
MT2 |
MT3 |
Spindle speed |
50-2250rpm |
50-3000rpm |
Sleeve stroke |
50mm |
50mm |
X-axis travel |
290/490mm |
290/490mm |
Y-axis travel |
180mm |
180mm |
Z-axis travel |
380mm |
360mm |
Motor power |
600w |
750w |
N.W/G.W |
118/138kgs (130/160kgs) |
130/158kgs (140/168kgs) |
Packing size (LxWxH) |
610(810)×560×880 mm |
620(770)×720×910mm |
Standard accessories:

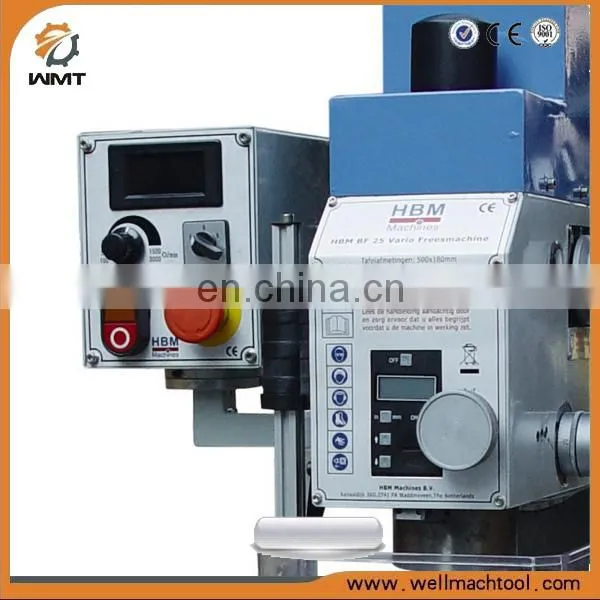

1. Speed display;
2. Halogen lamp;
3. Morse taper MT2/B16;
4. Draw in rod M10;
5. Drill chuck 0-13mm;
6. Tool box with tools
Optional accessories:
1. Coolant pump;
2. Milling vice;
3. Keyless chuck 1-13mm/B16; 4. Milling chuck;
5. End mill cutter;
6. Stand with chip tray;
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
