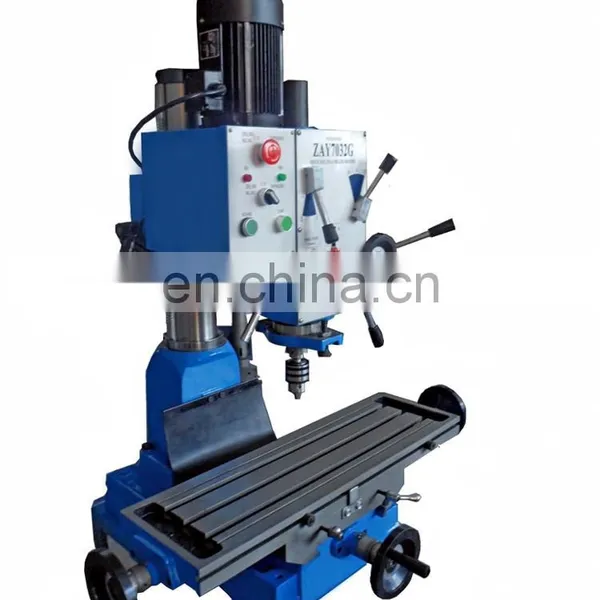

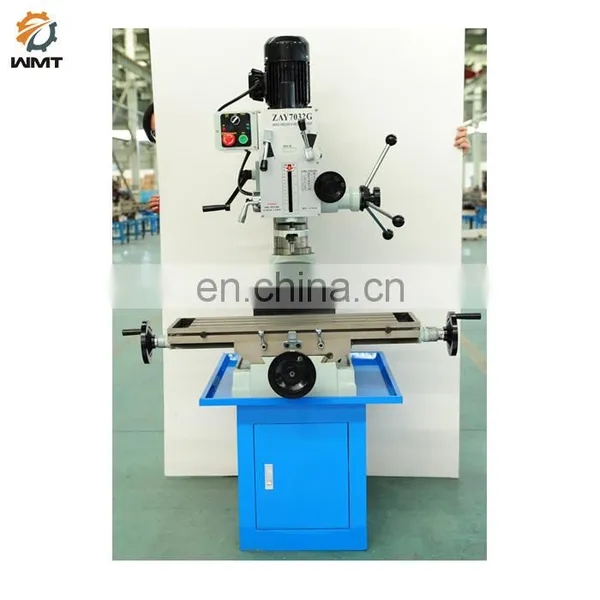

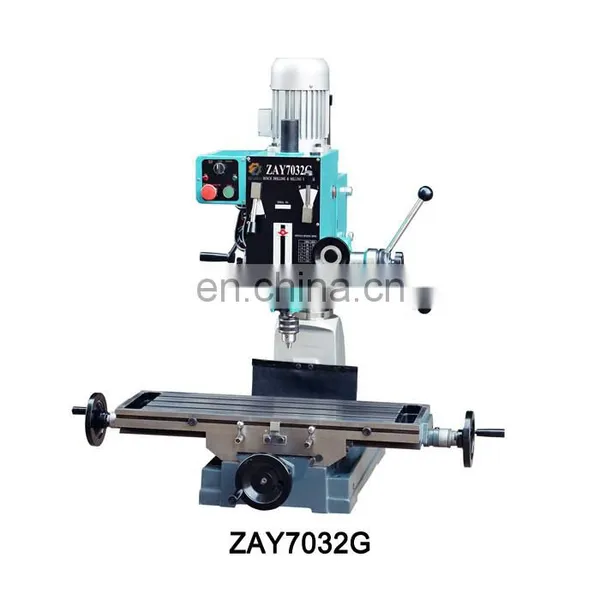

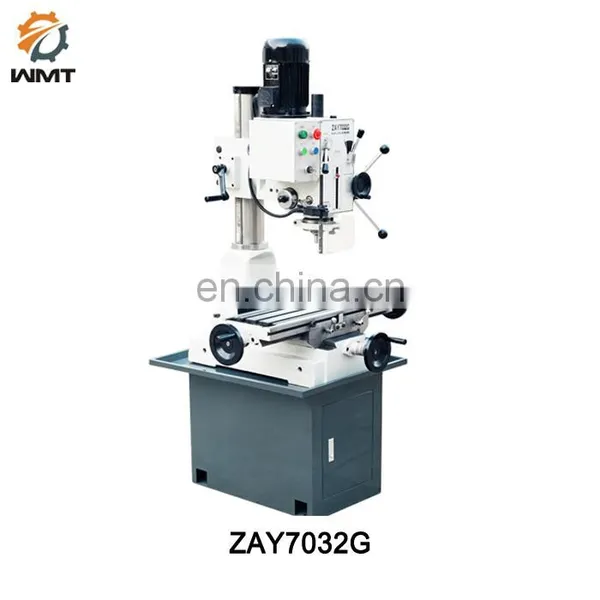

Anhui Mini Manual Milling and Drilling Machine ZAY7032G for Plastic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7032V Variable Speed Drilling Milling Machine for Metal WorkingNegotiableMOQ: 1 -
ZAY7045V Variable Speed Mini Milling and Drilling Machine for SaleNegotiableMOQ: 1
-
ZAY7025V Mini Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
ZAY7032G Gear Head Milling and Drilling Machine for Metal MachineNegotiableMOQ: 1
-
Table Milling Machine ZAY7045FG Drilling and Milling Machine With TappingNegotiableMOQ: 1
We will reply you in 24 hours
Modle: ZAY7032G milling and drilling machine
Model |
ZAY7032G |
ZAY7040G |
ZAY7045G |
||
Drilling capacity |
Φ32mm(1-1/4") |
Φ40mm(1-5/8") |
Φ45mm(1-3/4") |
||
Face milling capacity |
Φ63mm(2-1/2") |
Φ80mm(3-1/8") |
Φ80mm(3-1/8") |
||
End milling capacity |
Φ20mm(3/4") |
Φ32mm(1-1/4") |
Φ32mm(1-1/4") |
||
Distance from spindle nose to table |
440mm(17-1/4")(optional 670mm) |
||||
Min.distance from spindle axis to column |
272.5mm(10-3/4") |
||||
Spindle travel |
130mm(5-1/8") |
||||
Spindle taper |
MT3 or R8 |
MT4 or R8 |
MT4 or R8 |
||
Step of spindle speed |
6 steps |
||||
Range of spindle speed 50Hz |
80-1250 rpm |
||||
60Hz |
95-1500 rpm |
||||
Swivel angle of headstock horizontally |
360° |
||||
perpendicularly |
±90° |
||||
Table size |
800×240mm(31-1/2"x9-7/16") |
||||
Forward and backward travel of table |
175mm(6-7/8") |
||||
Left and right travel of table |
500mm(20") |
||||
Motor power |
0.75KW |
1.1KW |
1.5KW |
||
Net weight/gross weight |
315kg/365kg |
318kg/368kg |
318kg/368kg |
||
Packing size |
770×880×1160mm |
||||
Loading amount/20" container |
36pcs |
||||
Our company also have the Milling and drilling machines below(CNC milling machine XK7113 and milling machine ZX32G, pls click below).
