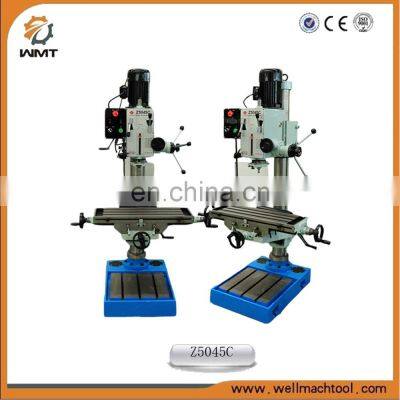

Vertical Drilling And Milling Machine Z5032 Z5040 Z5045 Z5032C Z5040C Z504C
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5045 Bench Drilling Machine With CE StandardNegotiableMOQ: 1 -
Drilling Machines Z5045/1 29 x 8 Electric Drill Machine - 220Vac, 3-phase, 60HzNegotiableMOQ: 1
-
Z5045/1 Vertical Drilling Machine With CE StandardNegotiableMOQ: 1
-
Vertical Drilling Machine Price for Metal Z5045-1 With CENegotiableMOQ: 1
-
Z5045-1 Auto Feed Vertical Drilling Machine With CENegotiableMOQ: 1
We will reply you in 24 hours

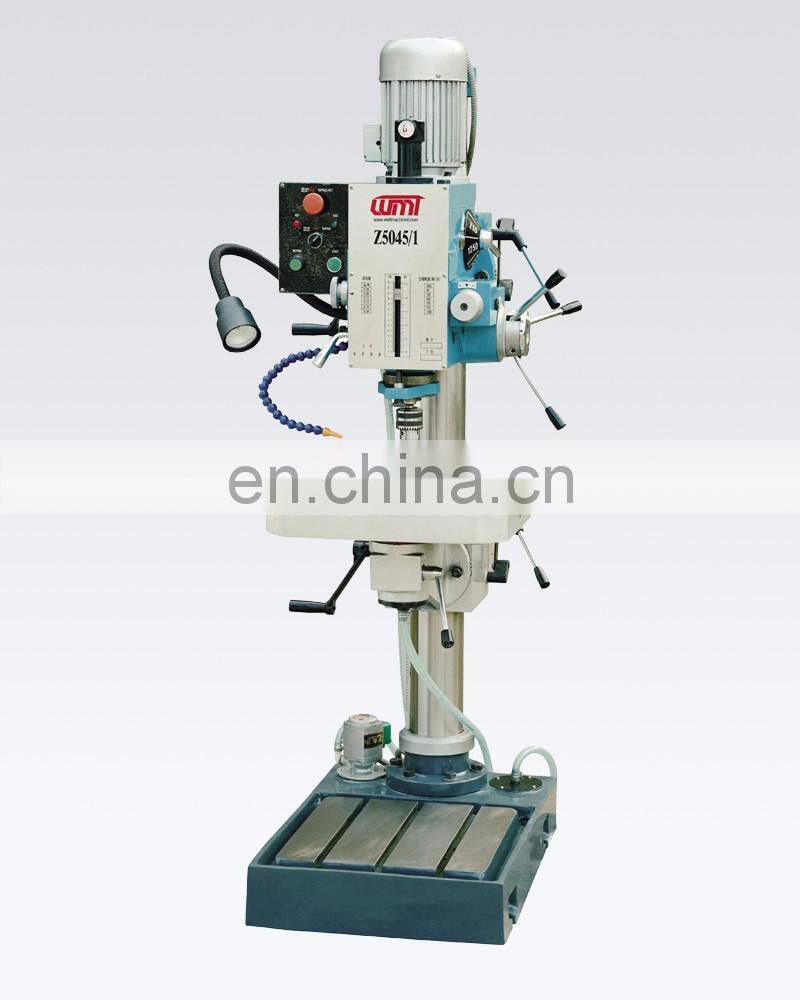

Mordle: Z5045-1 milling and drilling machine
Item | Z5040/Z5040E |
Max.drilling capacity(steel) | 40mm |
Max.tapping capacity(Iron/steel) | 24/20mm |
Spindle taper | MT4 |
Worktable size | 560×560mm |
Dimensions of base | 730×500mm |
Spindle travel | 180mm |
Spindle center to column surface | 350mm |
Spindle nose to worktable | 770mm |
Spindle nose to base | 1210mm |
Column diameter | 150mm |
Max. swivel angle of table | 90 |
Spindle speeds (2 step motor) | 18steps:50-1450rpm |
Spindle power down feed | 0.1/0.2 mm/r |
Cooling motor | 60W |
Motor | 1.5kw |
Machine weight (Net/Gross) | 550/600KG |
Packing size(L×W×H) | 2230×580×110mm |
Standrad accessories:
1. Drill chuck 1-13mm/B16;
2. Draw bar;
3. Allen wrenchs;
4. Wedge;
5.Tie rod
Optional accessories:
1.Steel stand and chip tray ; 2. Halogen lamp;
3.Coolant system;
4. 58pcs clamping kits;
5. Face milling cutter diameter 63mm; 6.Milling chuck(8pcs/set);
7.DRO(2-axis or 3-axis)(for FG and FG-1 serials) ;
8.H/V precision rotary table HV-150mm
9.Table power feed X axis (Except for belt driven type);
10. Double speed motor
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
