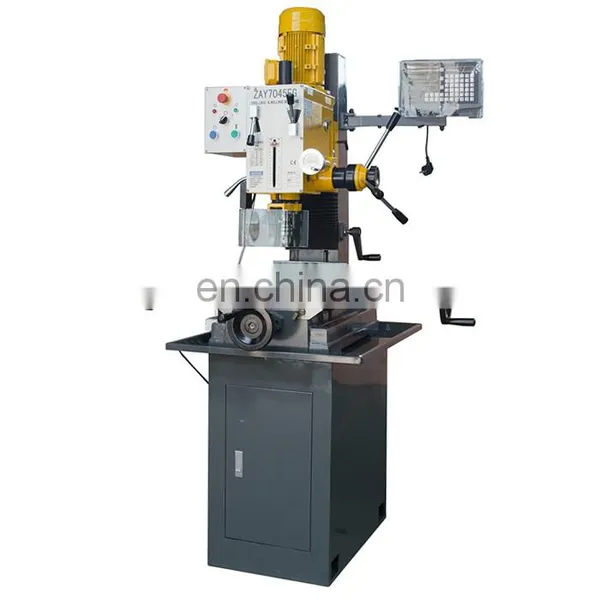

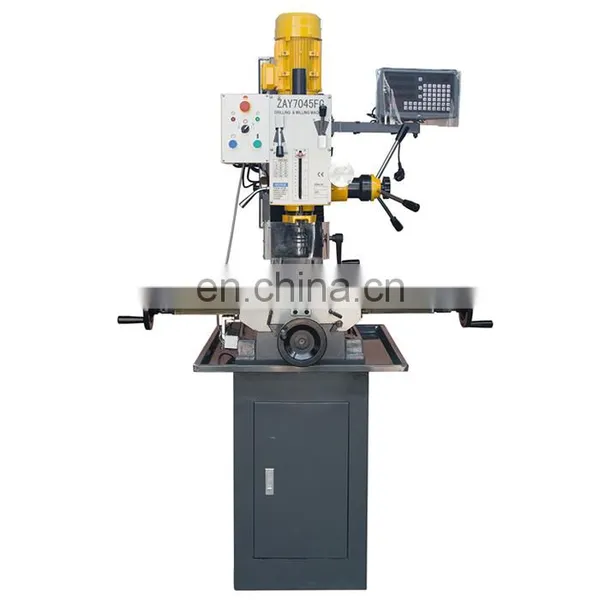

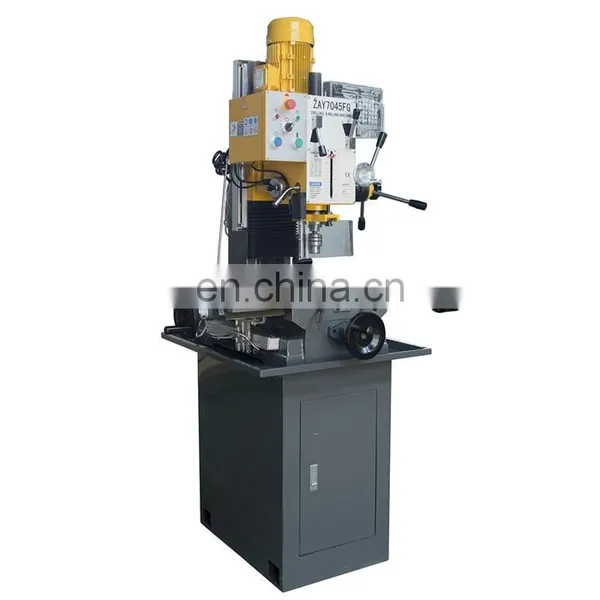

ZAY7045FG Gear Head Drilling and Milling Machine With Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anhui Mini Manual Milling and Drilling Machine ZAY7032G for PlasticNegotiableMOQ: 1 -
ZAY7032V Variable Speed Drilling Milling Machine for Metal WorkingNegotiableMOQ: 1
-
ZAY7045V Variable Speed Mini Milling and Drilling Machine for SaleNegotiableMOQ: 1
-
ZAY7025V Mini Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
ZAY7032G Gear Head Milling and Drilling Machine for Metal MachineNegotiableMOQ: 1
Milling /Drilling Machine ZAY7045FG
1. Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed ;
2. Milling ,drilling, tapping,boring,reaming;
3. Head swivels ±90°verticaly;
4. Spindle micro feed precision;
5. Adjustable gibs on table precision;
6. Accurate position ,strong rigidity , powerful cutting;
7. Gear-driven type and square column.
Specification | ZAY7045FG |
Drilling capacity | Φ45mm |
Face milling capacity | Φ80mm |
End milling capacity | Φ32mm |
Distance from spindle nose to table | 450mm |
Min.distance from spindle axis to column | 260mm |
Spindle travel | 130mm |
Spindle taper | MT4 or R8 |
Step of spindle speed | 6 steps |
Range of spindle speed 50Hz | 80-1250 r.p.m |
60Hz | 95-1500 r.p.m |
Swivel angle of headstock (vertical) | ±90° |
Table size | 800×240mm |
Forward and backward travel of table | 175mm |
Left and right travel of table | 500mm |
Motor Power | 1.5kw |
N.W/G.W | 323/373kgs |
Packing size | 770×880×1160mm |
