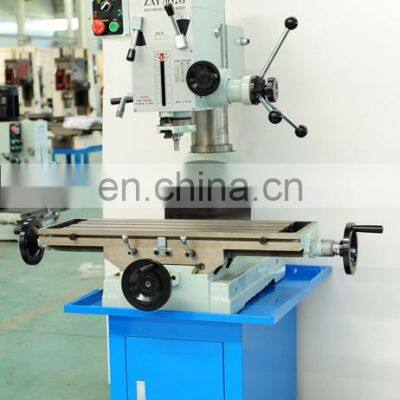

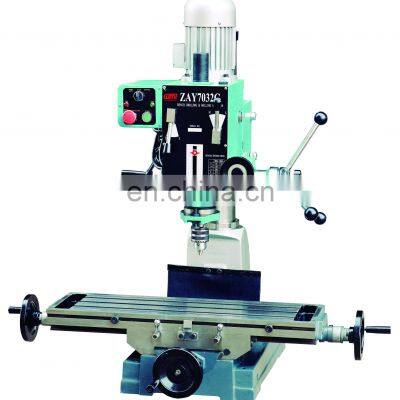

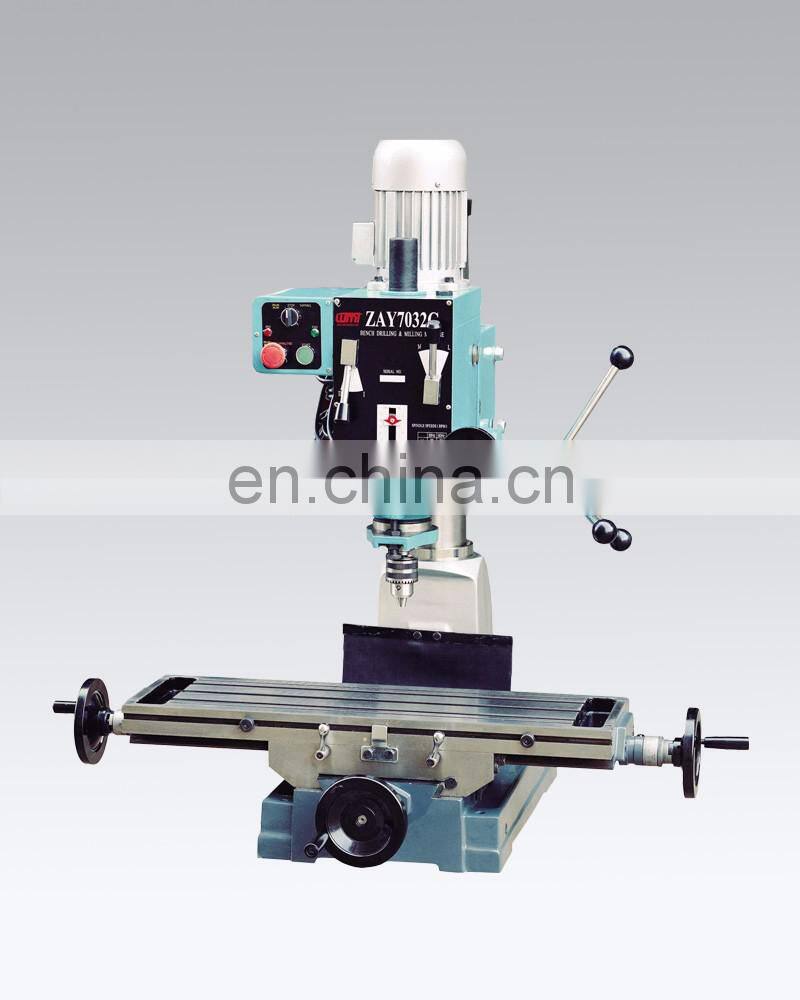

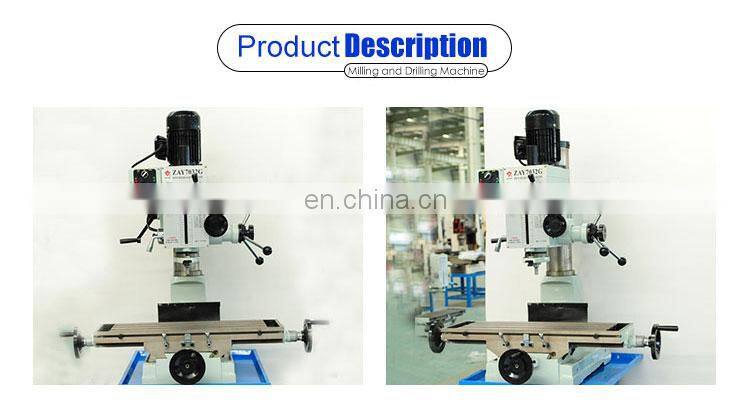

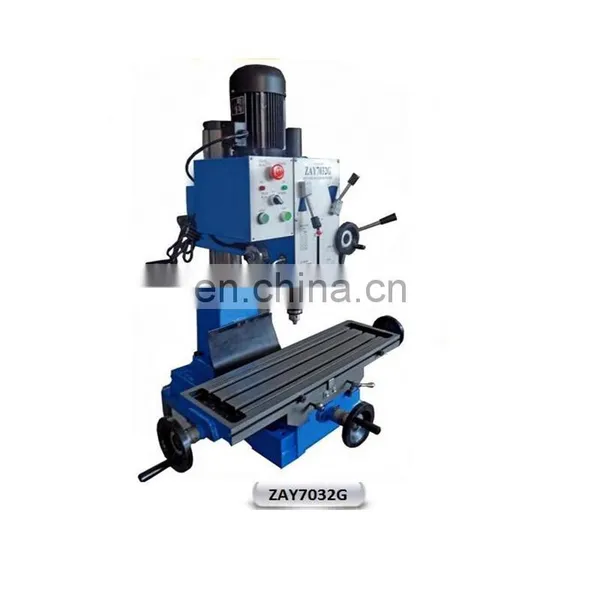

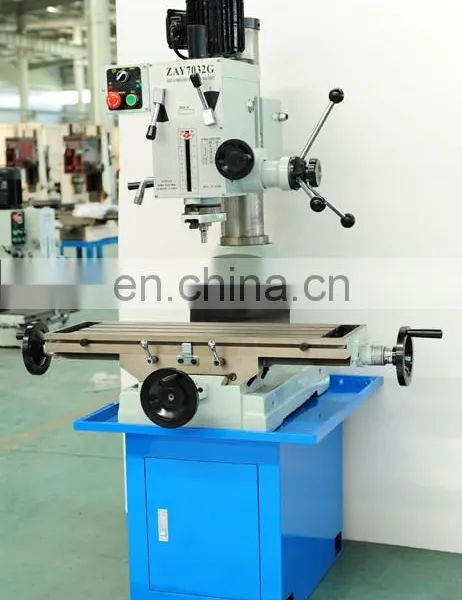

Name: ZAY7032G Vertical Drilling and Milling Machine With Gear Head
SKU: 171485503

ALL CATEGORIES

ZAY7032G Vertical Drilling and Milling Machine With Gear Head

Send Inquiry to This Supplier

Mr. Jack Xu

Sales Manager

4Yrs

Jingjiang Fuji Technology Co., Ltd.

Shanghai, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Model	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	Φ32mm(1-1/4")	Φ40mm(1-5/8")	Φ45mm(1-3/4")
Face milling capacity	Φ63mm(2-1/2")	Φ80mm(3-1/8")	Φ80mm(3-1/8")
End milling capacity	Φ20mm(3/4")	Φ32mm(1-1/4")	Φ32mm(1-1/4")
Distance from spindle nose to table	440mm(17-1/4")(optional 670mm)
Min.distance from spindle axis to column	272.5mm(10-3/4")
Spindle travel	130mm(5-1/8")
Spindle taper	MT3 or R8	MT4 or R8	MT4 or R8
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250 rpm
60Hz	95-1500 rpm
Swivel angle of headstock horizontally	360°
perpendicularly	±90°
Table size	800×240mm(31-1/2"×9-7/16")
Forward and backward travel of table	175mm(6-7/8")
Left and right travel of table	500mm(20")
Motor power	0.75KW	1.1KW	1.5KW
Net weight/gross weight	315kg/365kg	318kg/368kg	318kg/368kg
Packing size	770×880×1160mm
Loading amount/20" container	36pcs

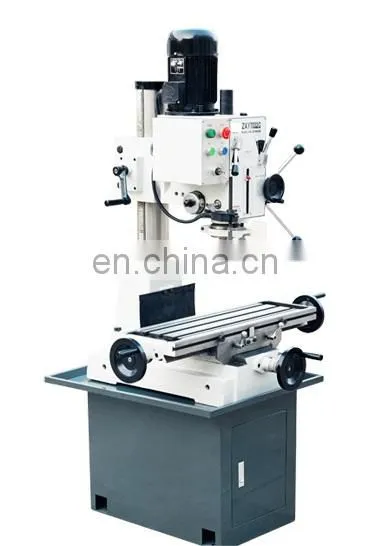

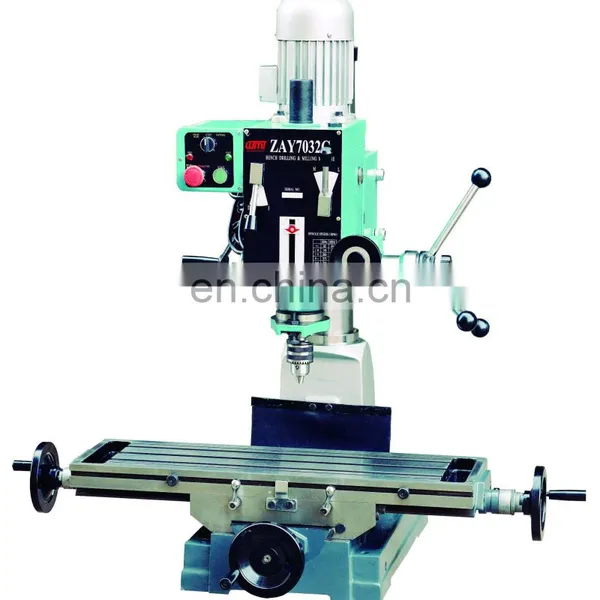

ZAY7032G Vertical Drilling and Milling Machine With Gear Head
