ZAY7032 Belt Driven Type and Round Column Milling Machine From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7032G Vertical Drilling and Milling Machine With Gear HeadNegotiableMOQ: 1 -
Hot Sale Vertical Drilling and Milling Machine ZAY7045FG/1 With High PrecisionNegotiableMOQ: 1
-
ZAY7045M Universal Milling Machine Price With Rotary WorktableNegotiableMOQ: 1
-
ZAY7045M Rotary Table Vertical Milling Machine With CE Certification From ChinaNegotiableMOQ: 1
-
Vertical Drilling And Milling Machine Z5032 Z5040 Z5045 Z5032C Z5040C Z504CNegotiableMOQ: 1
Model: ZAY7032 milling machine
Specification:
Specification |
ZAY7032 |
ZAY7040 |
ZAY7045 |
||||
Drilling capacity |
Φ32mm(1-1/4") |
Φ40mm(1-5/8") |
Φ45mm(1-3/4") |
||||
Face milling capacity |
Φ63mm(2-1/2") |
Φ80mm(3-1/8") |
Φ80mm(3-1/8") |
||||
End milling capacity |
Φ20mm(3/4") |
Φ32mm(1-1/4") |
Φ32mm(1-1/4") |
||||
Distance from spindle nose to table |
440mm(17-1/4")(optional 670mm) |
||||||
Min.distance from spindle axis to column |
272.5mm(10-3/4") |
||||||
Spindle travel |
130mm(5-1/8") |
||||||
Spindle taper |
MT3 or R8 |
MT4 or R8 |
|||||
Step of spindle speed |
6 steps |
||||||
Range of spindle speed 50Hz |
80-1250 r.p.m |
||||||
60Hz |
95-1500 r.p.m |
||||||
Swivel angleof headstock (horizontally) |
360° |
||||||
perpendicularly |
±90° |
||||||
Table size |
800×240mm(31-1/2"x9-7/16") |
||||||
Forward and backward travel of table |
175mm(6-7/8") |
||||||
Left and right travel of table |
500mm(20") |
||||||
Motor Power |
0.75kw |
1.1kw |
1.5kw |
||||
Net weight/gross weight |
315kg/365kg |
318kg/368kg |
|||||
Packing size |
770×880×1160mm |
||||||
Loading amount/20" container |
36pcs |
||||||

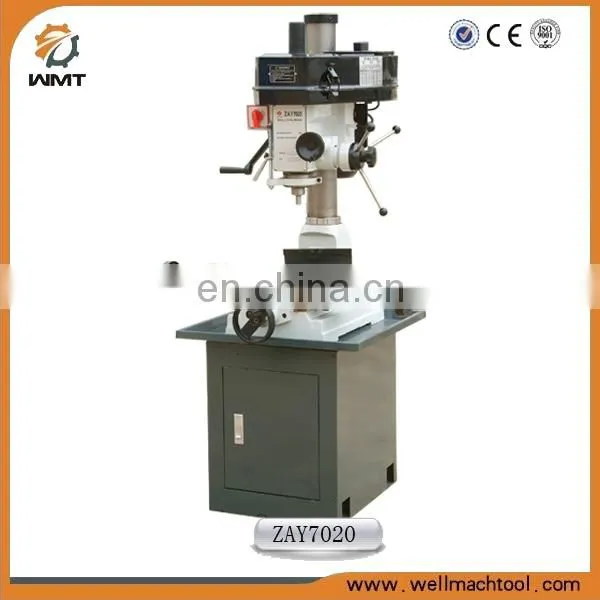

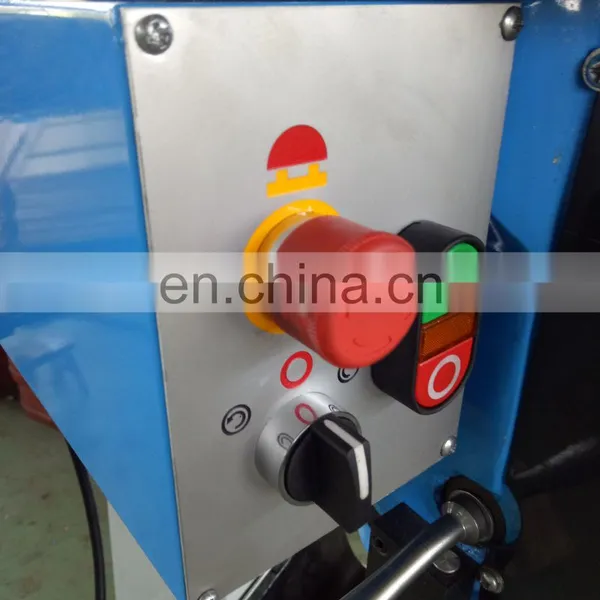

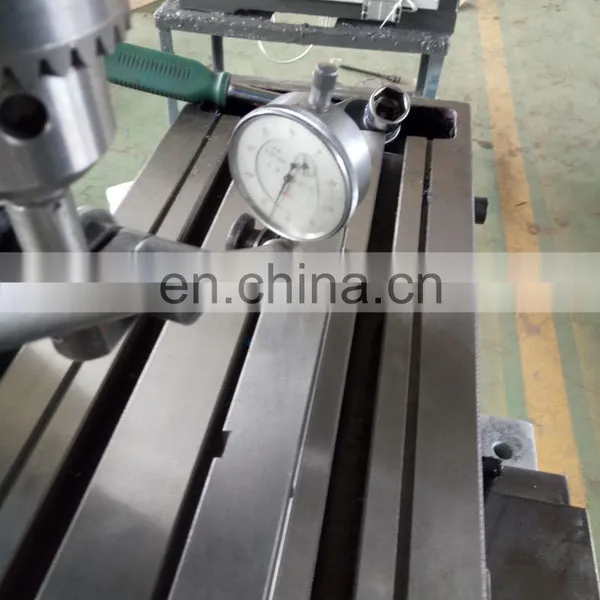

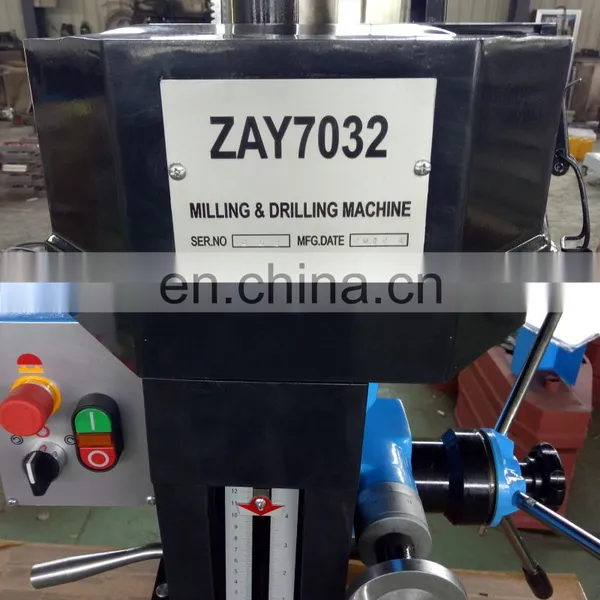

Product picture:
