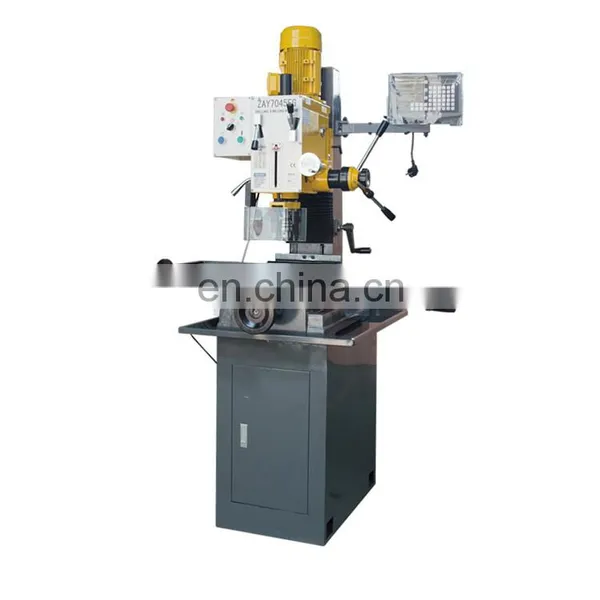

Table Milling Machine ZAY7045FG Drilling and Milling Machine With Tapping
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7032 Belt Driven Type and Round Column Milling Machine From ChinaNegotiableMOQ: 1 -
ZAY7032G Vertical Drilling and Milling Machine With Gear HeadNegotiableMOQ: 1
-
Hot Sale Vertical Drilling and Milling Machine ZAY7045FG/1 With High PrecisionNegotiableMOQ: 1
-
ZAY7045M Universal Milling Machine Price With Rotary WorktableNegotiableMOQ: 1
-
ZAY7045M Rotary Table Vertical Milling Machine With CE Certification From ChinaNegotiableMOQ: 1
Product Description
Product Application:
1. Step speed changed cyclically and spindle auto-feeding and cyclic change of feeding speed;
2. Milling, drilling, tapping, boring, reaming;
3. Head swivels ±90°verticaly;
4. Spindle micro feed precision;
5. Adjustable gibs on table precision;
6. Accurate position, strong rigidity, powerful cutting;
7. Gear-driven type and square column.
Specification |
ZAY7045FG |
Drilling capacity |
Φ45mm |
Face milling capacity |
Φ80mm |
End milling capacity |
Φ32mm |
Distance from spindle nose to table |
450mm |
Min.distance from spindle axis to column |
260mm |
Spindle travel |
130mm |
Spindle taper |
MT4 or R8 |
Step of spindle speed |
6 steps |
Range of spindle speed 50Hz |
80-1250 r.p.m |
60Hz |
95-1500 r.p.m |
Swivel angle of headstock (vertical) |
±90° |
Table size |
800×240mm |
Forward and backward travel of table |
175mm |
Left and right travel of table |
500mm |
Motor Power |
1.5kw |
N.W/G.W |
323/373kgs |
Packing size |
770×880×1160mm |

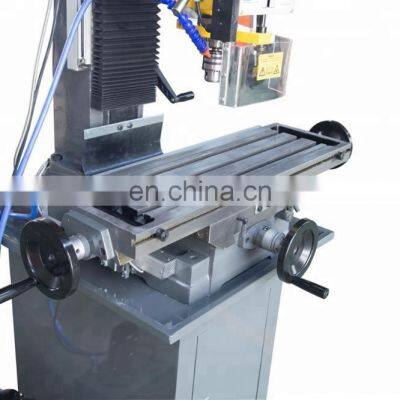

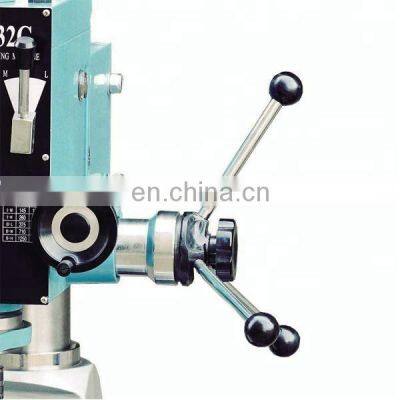

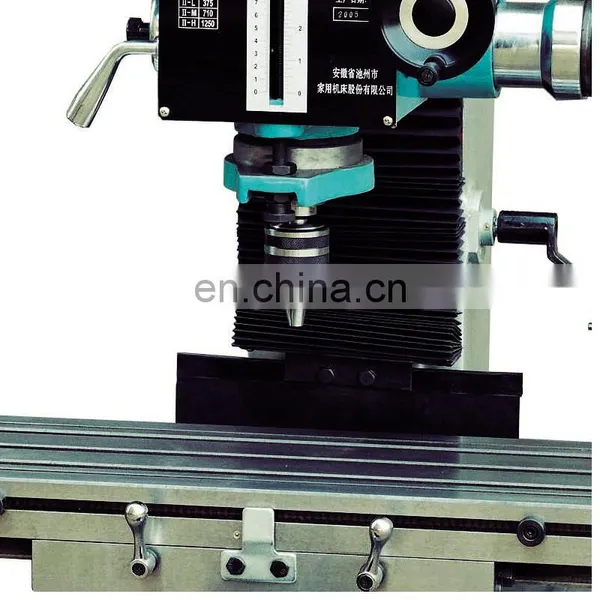

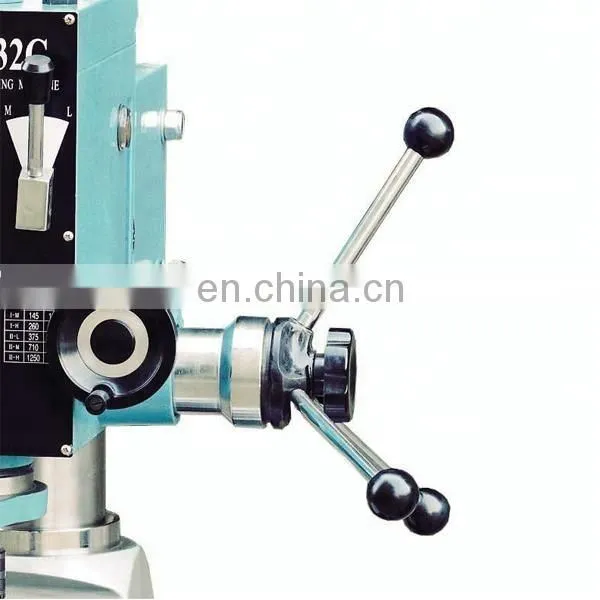

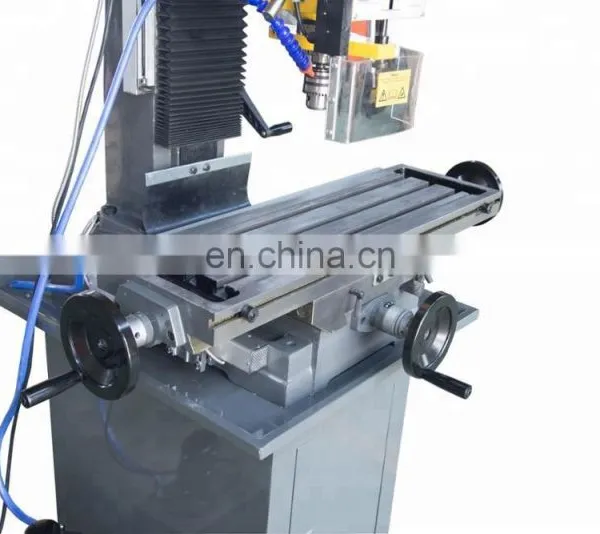

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
