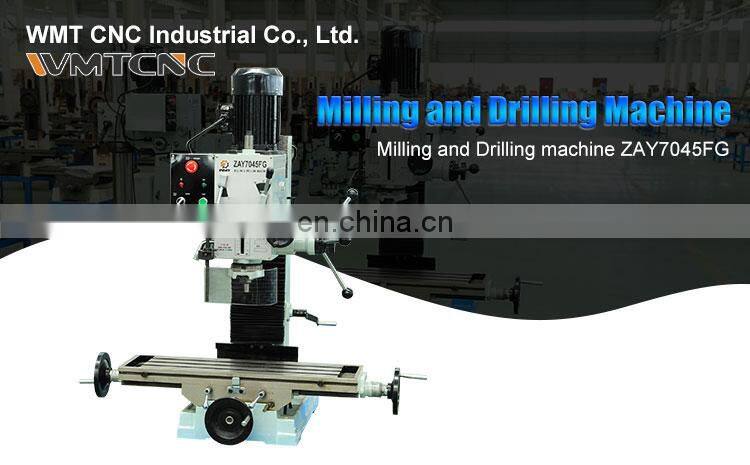

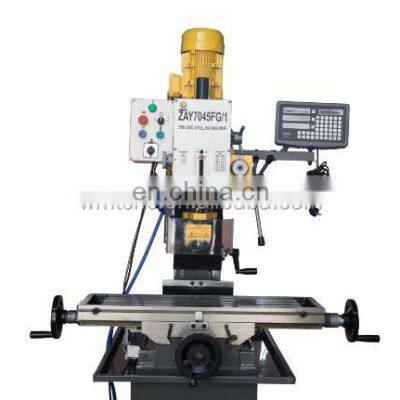

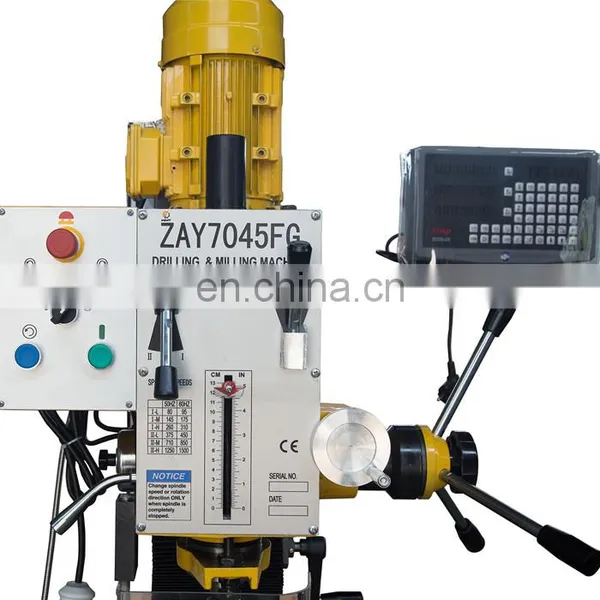

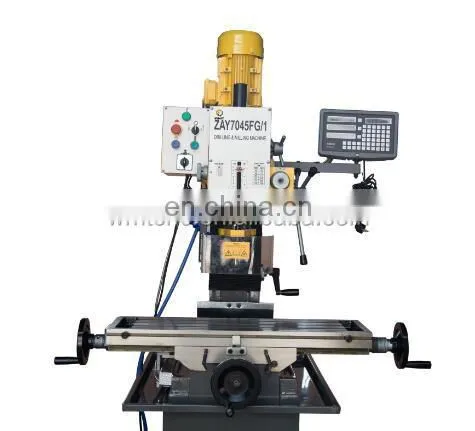

ZAY7045FG Factory Direct Sale Multi-purpose Combo Drilling and Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5045C/1 Spindle Auto-feed Vertical Drilling Machine With CE CertificationNegotiableMOQ: 1 -
ZAY7045FG Milling and Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
ZAY7045FG Vertical Milling and Drilling Machine With CE Standard From ChinaNegotiableMOQ: 1
-
ZAY7045V Variable Speed Milling and Drilling Machine With CE StandardNegotiableMOQ: 1
-
ZAY7045FG Gear Head Drilling and Milling Machine With Metal WorkingNegotiableMOQ: 1

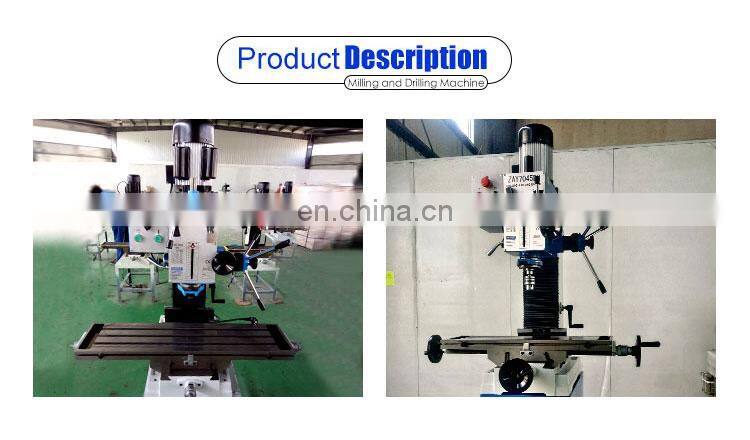

Product Description

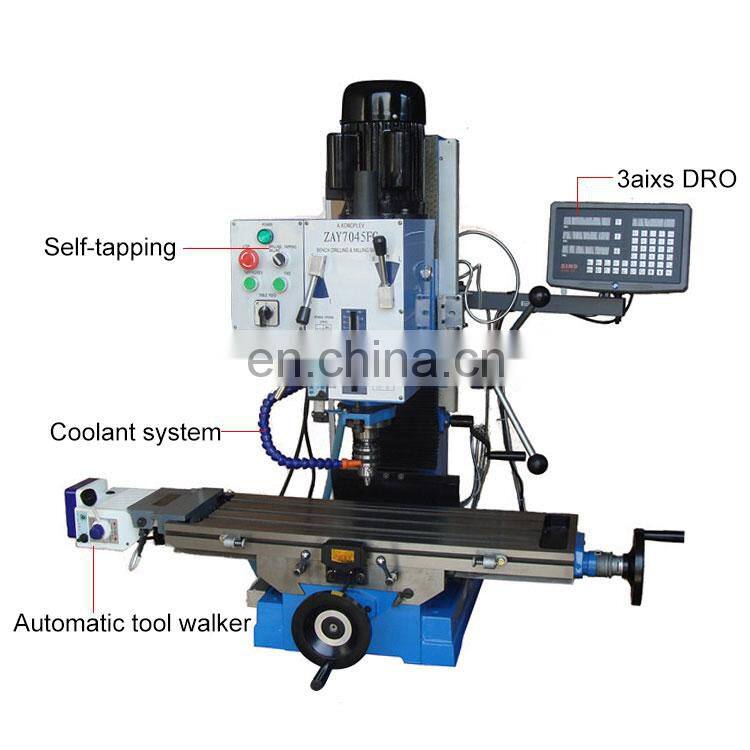

Features:
1. Milling drilling,tapping boring, reaming;
2. Head swivels ±90° verticaly;
3. Spindle micro feed precisely;
4. Adjustable gibs on table precision;
5. Accurate position, strong rigidity,powerful cutting.
Model | ZAY7032FG | ZAY7045FG | ZAY7045M | ||
Max Face mill capacity | Φ32mm(1-1/4") | Φ45mm(1-3/4") | |||
Max End mill capacity | Φ63mm(2-1/2") | Φ80mm(3-1/8") | |||
End milling capacity | Φ20mm(3/4") | Φ32mm(1-1/4") | |||
Max.distance from spindle nose to table | 450mm(17-3/4") | 450mm(17-3/4") | 420mm(17-3/4") | ||
Min.distance from spindle axis to column | 260mm(10-1/4") | ||||
Spindle travel | 130mm(5-1/8") | ||||
Spindle taper | MT3 or R8 | MT4 or R8 | |||
Step of spindle speed | 6 steps | ||||
Range of spindle speed 50Hz | 80-1250 rpm | ||||
60Hz | 95-1500 rpm | ||||
Swivel angleof headstock(perpendicularly) | ±90° | ||||
Table size | 800mm×240mm(31-1/2"×9-1/2" ) | ||||
Forward and backward travel of table | 175mm(6-7/8") | ||||
Left and right travel of table | 500mm(20") | ||||
Motor Power | 1.5KW | ||||
Net weight/gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg | ||
Packing size | 880×770×1160mm | ||||

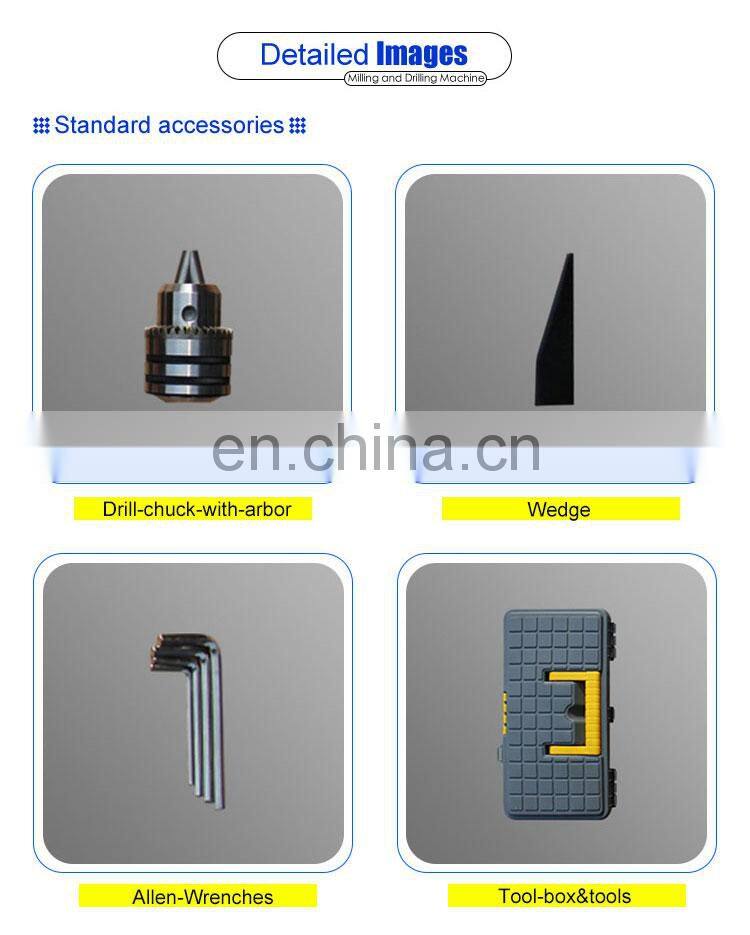

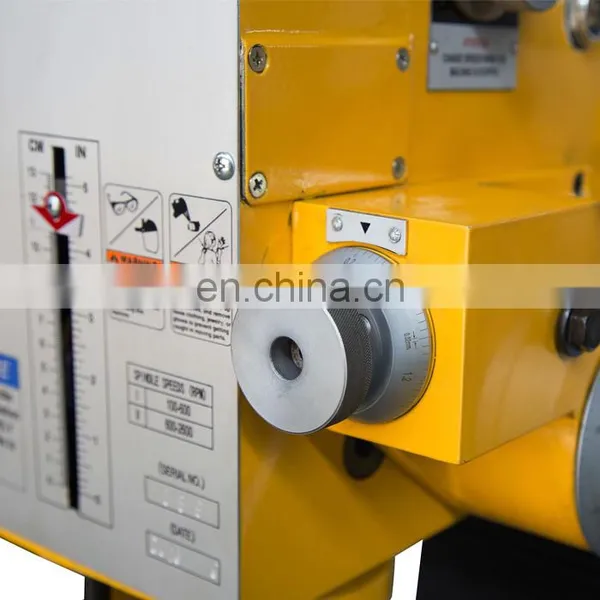

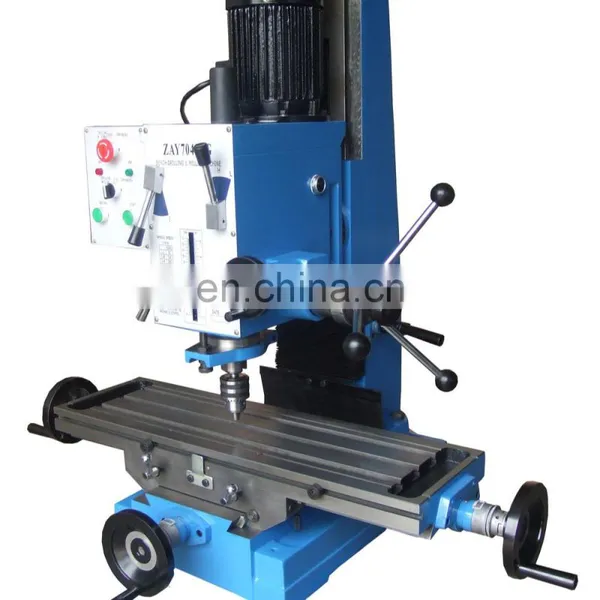

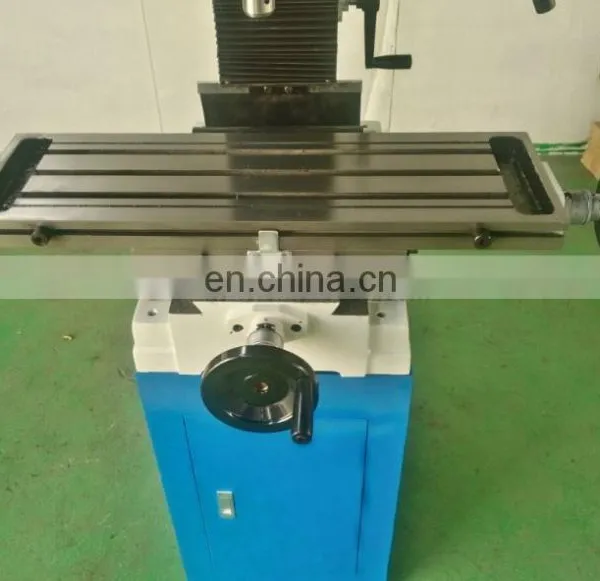

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
