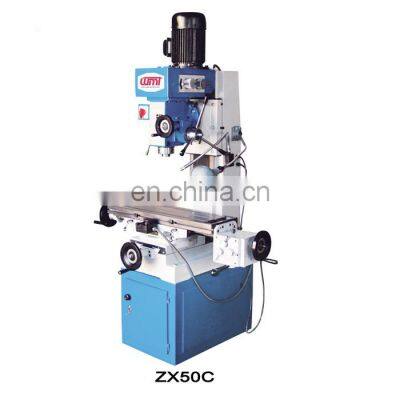

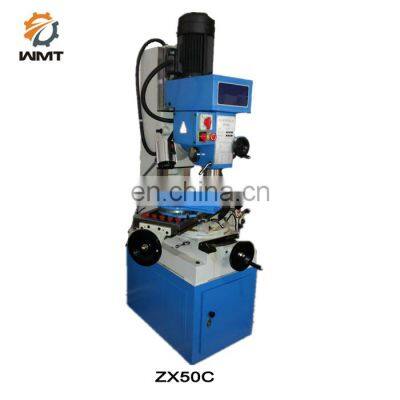

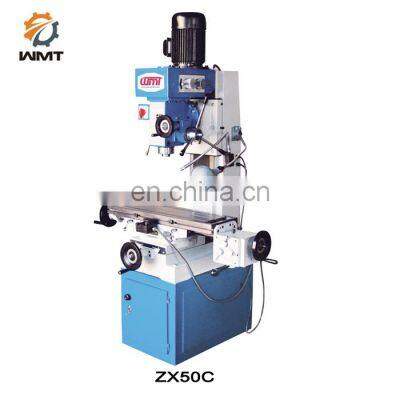

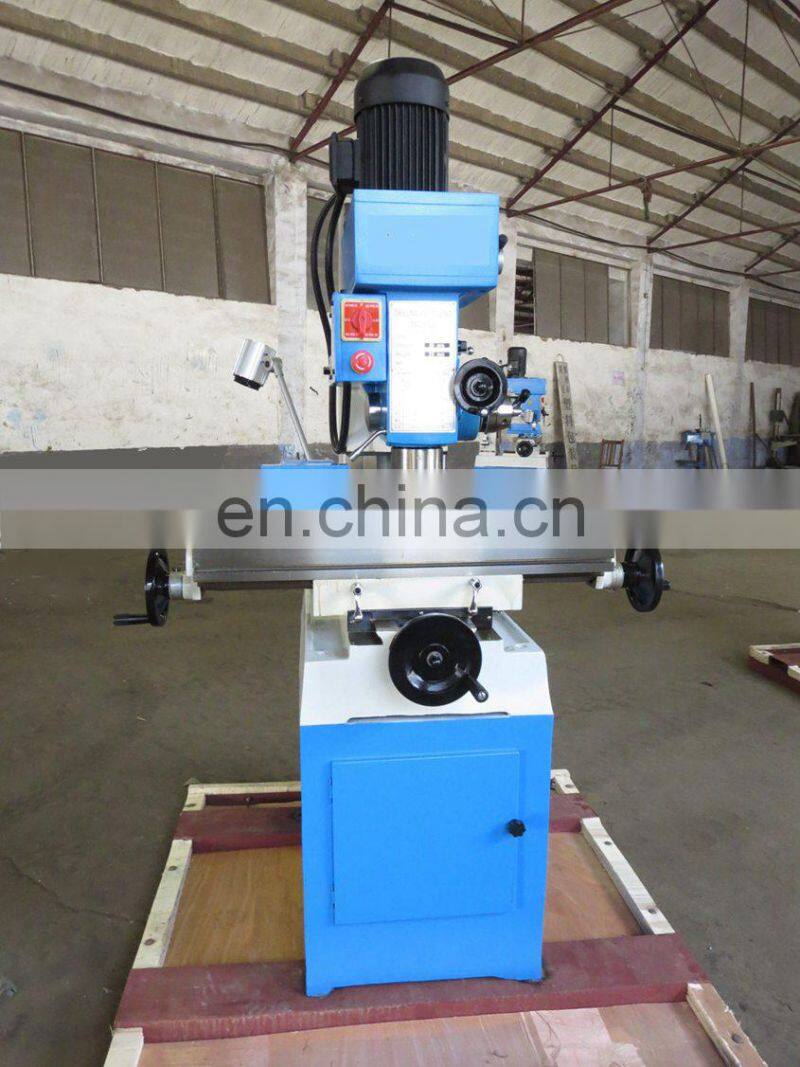

ZX50C mini drilling and milling machine with 50mm drilling diameter capacity

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

Milling drilling,tapping boring, reaming Head swivels ±90° verticaly Accurate position, strong rigidity,powerful cutting

1) Specification for ZX50C series milling and drilling

Specification	ZX50C
Max.drilling dia.	Φ 50mm
Max.end milling capacity	Φ 100mm
Max.face milling capacity	Φ 32mm
Spindle taper	MT4/R8
Spindle speeds range	(8 steps) 115-1750rpm
Spindle travel	120mm
Max.distance from spindle nose to worktable	380mm
Dia. of column	Square
Table size	800×240mm
Table travel	400×230mm
Main motor power	1.5kw
N.W/G.W	470/550kgs
Packing size(mm) 1 sets	1050×1050×1850
Packing size(mm) 2 sets	1100×1150×1850

2) Machine details

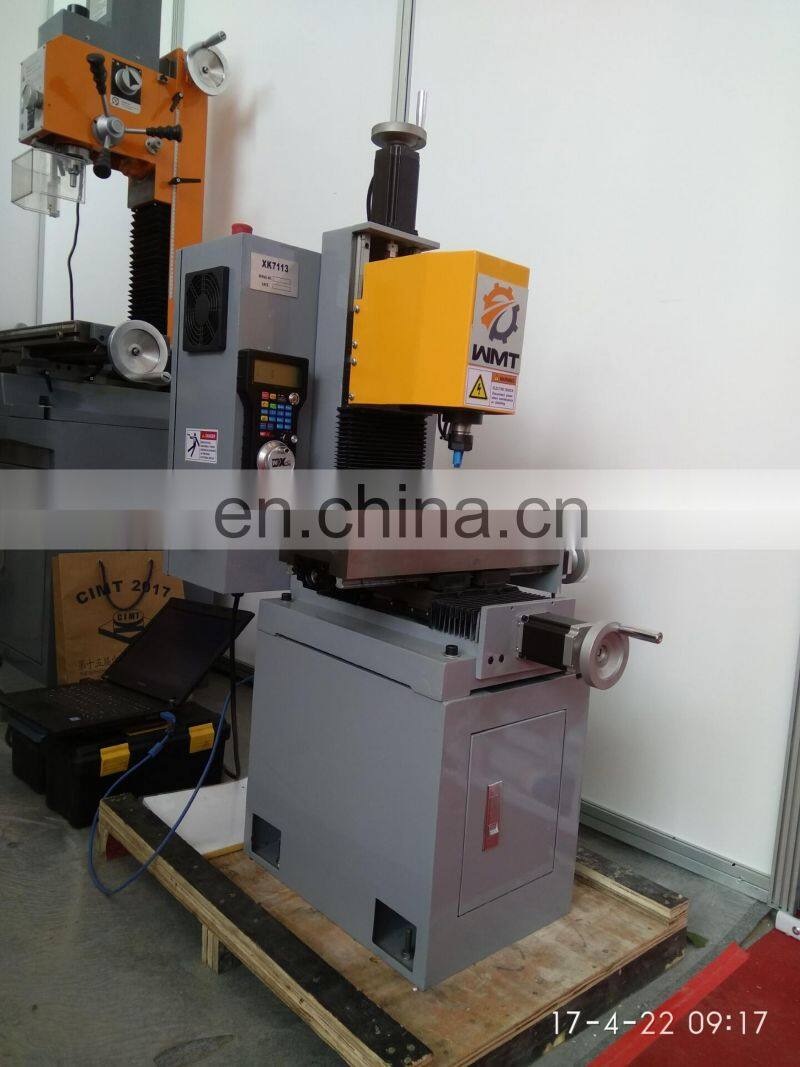

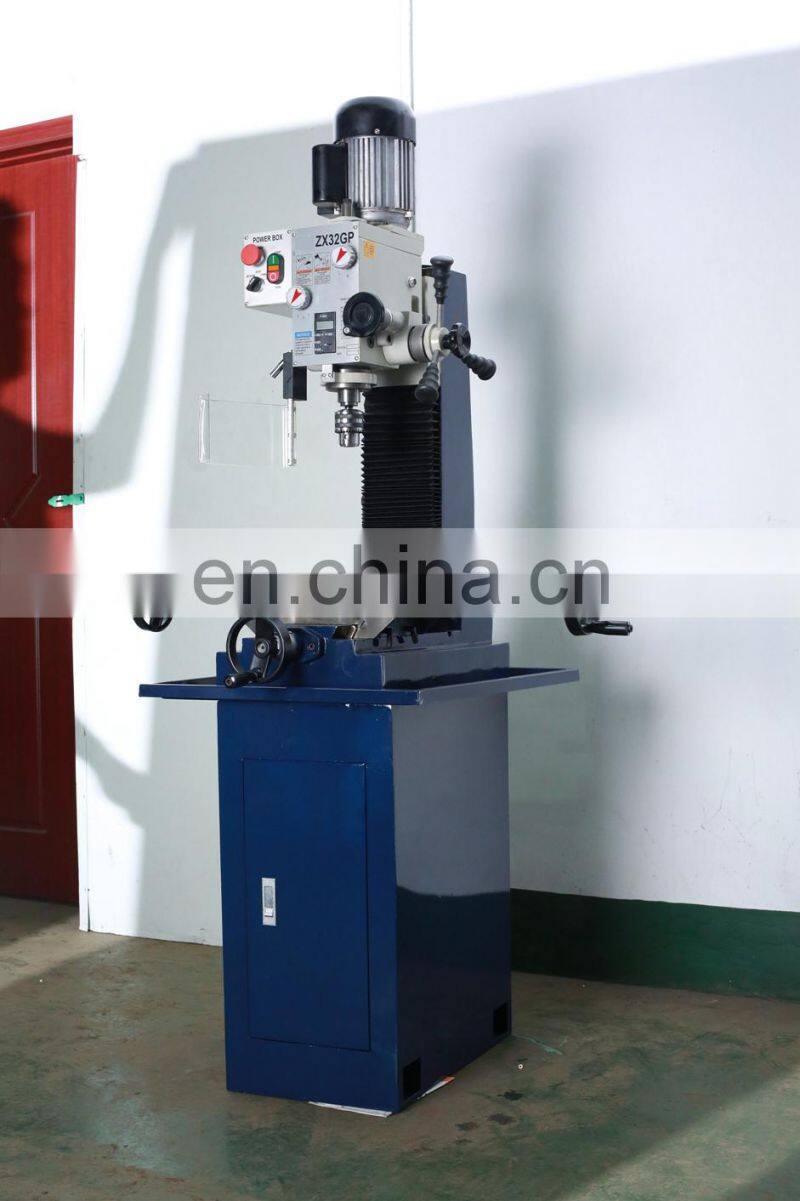

Our company also have the Milling and drilling machines below(CNC milling machine XK7113 and milling machine ZX32G, pls click below).

Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies.One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd.The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
