Home > Products > METAL LATHE MACHINE > CS6250Bx1000 Engine Lathe Metal Manual Lathe for Metal Turning

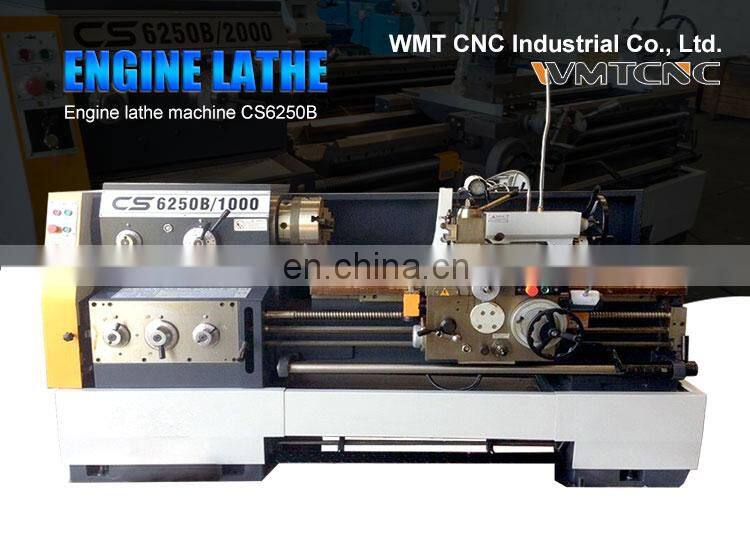

CS6250Bx1000 Engine Lathe Metal Manual Lathe for Metal Turning
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Gear Head Universal Lathe Machine Engine Lathe CM6241 for Metal Turning
-
CD6260C 80mm Spindle Bore Heavy Duty Horizontal Engine Lathe Manual Lathe Machine
-
C6253 1000/1500/2000 mm Diameter Gap Bed Heavy Duty Metal Horizontal Engine Lathe Price
-
Hot Selling Mini Bench Lathe Machine DIY0714 for DIY Hobby and Training Use
-
CM6241 1000mm Gap Bed Manual Engine Lathe Machine for Metal Turning With CE
-
280mm Big Bore Manual Lathe Pipe Threading Lathe Machine Q1327 With CE Stanfard

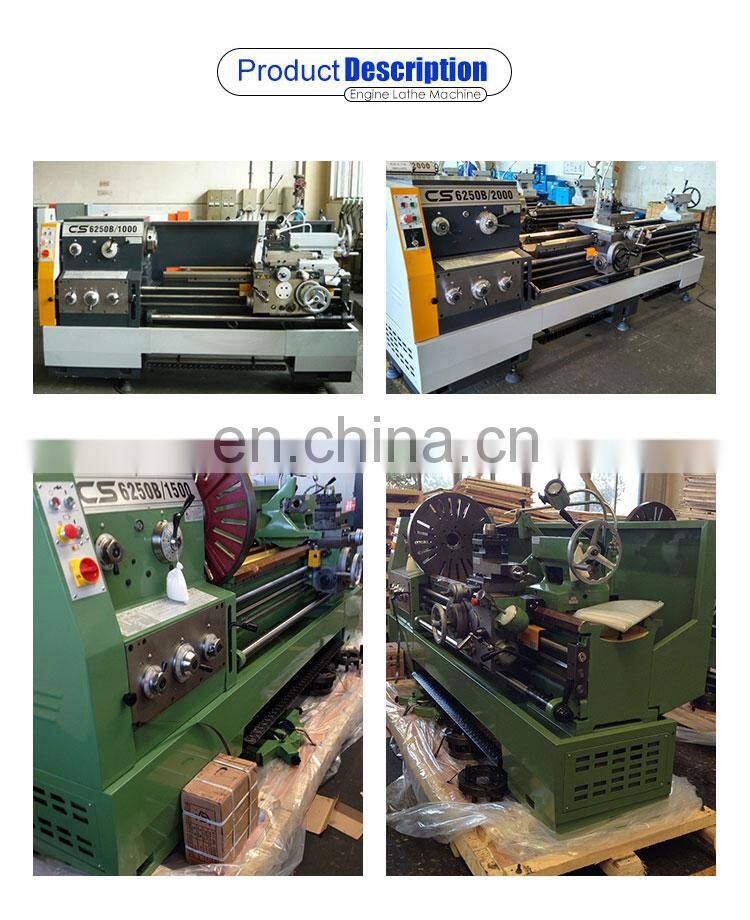

Product Description
Product Description
Machine features of engine lathe:
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Machine Specification
Specification | Unit | CS6250B |
Max swing over bed | mm | φ500 |
Max swing in gap | mm | φ710 |
Effective length in gap | mm | 240 |
Max swing over slide | mm | φ300 |
Max workpiece length | mm | 1000/1500/2000/3000 |
Spindle thru-hole | mm | φ82 |
Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | |
Spindle speed | r/min | 24 step 9-1600 |
Spindle motor | kW | 7.5 |
Quill dia./travel | mm | φ75/150 |
Taper of center | MT | 5 |
Number of station/ | 4/ 25X25 | |
Tool section | ||
Max X-axis travel | mm | 145 |
Max Z-axis travel | m/min | 320 |
X-axis feed | mm/r | 93 kinds 0.028-6.43 |
Z-axis feed Z-axis feed | mm/r | 93 kinds 0.012-2.73 |
Metric thread | mm | 48 kinds 0.5-224 |
Inch thread | t.p.i | 48 kinds 72-1/4 |
Module thread | πmm | 42 kinds0.5-112 |
DP thread | t.p.i. π | 42 kinds 56-1/4 |
Coolant pump motor | kW | 0.06 |
Machine length | mm | 2880 |
Machine width | mm | 975 |
Machine height | mm | 1230 |
Machine weight | kg | 2400 |

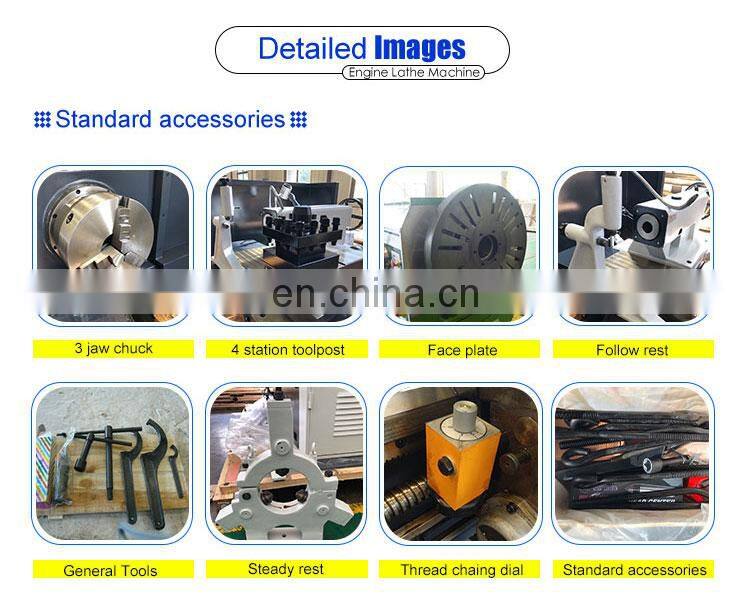

Detailed Images

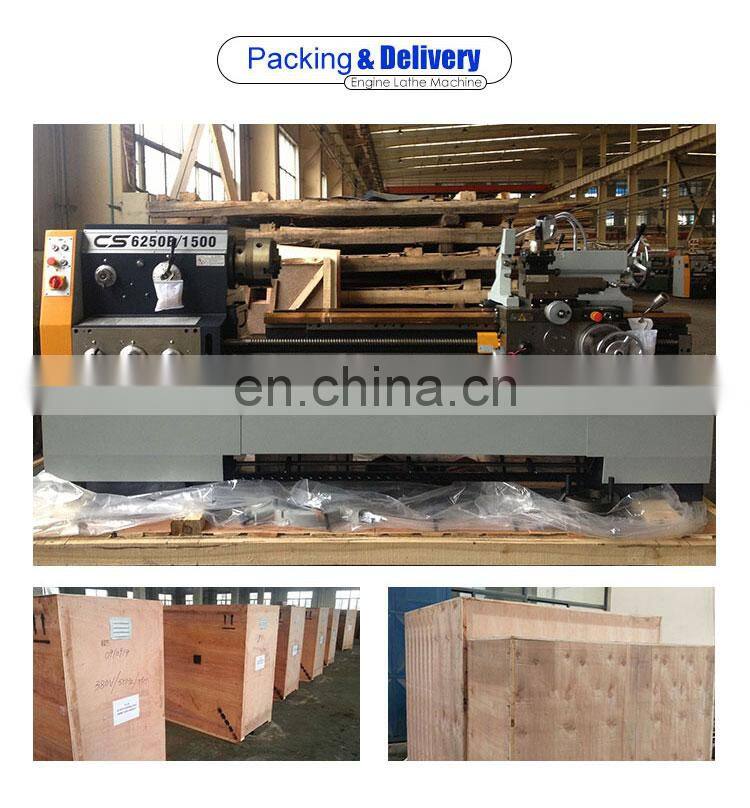

Packing&Shipping

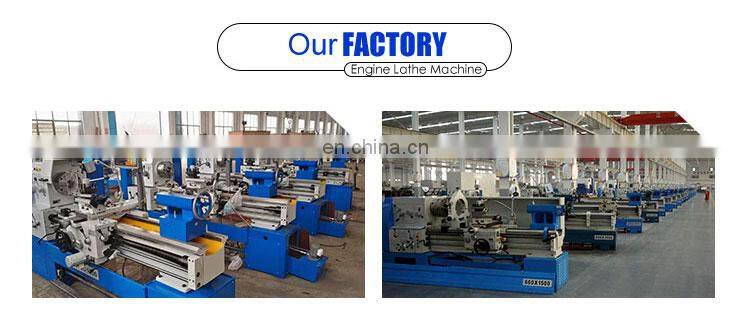

Company profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
