QK1319 CNC Pipe Threading Machine Pipe Processing Machine

QK1319 CNC Pipe Threading Machine Pipe Processing Machine thumbnail-1
QK1319 CNC Pipe Threading Machine Pipe Processing Machine thumbnail-2
QK1319 CNC Pipe Threading Machine Pipe Processing Machine thumbnail-3
QK1319 CNC Pipe Threading Machine Pipe Processing Machine thumbnail-4
QK1319 CNC Pipe Threading Machine Pipe Processing Machine thumbnail-5
QK1319 CNC Pipe Threading Machine Pipe Processing Machine photo-1
QK1319 CNC Pipe Threading Machine Pipe Processing Machine photo-2
QK1319 CNC Pipe Threading Machine Pipe Processing Machine photo-3
QK1319 CNC Pipe Threading Machine Pipe Processing Machine photo-4

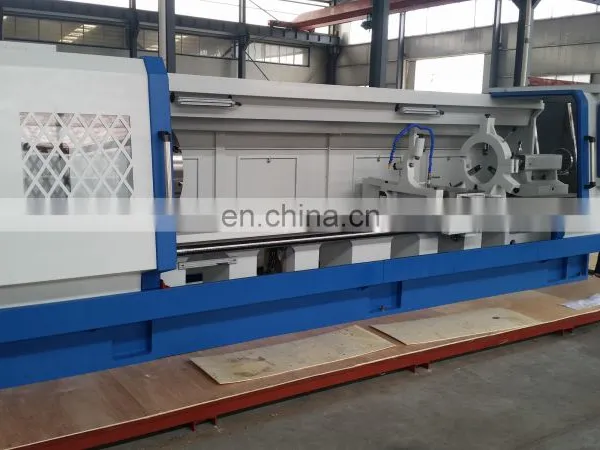

QK1319 CNC Pipe Threading Machine Pipe Processing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Main Feature:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
Specification
QK1319
Max.swing over bed
Ф630mm
Max.swing over carriage
Ф340mm
Max. cutting length
1000/1500/3000mm
Rail width
550mm
Spindle bore
Ф200mm
Taper of spindle bore
MT6
Chuck size
500mm
Range of spindle speed
(L):25-120rpm(H):100-500rpm
X-axis travel
350mm
Z-axis travel
850/1350/2850mm
X/Z rapid speed
4m/min
Electronic turret
4 -station
Max.section of tool
32x32mm
Stroke of tailstock sleeve
250mm
Diameter/Hole of tailstock sleeve
Ф100mm/MT5
Main motor power
11kw
Overall dimensions L x W x H
2100/2420/2860/3320x1600x1830mm
Packing size L x W x H
2300/2620/3060/3520x1800x2030mm
Net weight
5000/5500/6000kg
Gross weight
6000/6550/7000kg


Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs



Optional Accessories:
GSK218M controller

Simens 808D controller

Simens 808D Advance controller

Fanuc Oi TF controller
6/8-Position electrical tool post


Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
