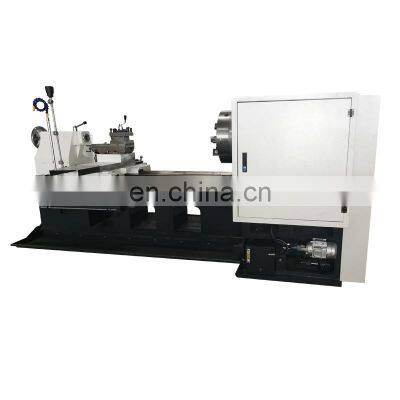

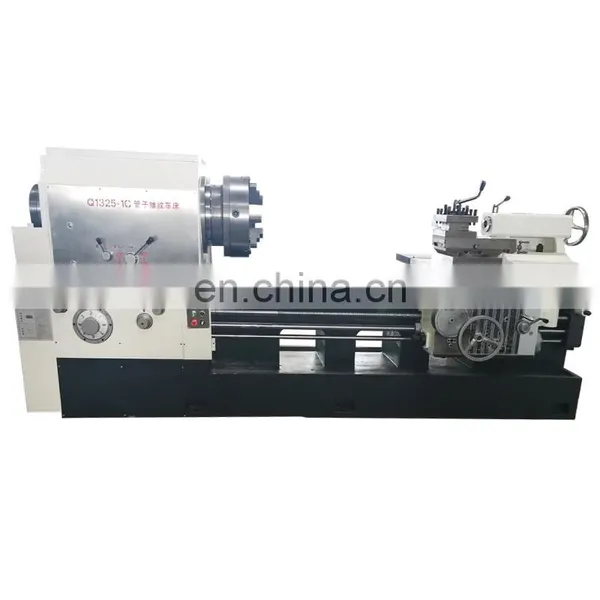

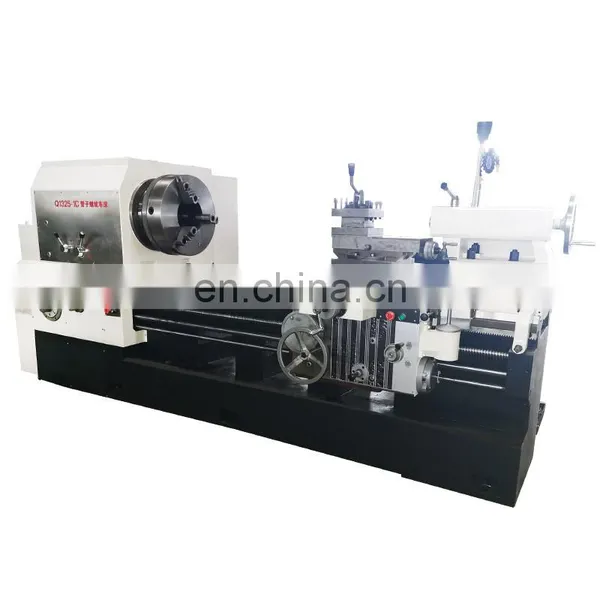

pipe thread lathe Q1325 manual pipe threading metal lathe machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Pipe Threading Lathe Machine Main Features:
1. Q13 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.

2. This series is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, for processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Specification	Q1325	Q1327	Q1330
Max dia.swing over bed	800
Max dia.swing over cross slide	480
Max.length of work-piece	1500
Width of bed	550	750
Spindle bore	255	280	305
Power of spindle motor	11	15
Spindle speed	VF2 steps, 12-642	VF2 steps, 20-300	VF2 steps, 20-300
Z axis feed grade/range	26/0.07-1.33	40/0.1-3	40/0.1-3
X axis feed grade/range	22/0.02-0.45	40/0.05-1.5	40/0.05-1.5
Carriage rapid traverse speed	4000	3740
Cross slide rapid traverse speed	2300	1870
Metric thread grade/range	52/1-224	1930/1/30	1930/1/30
Inch thread grade/range	1940/2/28	27/28-1	27/28-1
Traverse of cross slide	320mm	520mm
Max. Traverse of turret	200mm	300mm
Tailstock quill travel	250mm	300mm
Tailstock quill Dia./taper	Φ100/MT5#)	Φ140/(MT6#)
Chuck	Φ630, 4-jaw manual	Φ630, 4-jaw manual
Overall dimensions(LWH)	3657×1757×1740mm	5000×2100×1600mm	5000×2100×1600mm
Net weight	3.8t	4.2t	4.3t

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
