cjm280 mini lathe machine torno horizontal manual lathe turning

Name: cjm280 mini lathe machine torno horizontal manual lathe turning
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Mini Bench Lathe CJM280 Features: 1. Precision ground and hardened bed ways. 2. The spindle is supported with precision roller bearings. 3. Headstock gears are made of high quality steel, ground and hardened. 4. Easy operating speed change levers. 5. Spindle speed range 45-2000rpm. 6. Easy operating gear box has various feeds and thread cutting function. 7. With or without cabinet according to requirement.

8. Machine stand is optional, also we provide OEM logo & color service.

Specifications	CJM280-A
Distance between centers	550mm/610mm/815mm
Max.swing over bed	280mm
Width of bed	150mm
Max.Length of work piece	500mm/560mm/765mm
Swing over middle carriage	160 mm
Spindle bore	26mm
Main spindle taper	MT4
Max.Cross stroke of toolpost	130mm
Max.Long stroke of top toolpost	65mm
Max.stroke of tailstock sleeve	60mm
Tailstock taper	MT2
Main Spindle speed steps	12
Main Spindle speed	80~1600rpm/45~2000rpm
Motor power	750W one or three phase
Packing size	1165×580×620mm

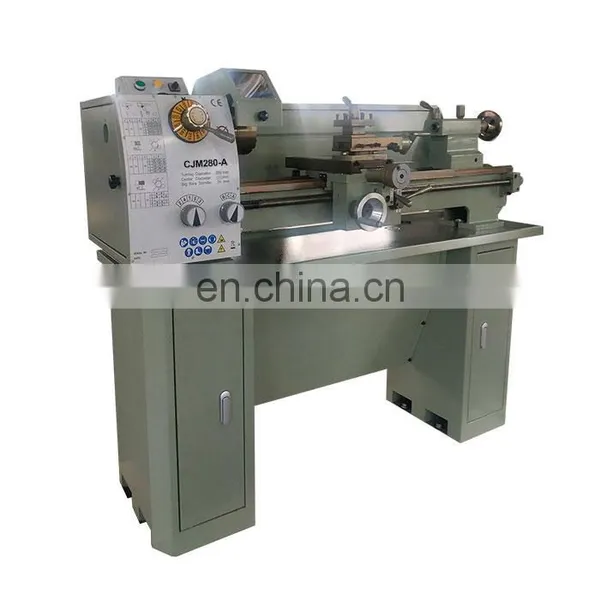

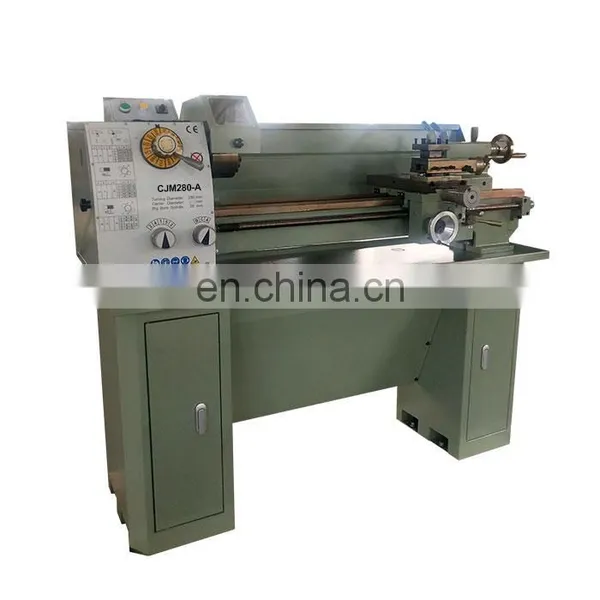

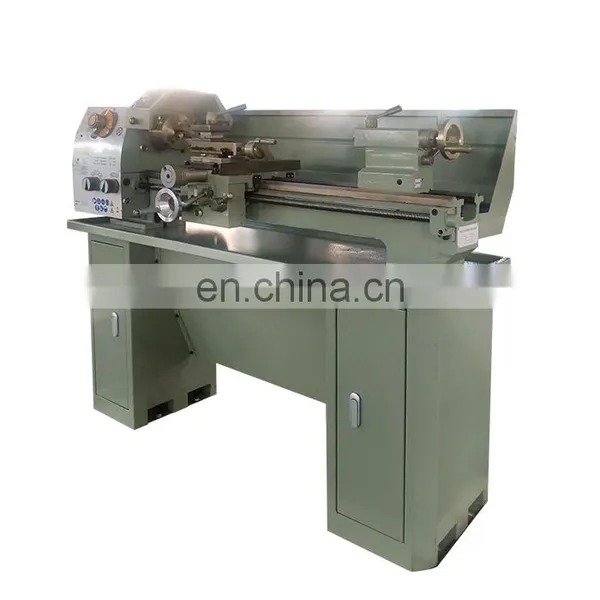

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
