C0632B Mini Manual Lathe Machine Price Metal Turning Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cjm280 Mini Lathe Machine Torno Horizontal Manual Lathe TurningNegotiableMOQ: 1 -
Torno CW6163 3m Heavy Duty Manual Lathe Turning MachineNegotiableMOQ: 1
-
Torno CW6163 Heavy Duty Manual Lathes for Metal TurningNegotiableMOQ: 1
-
High Precision Heavy Duty Manual Lathe C6266x3000 Other Machine Tool Equipment for Metal TurningNegotiableMOQ: 1
-
Parallel Lathe C0636A Factory Sale Price Cheap Machine Tool Precision Metal Lathe MachineNegotiableMOQ: 1
Products Description

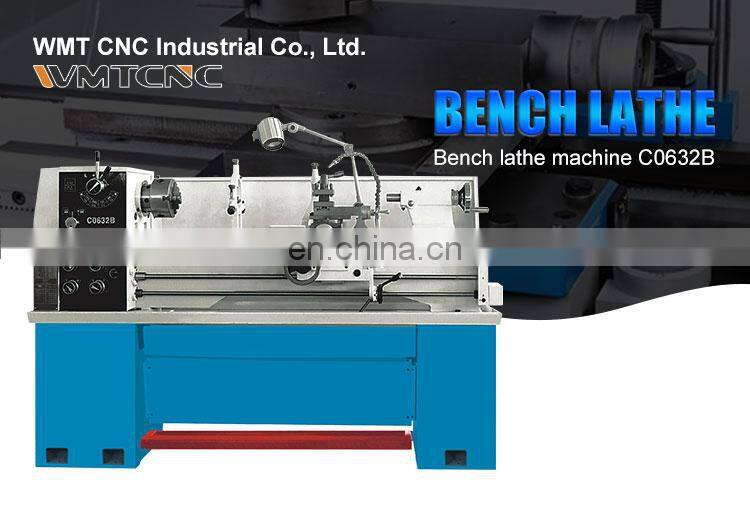

C0632B Mini Manual Lathe Machine Price Metal Turning Machine
Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 35-2000rpm.
6. Two different lengths of bed are available.
Specifications | C0632A×750/1000mm | C0636A×750/1000mm | |
C0632B×750/1000mm | C0636B×750/1000mm | ||
Swing over bed | Φ330mm(13") | Φ360mm(14") | |
Swing over cross slide | Φ198mm(7-25/32") | Φ212mm(8-1/6") | |
Swing over gap | Φ476mm(18-3/4") | Φ491mm(9-1/3") | |
Distance between centers | 750mm(30")/1000mm(40") | ||
Bed width | 187mm(7-3/8") | ||
Spindle bore and nose | A: Φ38mm(1-1/2") / D1-4 camlock | ||
B: Φ52mm(2")/D1-5 camlock | |||
Taper in nose | MT5 | ||
Speeds number | 8 or 16(pole changeable motor:optional) | ||
Speeds range | 70-2000rpm or 35-2000 rpm(2 speed motor) | ||
Leadscrew thread | 8 TPI or 3mm pitch | ||
Cutting tool max section | 16×16mm(5/8"×5/8") | ||
Threads imperial pitches | 36 Nos. 8-112TPI or (34 Nos. 4-56TPI) | ||
Thread metric pitches | 28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm) | ||
Longitudinal feeds imperial | 36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev) | ||
Longitudinal feeds metric | 36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev) | ||
Cross feeds imperial | 36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev) | ||
Cross feeds metric | 36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev) | ||
Tailstock barrel taper and travel | MT3 100mm (3-15/16") | ||
Main motor | 1.5KW/3 PH or 1 PH | ||
Cross slide travel | 160mm(6-5/16") | 118mm(4-5/16") | |
Compoud rest travel | 68mm(2-11/16") | ||
Net /Gross weight | 570/620kg 620/670kg | 610/660kg 650/700kg | |
Packing size | 1890/1940 X 750 X 1510mm | ||
Detailed Images
Standard Accessories
3-jaw chuck
4-jaw chuck
Coolant system
Working light
Foot brake
Steady rest
Follow rest
Chasing dial indicator
Change gears set
Tool box & tools
Optional Accessories
Digital Readout(2 Axis, 3 Axis)
Quick change tool post & holders
Taper turning attachment,
Lathe tools
Face plate
Live center
Leadscrew guard
Chuck guard
CE standard
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
