Product Description

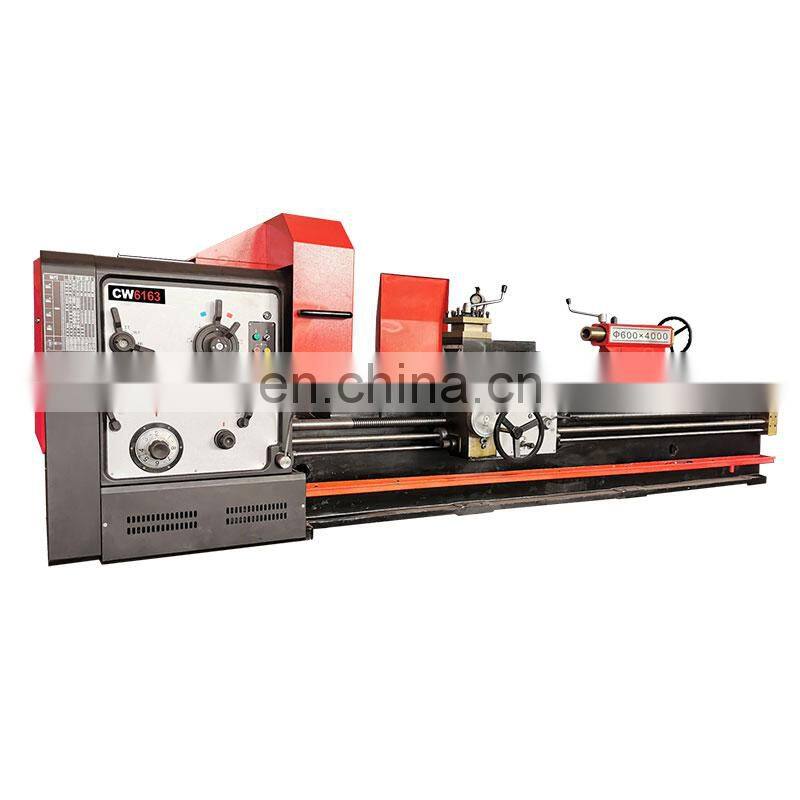

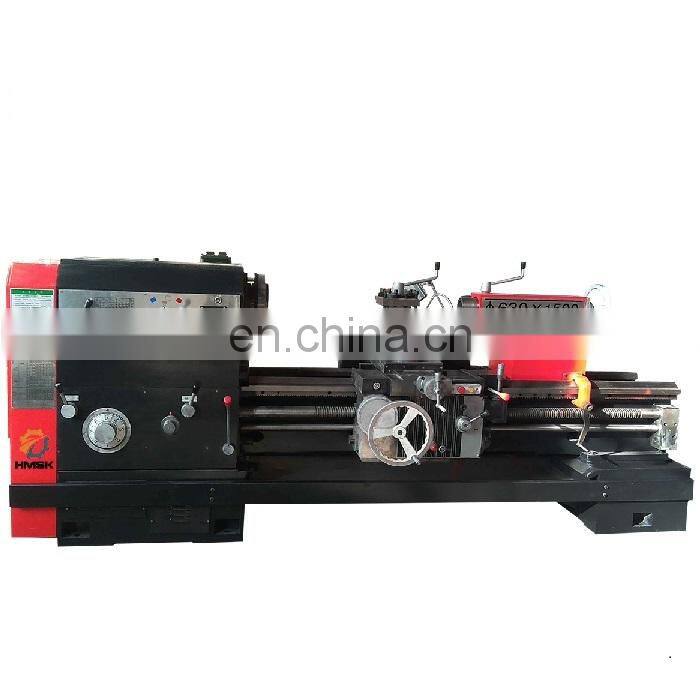

torno CW6163 heavy duty manual lathe turning machine
CW6163B: without gap
We have different model of this type heavy duty manual lathe machine, you can choose it according to your needs.Specification
Specification | Unit | CW6163 (without gap) |
Swing over bed | mm | 630 |
Swing over toolpost | mm | 350 |
Swing over gap | mm | 1300 |
Center distance | mm | 1000mm 1500mm 3000mm 5000mm |
Spidle bore size and spindle type | mm | φ120 D11 |
Spindle nose taper and center taper | φ140 MT5 | |
Spindle speed kinds anf range | r/min | 18 kinds 5.4-720 |
Longitudinal Feeding speed and range | mm/r | 64 kinds 0.06-24.3 |
Range 1:1 | mm/r | 0.1-1.52 |
Range 16:1 | mm/r | 1.6--24.3 |
Micro feeding with change gears | mm/r | 0.05-0.76 |
Ratio of cross feeding and longitudinal feeding | mm | 1:02 |
Bed fast moving | mm/min | 4000 |
Leadscrew pitch | mm | Metric 12 inch 1/2” |
Metric thread range | mm | 50kinds 1-240 |
Inch thread range | tpi | 26 kinds 14-1t.p.i |
Module thread range | mm | 53 kinds 0.5-120 |
Pitch thread range | mm | 24kinds 28-1 DP |
Max. travel of Upper toolpost | mm | 315 |
Max. travel of Lower toolpost | mm | 200 |
Tailstock travel | mm | 250 |
Tailstock taper | MT5 | |
Main Motor power | KW | 11 |
Fast moving motor power | KW | 1.1 |
Coolant pump power | W | 90 |
Bed width | mm | 550 |
Bed hardness | 550RC52 | |
Max. Loading weight | kg | 1500 |

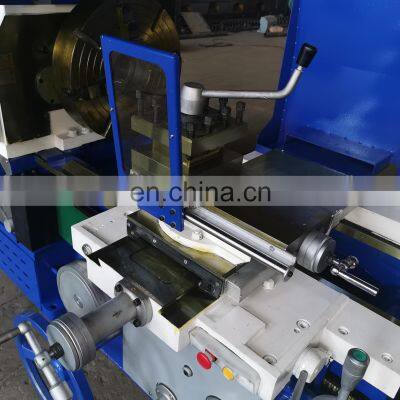

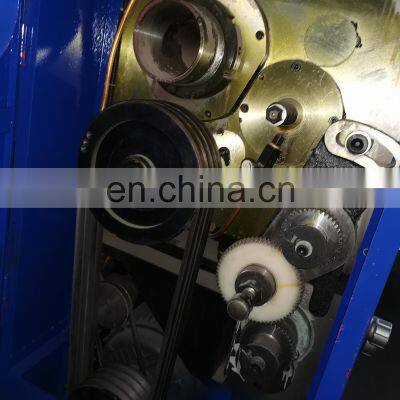

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
