parallel lathe DIY0714 direct connect bench lathe machine with 20mm spindle bore for school education and hobby users
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
parallel lathe DIY0712 7'''x12'' mini metal lathe machine for household use with CE
-
parallel lathe CJM250 min metal lathe machine price with auto feeding
-
lathe machine C6241 410mm diameter metal lathe machine with rigid stand
-
Stock sale mini manual precision CJM320A bench lathe machine for hobby
-
2022 hot sale WMTCNC dalian lathe machine DIY0714 mini lathe machine for metal
-
manual engine lathe CD6250Cx3000 engine lathe manual metal turning lathe with competitive price
Product Description
Product Description

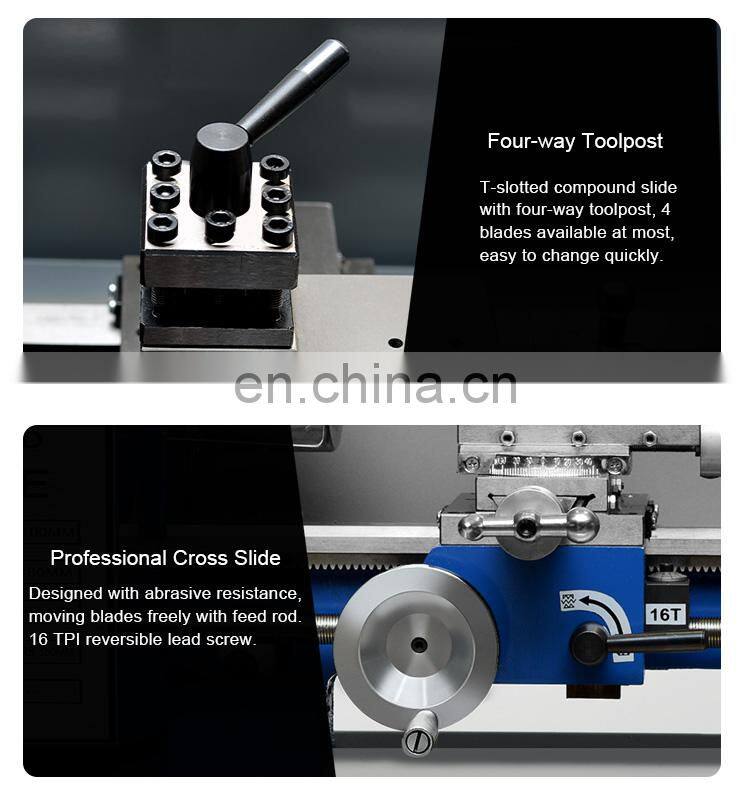

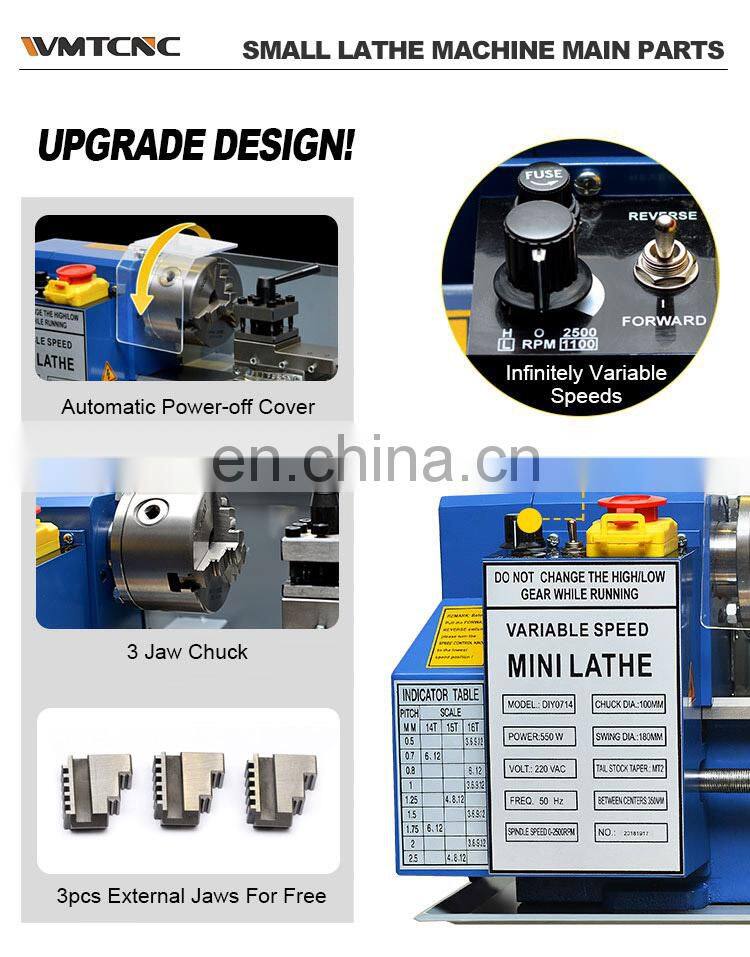

Mini lathe machine main features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.

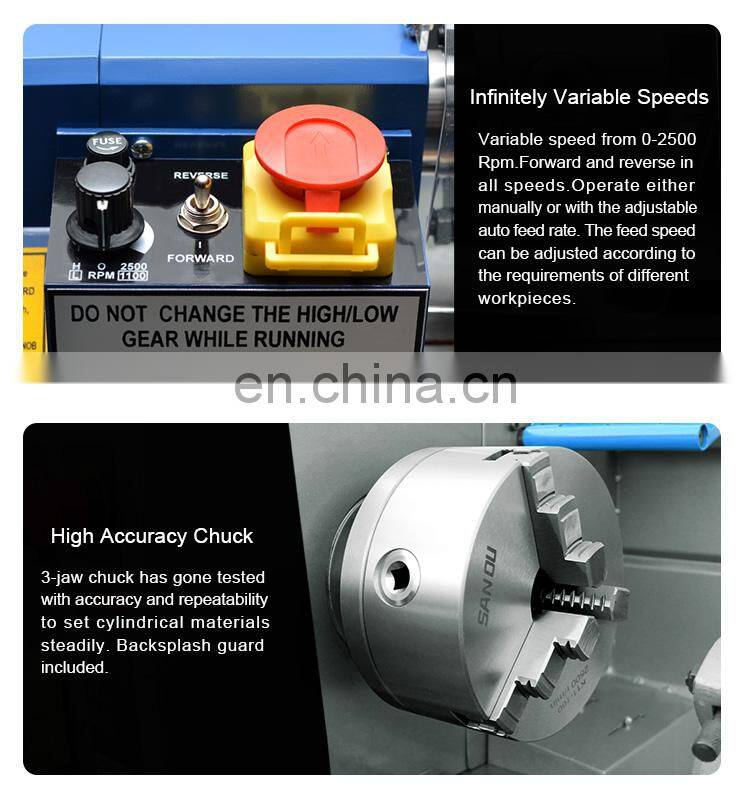

5. Spindle speed range 50-2500rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.

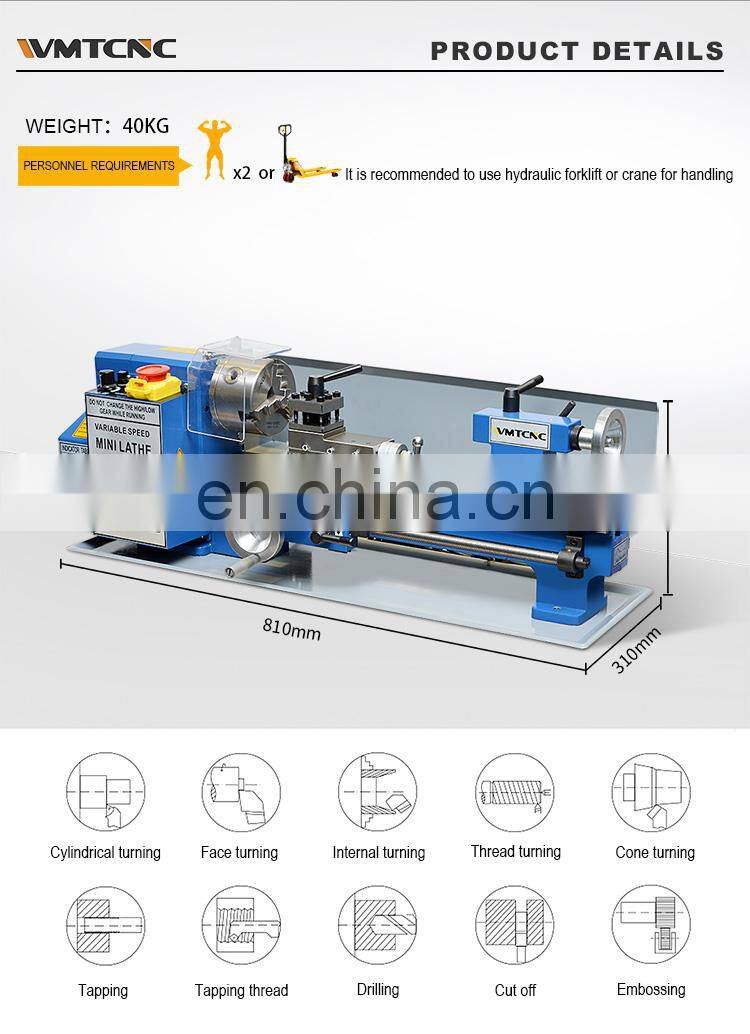

Specification | DIY0708/DIY0712/DIY0714 | DIY0816 |
Distance between centers | 200/300/350mm(8"/11-3/4"/13-3/4") | 400mm |
Swing over bed | φ180mm(7") | 210mm |
Spindle taper | MT3 | MT3 |
Tailstock taper | MT2 | MT2 |
Chuck diameter | φ80mm（3-1/4") | 80mm |
Spindle bore | φ20mm（3/4") | 38mm |
Range of metric threads | 0.5-2.5 | 0.5-3mm |
Range of imperial threads | 12-52T.P.I | 8-44T.P.I |
Spindle speed | 50-2500rpm | 0-2500rpm |
Power of motor | 400/550W | 600w |
Packing size | 660/760/810*310*370mm | 800*450*450mm |
Gross weight | 38/42/45kg | 85/95kg |
