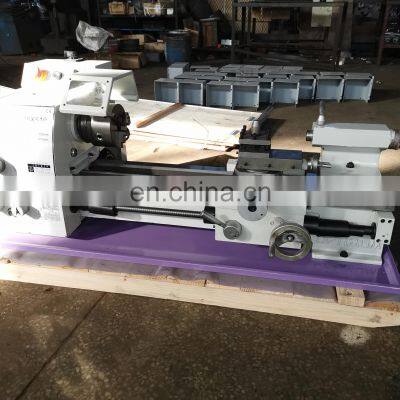

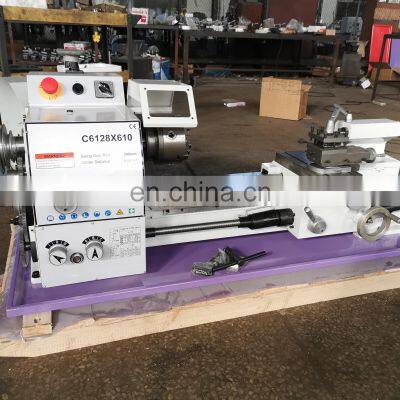

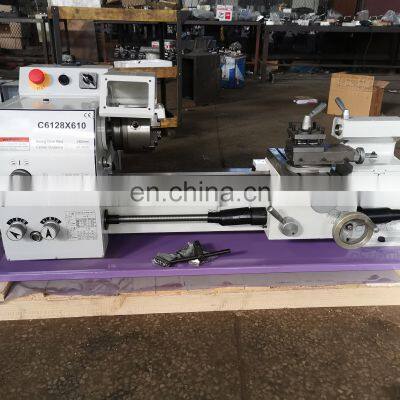

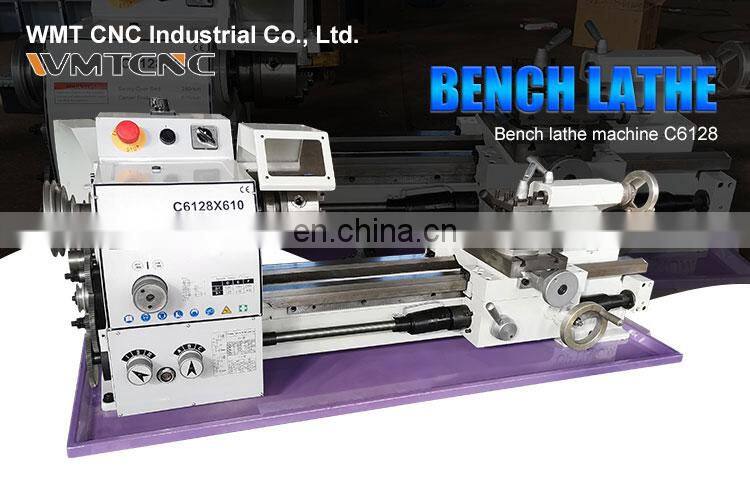

Manual Lathe Machine C6128 High Precision Metal Bench Mini Lathe Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C0632A Mini Manual Lathe Machine Price Metal Turning MachineNegotiableMOQ: 1 -
C0632B Mini Manual Lathe Machine Price Metal Turning MachineNegotiableMOQ: 1
-
Cjm280 Mini Lathe Machine Torno Horizontal Manual Lathe TurningNegotiableMOQ: 1
-
Torno CW6163 3m Heavy Duty Manual Lathe Turning MachineNegotiableMOQ: 1
-
Torno CW6163 Heavy Duty Manual Lathes for Metal TurningNegotiableMOQ: 1
Products Recommend

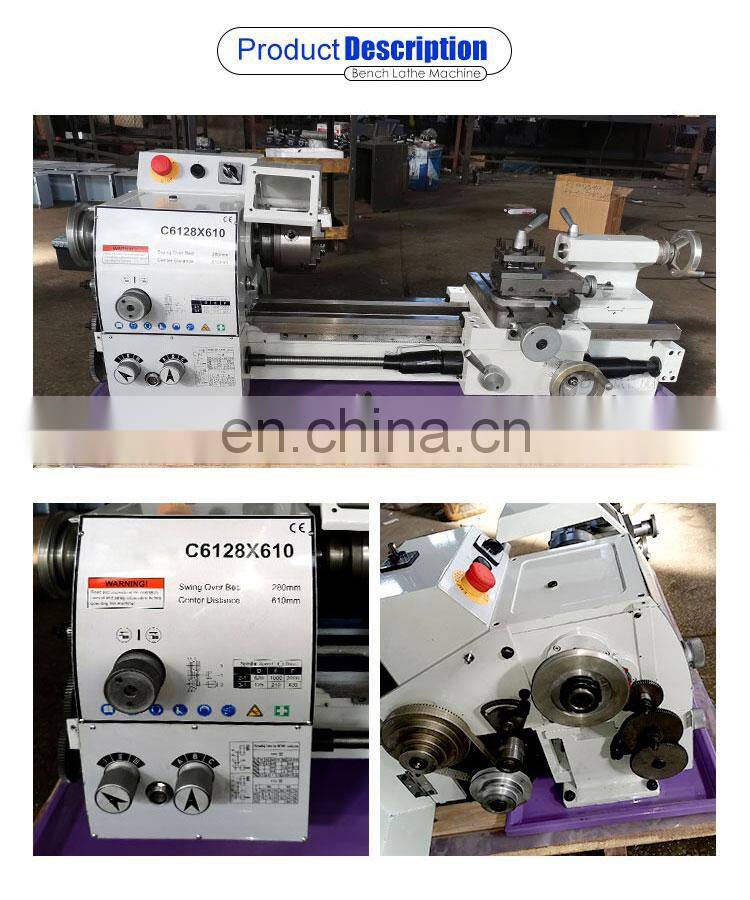

Products Description
Features:
1. Precision ground and hardened bed ways.

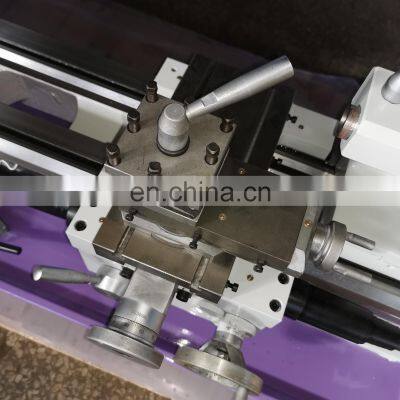

2. With 3 jaw chuck and 4-position toolpost.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 125-2000rpm.
6. With or without machine stand according to requirement.
Model | C6128Bx610 |
Max. swing over bed | Φ280mm |
Max. swing over cross slide | Φ150mm |
Distance between centers | 610mm |
Width of bed | 180mm |
Spindle bore | Φ26mm |
Taper of spindle bore | M.T.#4 |
Range of spindle speeds | 125-2000rpm |
Taper of tailstock quill | M.T.#3 |
Metric threads can be cut | 0.1-3.5mm |
Inch threads can be cut | 8-35TPI |
Range of longitudinal feeds | 0.1-0.25mm/rev |
Max. travel of cross slide | 110mm |
Max. travel of top slide | 70mm |
Max.travel of tailstock quill | 80mm |
Motor power | 750w |
Packing size(L*W*H) | 1320mm×650mm×610mm |
N.W/G.W | 218kg/258kg |
Foot stands(L*W*H) | 280mm×390mm×600mm |
Foot stands(N.W/G.W) | 52kg/56kg |

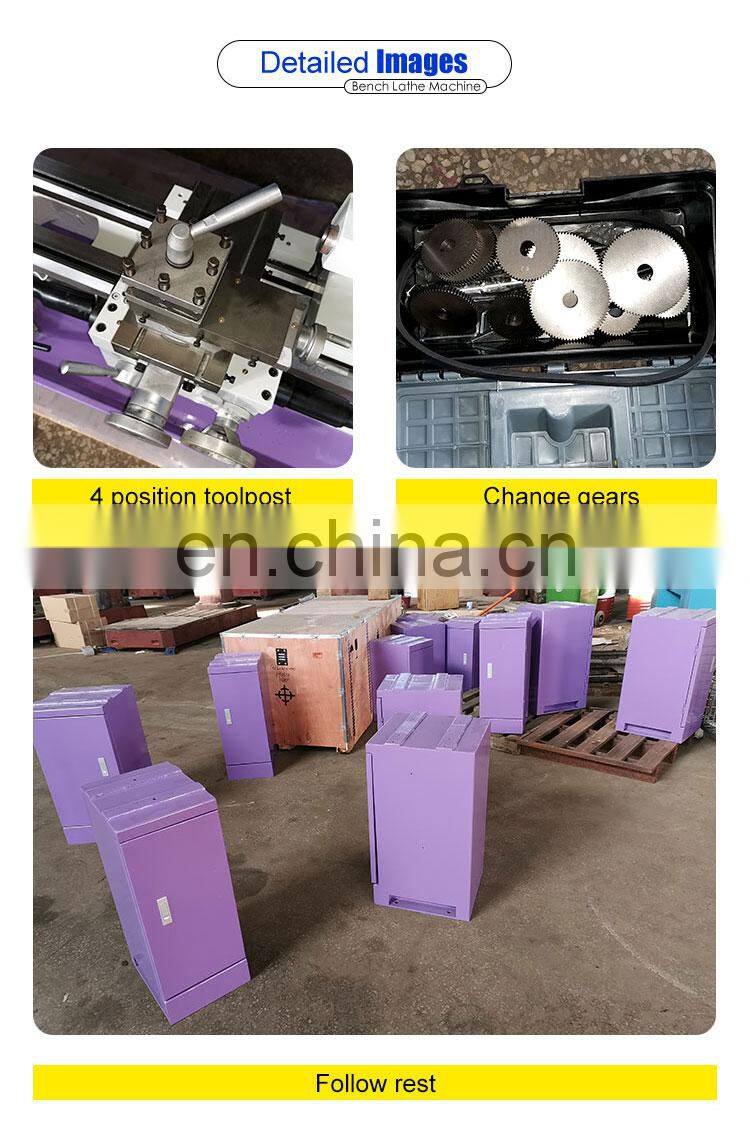

Detailed Images
Standard Accessories
· 3-jaw chuck,
· Dead center
· Change gears set
· Tool box and tools
Optional Accessories
· 4-jaw chuck
· Machine stand
· Steady rest
· Follow rest
· Live center
· Toolpost cover
· Chasing dial indicator
· Chuck guard
· Leadscrew guard
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
