Product Description

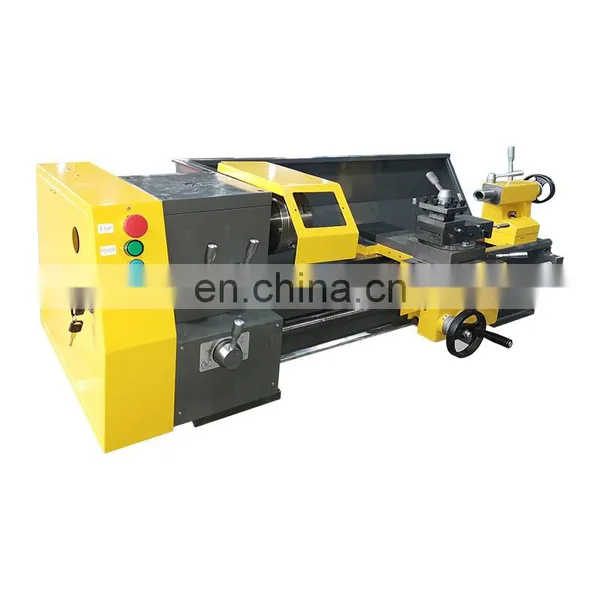

Stock sale mini manual precision CJM320A bench lathe machine for hobby
Manual bench lathe main features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1600rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.
Specification |
CJM320A |
Max. swing over bed |
330mm |
Max. swing over cross slide |
220mm |
Max. length of work piece |
600mm/750mm |
Width of bed |
160mm |
Spindle taper and bore |
MT5/38mm |
Max.lateral stroke over tool post |
160mm |
Metric pitches range |
0.5-4 mm |
Inch pitches range |
9-40 T.P.I |
Longitudinal-feed range |
0.135-1.80mm/r |
Max. travel of tailstock sleeve |
70 mm |
Tailstock sleeve taper |
MT3 |
Spindle speeds range |
60-1650r/min(50hz) |
Motor |
1.1Kw |
NW/GW (without stand) |
280/300kg 320/340Kg |
Packing size (without stand) |
1330x760x720/1550x760x720mm |
Packing size |
1330x760x1370/1550x760x1370mm |

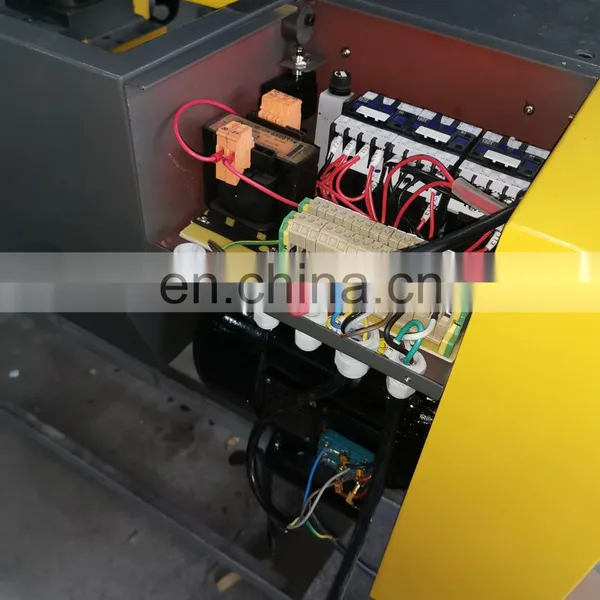

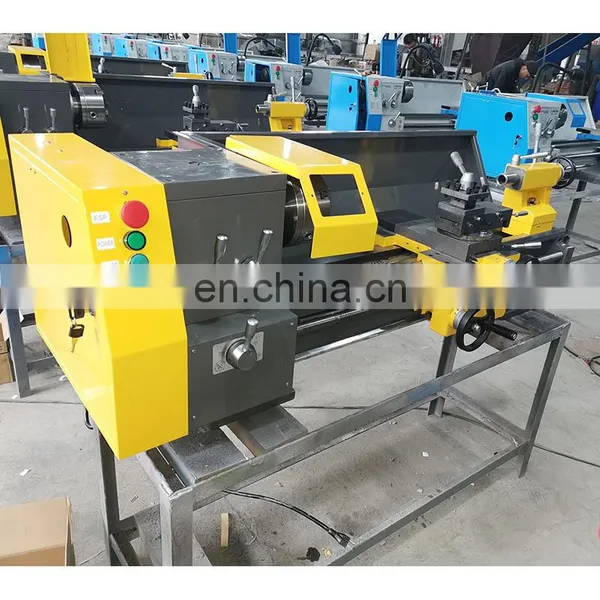

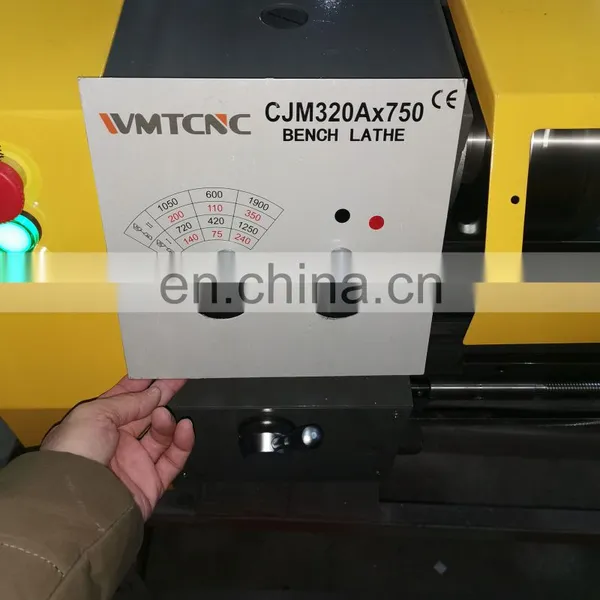

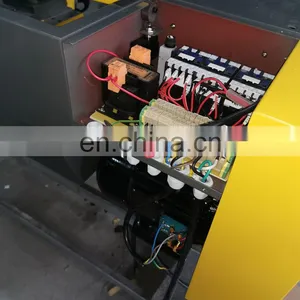

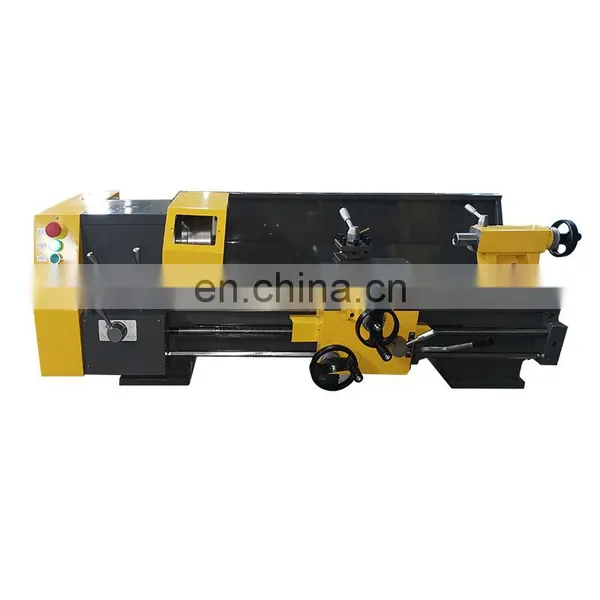

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
