Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > CJ6280YC Heavy Duty Manual Lathe Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CQ6236F Manual Lathe Machine Metal Lathe Machine Bench Lathe With CE Spindle Bore 38mmNegotiableMOQ: 1 -
MPV300 Mill Lathe Combo Machine in Sale From China.NegotiableMOQ: 1
-
MPV290 Lathe Mill Combo Machine With Machine StandNegotiableMOQ: 1
-
C6280 105 mm Big Spindle Lathe Machine Heavy DutyNegotiableMOQ: 1
-
CW62125Q Horizontal Heavy Gap Lathe Machine With CENegotiableMOQ: 1
Product Description

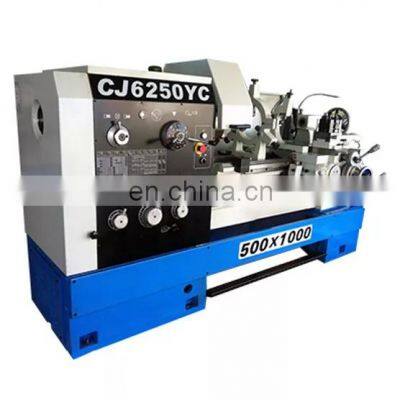

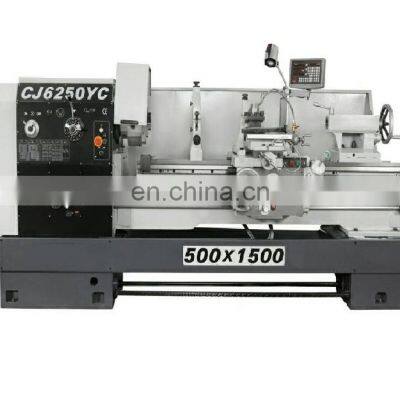

CJ6250YC good quality manual lathe machine
Main Feature
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Main Technical Data

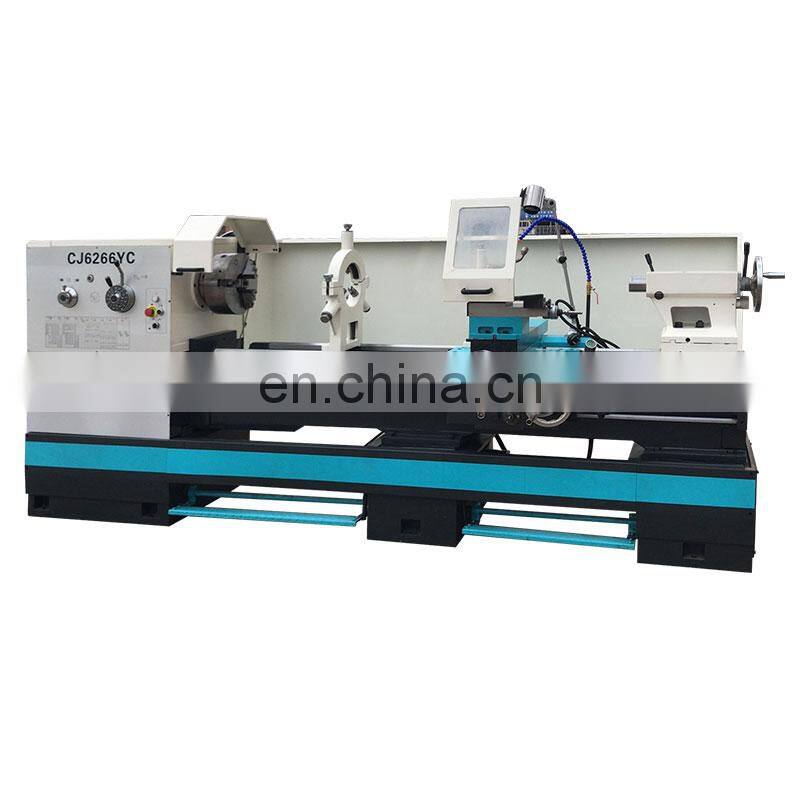

Model NO. | CJ6250YC | CJ6266YC | CJ6280YC | ||
Max. swing over bed | φ500mm(20") | φ660mm(26") | φ800mm(31") | ||
Max.swing over cariage | φ300mm(12") | φ420mm(17") | φ560mm(22") | ||
Max.swing in gap | φ710mm(28") | φ870mm(34") | φ1010mm(40") | ||
Max. length of workpice | 1000/1500/2000/2500/3000/4000mm | ||||
Effective gap lengh | 230mm | ||||
Bed width | 405mm | ||||
Spindle bore | φ108mm | ||||
Spindle taper of bore | 113(1.20) | ||||
Spindle number of speeds | 12STEPS 16STEPS | ||||
Spindle range of speeds | 36-1600rpm/13-1400RPM | ||||
Threads metric pitches | 1-14mm/22 | ||||
Threads imperial pitches | 28-2TPI/26 | ||||
Threads diametral pitdhes | 50-4DP/24 | ||||
Threads module pitches | 0.5-7mm/18 | ||||
Range of feeds longitudinal | 0.063-2.52mm | ||||
Range of feeds cross | 0.027-1.07mm | ||||
Extenal diameter of the tailstock quill | φ75mm | ||||
Max traverse of the tailstock quill | 150 | ||||
Quill taper | NO.5(morse) | ||||
Max.travel of compound rest | 145mm | ||||
Max. cross slide travel | 360mm | ||||
Max. size of tool shank(WxH) | 25x25mm | ||||
Power of the main motor | 7.5kw | ||||
Overall dimension(L xWxH) | (2700/3200/3700/4200/4700/5700)x1150x1800mm | ||||
Net weight | 2850/3150/3400 | 3200/3500/4000/ | 3550/3650/4200/ | ||
/3800/4200/4700kg | 4250/4500/5000kg | 4470/4750/5300kg | |||

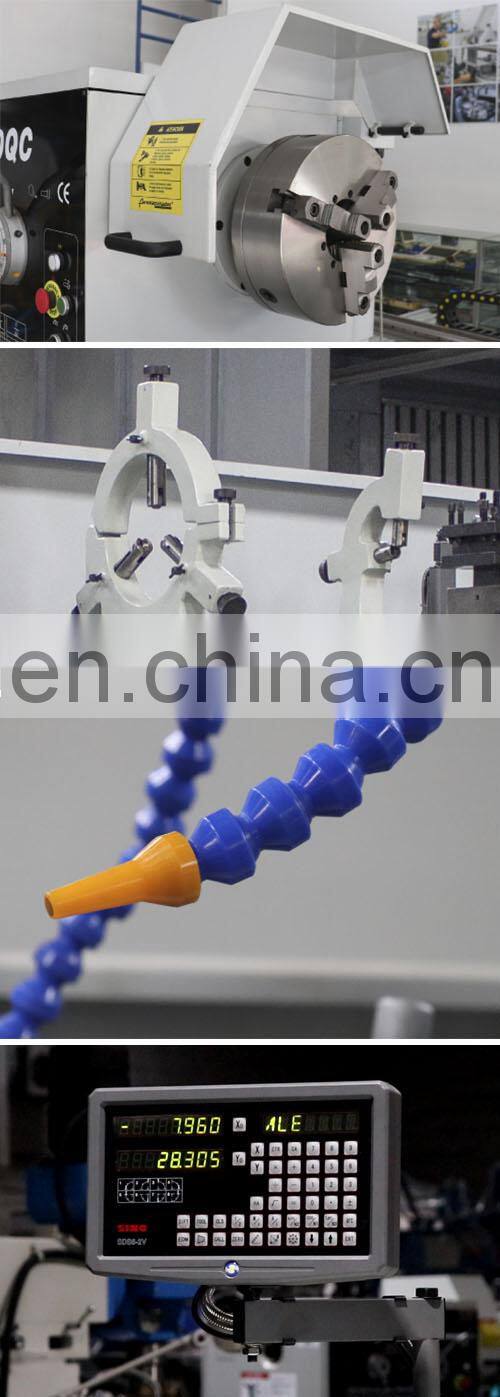

Details about the real pictures:
