C6236F 360 mm Diameter Mini Lathe Machine Metal for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Lathe Mini CJM320A Manual Lathe Machine Precision Manual MachineNegotiableMOQ: 1 -
C6241metal Manual Lathe Machine Manufacturer Directly SaleNegotiableMOQ: 1
-
C6253 530 mm Diameter China Metal Manual Lathe Machine for SaleNegotiableMOQ: 1
-
CD6241 410mm Diameter Engine Manual Lathe Machine for SaleNegotiableMOQ: 1
-
CQ6236F Lathe Machine Metal Lathe Machine Bench Lathe With Low PriceNegotiableMOQ: 1
Product Description
C6250C Manual lathe machine Features:
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main Specification:
Specification |
C6236F |
Max.swing over bed |
360mm |
Max.swing over cross slide |
190mm |
Max.swing over gap |
520mm |
Effective length of gap |
160mm |
Center Distance |
1000/1500/2000 |
Bed Width |
360mm |
Spindle hole |
52mm |
Spindle nose |
ISO-C6 |
Spindle taper |
MT6 |
Spindle speed(Number) |
(12steps)16-1600rpm |
Metric threads range |
17kinds 0.25-7mm |
Inch threads range |
30kinds 5-144inch |
Module threads range |
12kinds 0.25-3.5mπ |
Max.travel of top slide |
95mm |
Max.travel of cross slide |
250mm |
Max.size of tool shank |
20×20mm |
Dia.of tail stock sleeve |
65mm |
Taper of tail stock sleeve |
MT4 |
Max.travel of tail stock |
130mm |
Main drive motor |
4kw or 5.5kw |
Coolant pump motor |
125W |
Packing size |
750mm:2250x110x1650mm 1000mm:2450x1150x1650mm 1500mm:2880x1150x1650mm |
G.W/N.W |
750mm:1350/1750kgs 1400/1800kgs 1500/1900kgs 1000mm:1450/1480kgs 1500/1850kgs 1600/1950kgs 1500mm:1600/1950kgs 1650/2000kgs 1750/2100kgs |

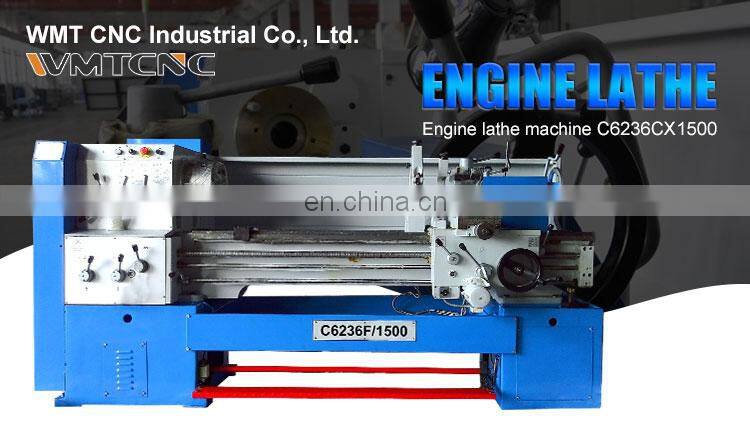

Products Show
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
