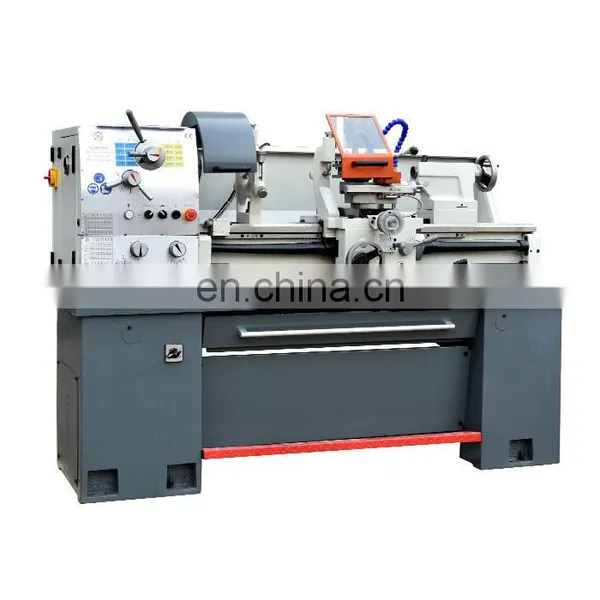

CQ6236F Manual Lathe Machine Metal Lathe Machine Bench Lathe With CE Spindle Bore 38mm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MPV300 Mill Lathe Combo Machine in Sale From China.NegotiableMOQ: 1 -
MPV290 Lathe Mill Combo Machine With Machine StandNegotiableMOQ: 1
-
C6280 105 mm Big Spindle Lathe Machine Heavy DutyNegotiableMOQ: 1
-
CW62125Q Horizontal Heavy Gap Lathe Machine With CENegotiableMOQ: 1
-
Chinese Brand WMT Bench Lathe Machine CJM320A Metal Lathe With CE and Cheap PriceNegotiableMOQ: 1
Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
Circular appearance as optional
51mm big spindle bore as optional
Specification | CQ6236F |
Max,swing over bed | 356mm |
Max.swing over cross slide | 220mm |
Max.swing in gap | 506mm |
Max.length of workpiece | 1000mm |
Width of bed | 206mm |
Spindle speed range | (16 changes)45-1800rpm |
Spindle bore | 38mm or 51mm |
Spindle nose | D4 or D5 |
Taper of spindle bore | MT5 or MT6 |
Center height | 178mm |
Threads metric pitches | 0.4-7mm/28kinds(Metric lathe) 0.45-7.5mm/22kinds(Inch lathe) |
Threads imperial pitches | 4-56TPI/28kinds(Metric lathe) 4-112TPI/40kinds(Inch lathe) |
Compound rest travel | 90mm |
Cross slide travel | 150mm |
Max.section of tool | 16x16mm |
Longitudinal feeds range | 0.043-0.653mm/rev(Metric lathe) 0.0012-0.0297in/rev(Inch lathe) |

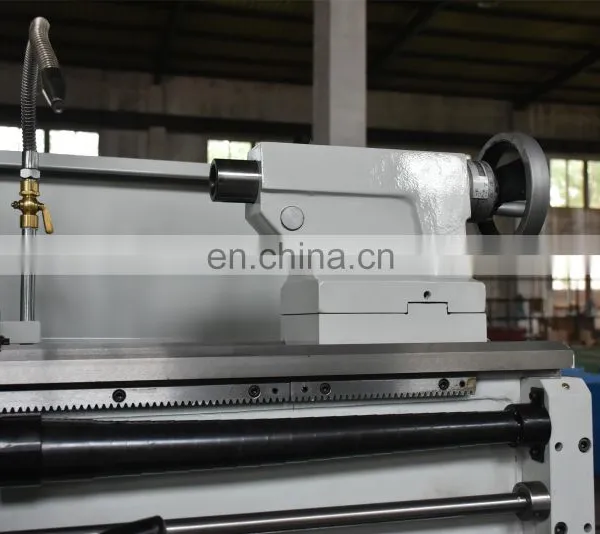

External diameter | 45mm |
Max.travel | 100mm |
Taper of bore | MT3 |
Main motor power | 1.5/2.4KW |
Coolant pump power | 40W |
Packing size(LxWxH) | 1950X750X1500mm |
Net weight | 700kg |
Gross weight | 800kg |
