CJ6250YC Tornos Machine for Metal Work
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CJ6250YC Manual Tornos Lathemachine for Metal WorkNegotiableMOQ: 1 -
CJ6280YC Heavy Duty Manual Lathe PriceNegotiableMOQ: 1
-
CQ6236F Manual Lathe Machine Metal Lathe Machine Bench Lathe With CE Spindle Bore 38mmNegotiableMOQ: 1
-
MPV300 Mill Lathe Combo Machine in Sale From China.NegotiableMOQ: 1
-
MPV290 Lathe Mill Combo Machine With Machine StandNegotiableMOQ: 1
Product Description
CJ6250YC good quality manual lathe machine
Main Feature
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Main Technical Data
Model NO. |
CJ6250YC |
CJ6266YC |
CJ6280YC |
||
Max. swing over bed |
φ500mm(20") |
φ660mm(26") |
φ800mm(31") |
||
Max.swing over cariage |
φ300mm(12") |
φ420mm(17") |
φ560mm(22") |
||
Max.swing in gap |
φ710mm(28") |
φ870mm(34") |
φ1010mm(40") |
||
Max. length of workpice |
1000/1500/2000/2500/3000/4000mm |
||||
Effective gap lengh |
230mm |
||||
Bed width |
405mm |
||||
Spindle bore |
φ108mm |
||||
Spindle taper of bore |
113(1.20) |
||||
Spindle number of speeds |
12STEPS 16STEPS |
||||
Spindle range of speeds |
36-1600rpm/13-1400RPM |
||||
Threads metric pitches |
1-14mm/22 |
||||
Threads imperial pitches |
28-2TPI/26 |
||||
Threads diametral pitdhes |
50-4DP/24 |
||||
Threads module pitches |
0.5-7mm/18 |
||||
Range of feeds longitudinal |
0.063-2.52mm |
||||
Range of feeds cross |
0.027-1.07mm |
||||
Extenal diameter of the tailstock quill |
φ75mm |
||||
Max traverse of the tailstock quill |
150 |
||||
Quill taper |
NO.5(morse) |
||||
Max.travel of compound rest |
145mm |
||||
Max. cross slide travel |
360mm |
||||
Max. size of tool shank(WxH) |
25x25mm |
||||
Power of the main motor |
7.5kw |
||||
Overall dimension(L xWxH) |
(2700/3200/3700/4200/4700/5700)x1150x1800mm |
||||
Net weight |
2850/3150/3400 |
3200/3500/4000/ |
3550/3650/4200/ |
||
/3800/4200/4700kg |
4250/4500/5000kg |
4470/4750/5300kg |
|||

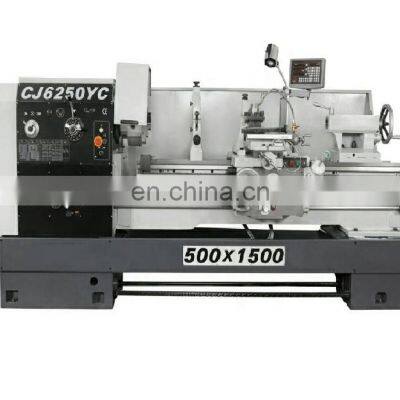

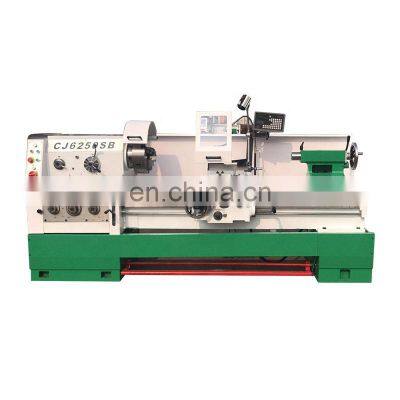

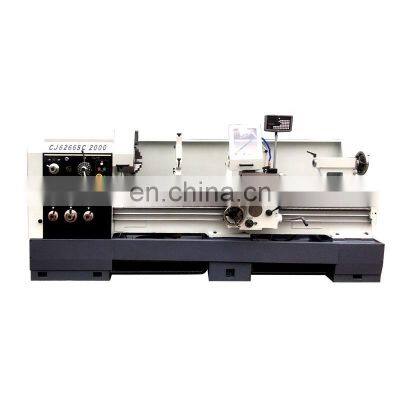

Details about the real pictures:
