C6253 530 mm diameter China metal manual lathe machine for sale
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
CD6241 410mm diameter engine manual lathe machine for sale
-
CQ6236F lathe machine metal lathe machine bench lathe with low price
-
HQ800V mini lathe machine with variable speed popular for hobby user
-
HQ500V variable speed metal lathe machine
-
D250V mini metal machine with variable speed for metal turning
-
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine
Product Description
Product Description

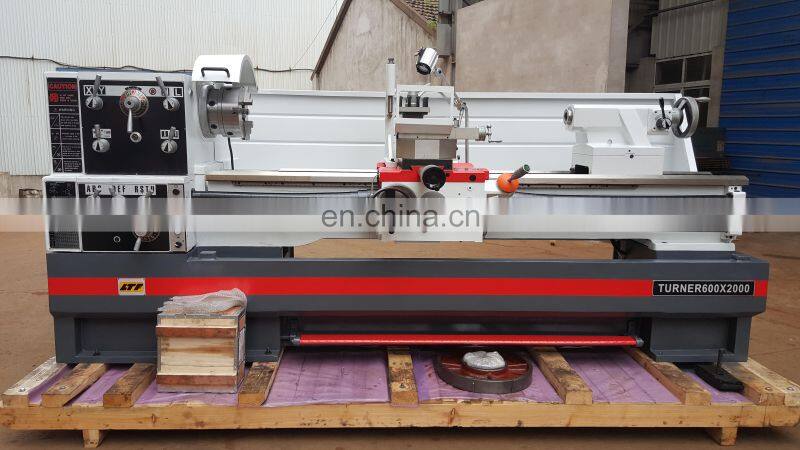

Universal heavy duty lathe machine C6253
Features:
Big spindle bore: 82mm
Bed width: 400mm
Max. swing over bed: 530mm
Main Technical Data
Model | C6253×1000 | C6253×1500 | C6253×2000 | ||
Swing over bed | Φ530mm(20 7/8") | Φ530mm(20 7/8") | Φ530mm(20 7/8") | ||
Swing over cross slide | Φ329mm(12 31/32") | Φ329mm(12 31/32") | Φ329mm(12 31/32") | ||
Swing in gap(D×W) | 765mm×218mm(D1-8)/765mm×240mm(A1-8) | 765mm×218mm(D1-8)/765mm×240mm(A1-8) | 765mm×218mm(D1-8)/765mm×240mm(A1-8) | ||
Height of center | 265mm(10 7/16") | 265mm(10 7/16") | 265mm(10 7/16") | ||
Distance between centers | 1015mm/1515mm/2015mm | 1015mm/1515mm/2015mm | 1015mm/1515mm/2015mm | ||
Width of bed | 400mm(15 3/4") | 400mm(15 3/4") | 400mm(15 3/4") | ||
Max. section of cutting tool | 25mm×25mm(1"×1") | 25mm×25mm(1"×1") | 25mm×25mm(1"×1") | ||
Total travel of cross slide | 320mm(12 5/8") | 320mm(12 5/8") | 320mm(12 5/8") | ||
Total travel of top slide | 200mm(7 7/8") | 200mm(7 7/8") | 200mm(7 7/8") | ||
Spindle bore | Φ82mm(3 1/4") | Φ82mm(3 1/4") | Φ82mm(3 1/4") | ||
Spindle nose | D1-8 or A1-8 | D1-8 or A1-8 | D1-8 or A1-8 | ||
Spindle morse taper in nose,in sleeve | ME90/M.T.#5 | ME90/M.T.#5 | ME90/M.T.#5 | ||
Spindle speeds number | 12 | 12 | 12 | ||
Spindle speeds range | 20-1600 R.P.M | 20-1600 R.P.M | 20-1600 R.P.M | ||
Leadscrew diameter&thread | 40mm(1 9/16")×4 T.P.I or pitch 6mm | 40mm(1 9/16")×4 T.P.I or pitch 6mm | 40mm(1 9/16")×4 T.P.I or pitch 6mm | ||
Threads imperial pithches | 4-112(50 NOS) | 4-112(50 NOS) | 4-112(50 NOS) | ||
Threads metric pithches | 0.25-7(24 NOS) | 0.25-7(24 NOS) | 0.25-7(24 NOS) | ||
Diametral pitches DP/DP | 4-112(50 NOS) | 4-112(50 NOS) | 4-112(50 NOS) | ||
Diametral pitches MP/MP | 0.25-14(34 NOS) | 0.25-14(34 NOS) | 0.25-14(34 NOS) | ||
Longitudinal feeds(imperial/metric) | 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) | 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) | 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) | ||
Cross feeds(imperial/metric) | 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) | 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) | 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) | ||
Total travel of tailstock quill | 180mm(7 5/64") | 180mm(7 5/64") | 180mm(7 5/64") | ||
Tails stock quill | Φ75mm(2 61/64") | Φ75mm(2 61/64") | Φ75mm(2 61/64") | ||
Taper tailstock quill | M.T.#5 | M.T.#5 | M.T.#5 | ||
Spindle drive motor | 10.0HP | 10.0HP | 10.0HP | ||
Coolant pump motor | 1/8HP(0.1KW) | 1/8HP(0.1KW) | 1/8HP(0.1KW) | ||
Machine dimension | 94"×38"×52"/114"×38"×52"/134"×38"×52" | ||||
Packing dimension | 98"×43"×71"/118"×43"×71"/138"×43"×71" | ||||
N.W | 2490KG/2750KG/3010KG | ||||
G.W | 2790KG/3090KG/3400KG | ||||
Products Show

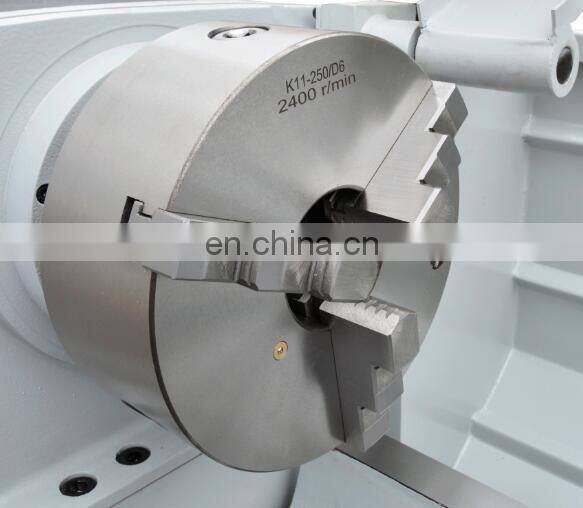

3 Jaw chuck

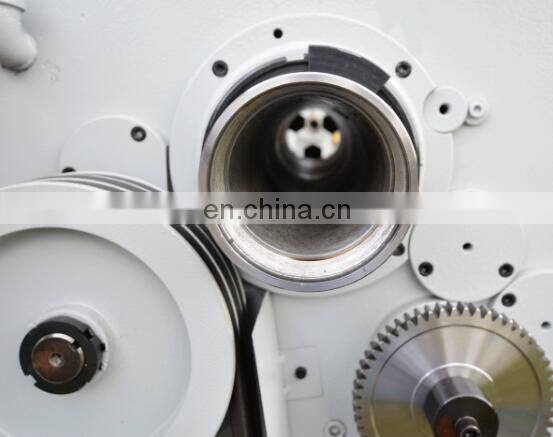

82 mm big spindle bore

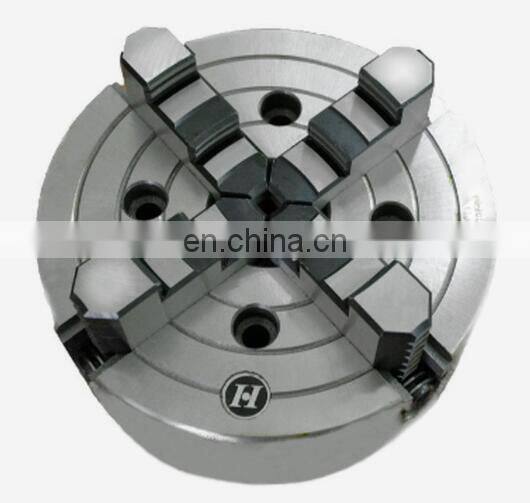

4 jaw chuck

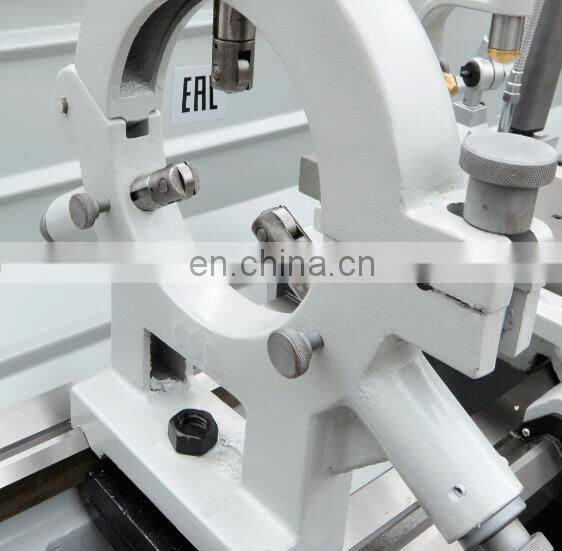

Steady rest

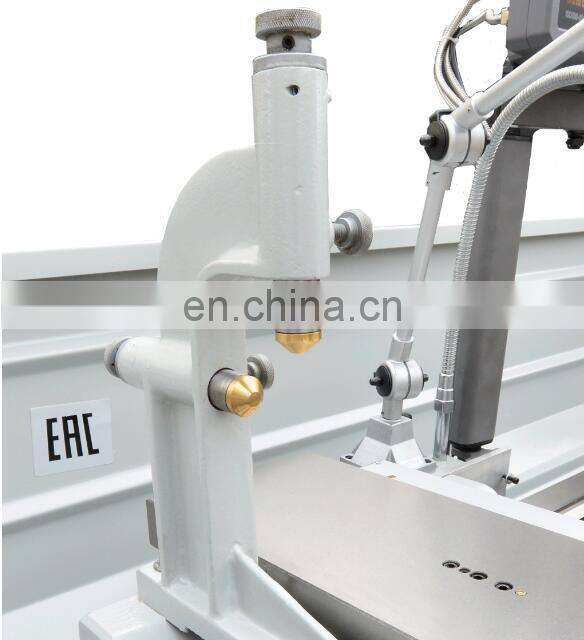

Follow rest

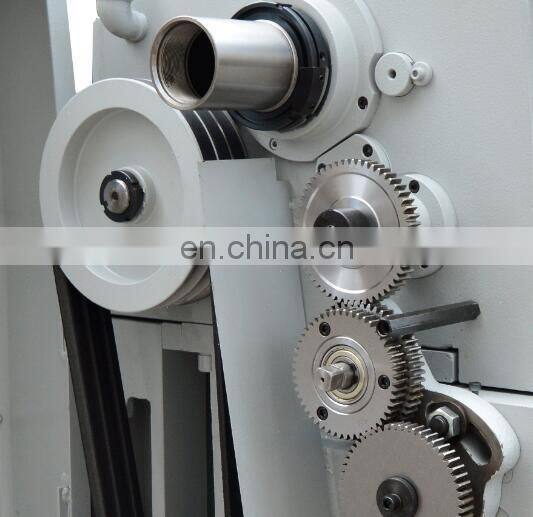

Change gears

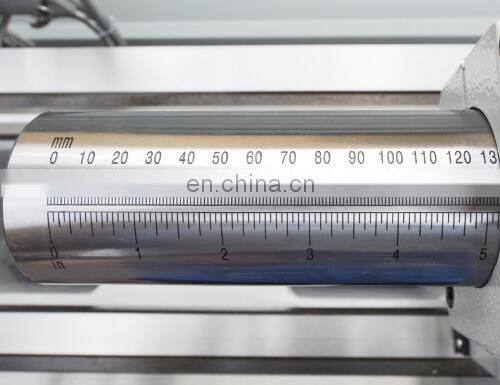

Tail stock 130 mm travel

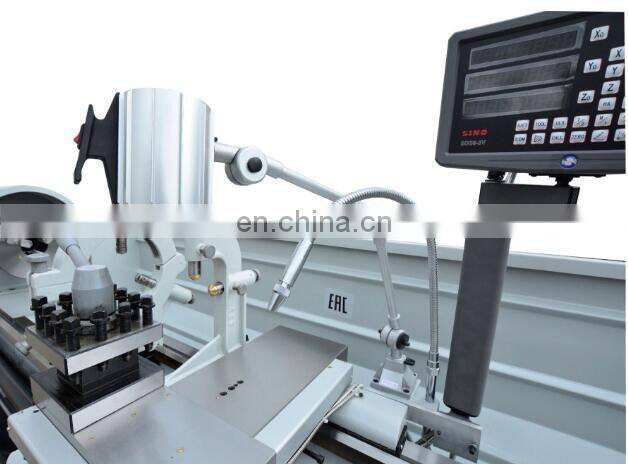

Famous Brand SINO DRO

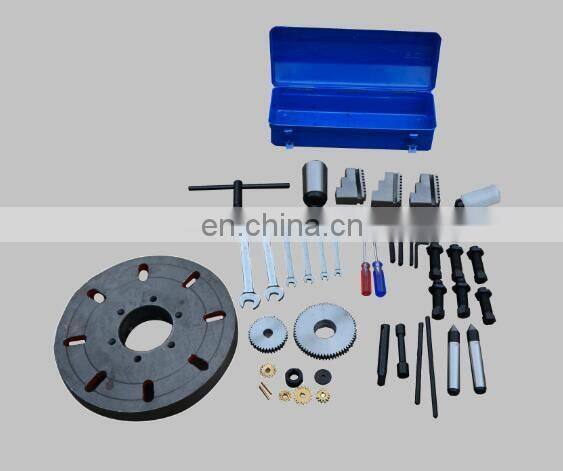

Other standard accessories

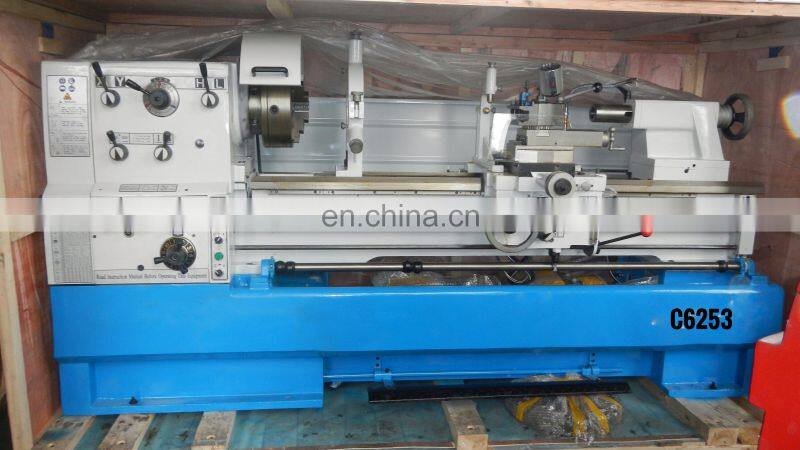

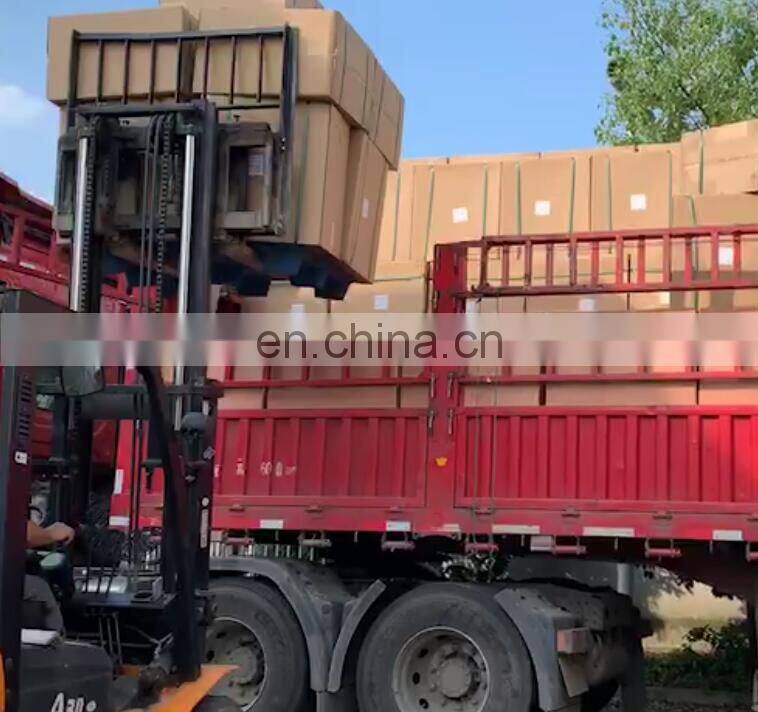

Product packaging
