Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection

Jingjiang Fuji Technology Co., Ltd.
4Yrs
Business license
Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection thumbnail-1
Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection thumbnail-2
Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection thumbnail-3
Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection thumbnail-4
Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection photo-1

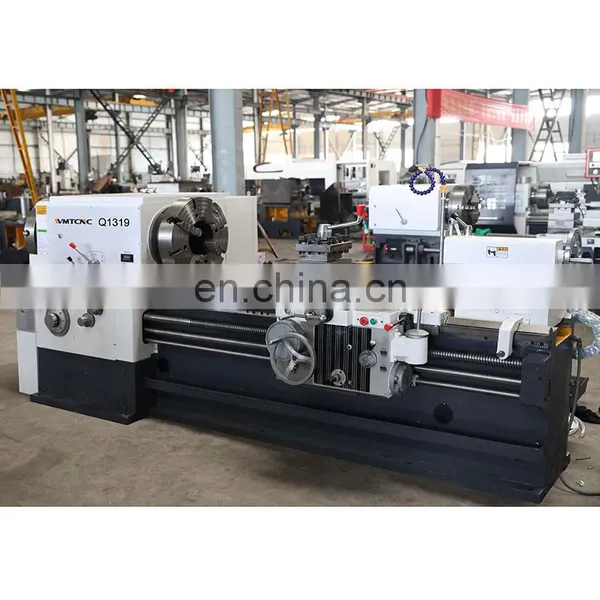

Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection photo-2

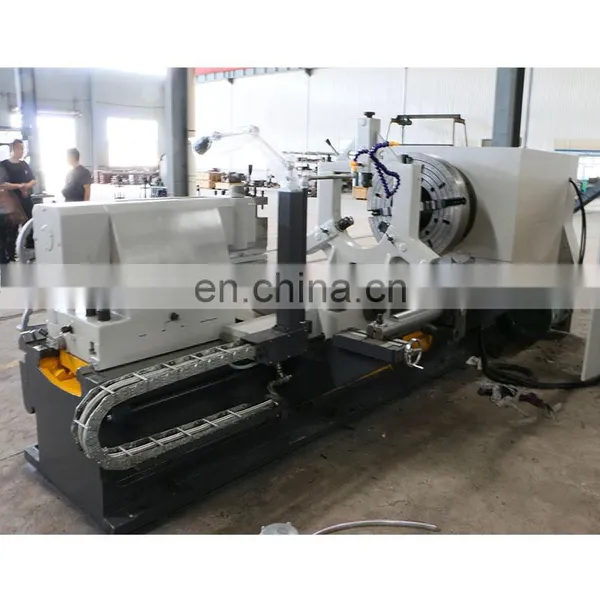

Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection photo-3

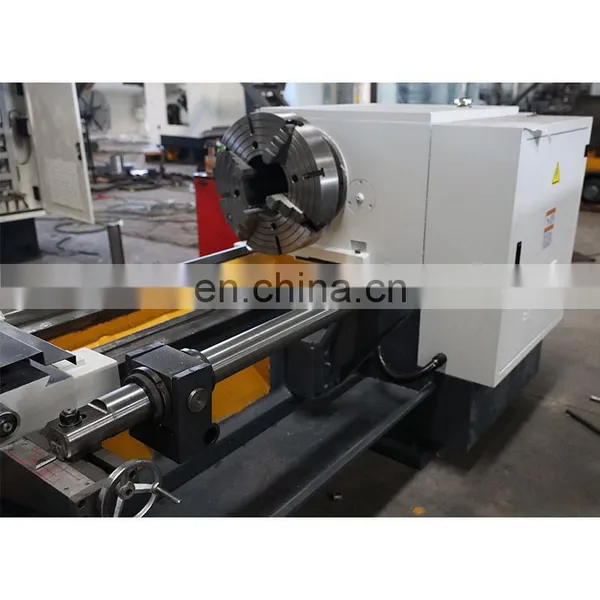

Lathe Machine Q1319 200mm Big Spindle Bore Pipe Threading Lathe Machine With CE Protection photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Pipe Threading Machine Q1319 Features:
1. Big spindle bore:200mm;
2. Double Chuck;
3. High precision lathe;
4. Casting Iron bed.

ITEM
                    UNIT

Q1313

Q1319

Q1322
Max dia.swing over bed
mm
630
670
Max dia.swing over cross slide
mm
350
380
Max.length of work-piece
mm
1500

Width of bed
mm
550

Spindle bore
mm
135
200
225

Power of spindle motor
Kw
11

Spindle speed
r/min
12-642
FWD.18 steps
24-300
FWD.12 steps
24-300
FWD.12 steps

Z axis feed grade/range
mm/r
26/0.07-1.33
26/0.07-1.33
26/0.07-1.33

X axis feed grade/range
mm/min
22/0.02-0.45
22/0.02-0.45
22/0.02-0.45

Carriage rapid traverse speed
mm/min
4000

Cross slide rapid traverse speed
mm
2300

Metric thread grade/range
T.P.I
52/1-224
24/1-14
24/1-14

Inch thread grade/range
mm
40/2-28
40/2-28
40/2-28

Module thread grade/range
D.P.
53/0.5-120
0.5-7.5
0.5-7.5

DP thread grade/range
mm
24/1-28
28-2
28-2

Traverse of cross slide
mm
320

Max. Traverse of turret
mm
200

Tailstock quill travel
mm
250

Tailstock quill Dia./taper
Φ100/莫氏5号（MT5#）

Chuck
mm
Φ380三爪卡盘
3-jaw manual
Φ520四爪卡盘
4-jaw manual

Overall dimensions(L*W*H)
mm
3657×1360×1480
3657×1360×1555
3657×1360×1480

Net weight
T
4.2
4.5
4.8
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
