Factory Sale QK1343 CNC Turning Lathe Pipe Threading Lathe Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
CJ6250YC tornos machine for metal work
-
CJ6250YC manual tornos lathemachine for metal work
-
CJ6280YC heavy duty manual lathe price
-
CQ6236F manual lathe machine metal lathe machine bench lathe with CE spindle bore 38mm
-
MPV300 mill lathe combo machine in sale from China.
-
MPV290 lathe mill combo machine with machine stand
Product Description
Technology Data

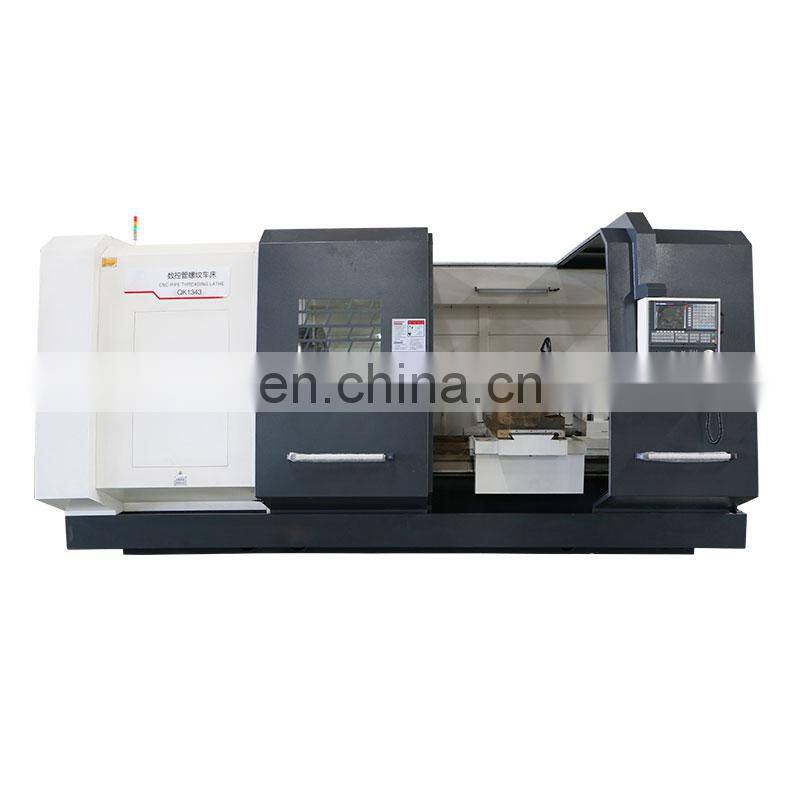

QK1343 CNC Turning Lathe Pipe Threading Lathe Machine
Main Feature:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
Specification | QK1319 | QK1322 | QK1327 | QK1330 | QK1335 | QK1343 | |||||||
Max dia.swing over bed(mm) | 630 | 670 | 800 | 800 | 1000 | 1000 | |||||||
Max dia.swing over cross slide(mm) | 340 | 380 | 480 | 480 | 610 | 610 | |||||||
Max.length of work-piece(mm) | 1500 3000 4000 5000 | 1500 | 1500 | 1500 | 1500 | 1500 | |||||||
Width of bed(mm) | 550 | 550 | 600/755 | 600/755 | 755 | 755 | |||||||
Spindle bore(mm) | 200 | 225 | 280 | 305 | 360 | 440 | |||||||
Power of spindle motor(kw) | 11 | 11 | 15 | 15 | 22 | 22 | |||||||
Mode of spindle speed | Two gears， smooth adjustment | Two gears， smooth adjustment | Two gears smooth adjustment | Two gears， smooth adjustment | Two gears， smooth adjustment | Two gears， smooth adjustment | |||||||
Range of spindle speed(r/min) | （L）:25-120 （H）:100-500 | （L）:25-120 （H）:100-500 | （L）:20-100 （H）:100-300 | （L）:20-100 （H）:100-300 | （L）: 30-130 （H）: 65-260 | （L）: 23-120 （H）: 65-258 | |||||||
Max.traverse of X/Z(mm) | X:350 Z:1250 | X:350 Z:1250 | X:450/550 Z:1250 | X:450/550 Z:1250 | X:550 Z:1250 | X:550 Z:1250 | |||||||
X/Z rapid traverse(r/min) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |||||||
Speed(r/min) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |||||||
Torgue(N.m) | 10 | 10 | 15/18 | 15/18 | 18 | 18 | |||||||
Power(kw) | 1.5 | 1.5 | 2.8 | 2.8 | 2.8 | 2.8 | |||||||
Z-axis motor | Speed(r/min) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||||||
Torgue(N.m) | 15 | 15 | 18/22 | 18/22 | 22 | 22 | |||||||
Power(kw) | 2.3 | 2.3 | 3.8 | 3.8 | 3.5 | 3.5 | |||||||
Tailstock quill | Diameter(mm) | 100 | 100 | 100 | 100 | 140 | 140 | ||||||
Travel(mm) | 250 | 250 | 250 | 250 | 300 | 300 | |||||||
Taper | Morse NO.5 | Morse NO.5 | Morse NO.6 | Morse NO.6 | Morse NO.6 | Morse NO.6 | |||||||
Electric tool-post | Model | LDB4-6163A | LDB4-6180 | LDB4-6180 | LDB4-6180 | SLD170A04N | SLD170A04N | ||||||
No.of tool stations | Vertical four-station | Vertical four-station | Vertical four-station | Vertical four-station | Vertical four-station | Vertical four-station | |||||||
Dimension(mm) | 240×240 | 280×280 | 280×280 | 280×280 | 300×300 | 300×300 | |||||||
Turret indexing time(s) | 2.6 | 2.6 | 2.6 | 2.6 | 5.6 | 5.6 | |||||||
Chuck | K11-500 three jaw chuck | K11-500 three jaw chuck | K11-630 three jaw chuck | K11-630 three jaw chuck | K66-850 four jaw electric chuck | K66-1000 four jaw electric chuck | |||||||
Positioning accuracy(mm) | 0.020 | 0.020 | 0.020 | 0.020 | 0.020 | 0.020 | |||||||
Repositioning accuracy(mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | |||||||
Overall dimensions(L*W*H)(mm) | 3657×1555×1360 | 3657×1555×1360 | 4600×2060/2100×2100 | 4600×2060/2100×2100 | 5000×2100×2100 | 5000×2100×2100 | |||||||
Machine weight(kgs) | 4500 | 4600 | 7000/9000 | 7500/9500 | 12000 | 13000 | |||||||
Standard Accessories:
1. Cooling system 2. Work lamp
3. Auto-lubricating system
4. X/Z feeding servo motor
5. 4-Position electrical tool post
6. Unitary iron casting machine stand
7. Manual 3-jaw chuck 2 pcs
Optional Accessories:
1. GSK980TDC, GSK218M controller
2. Siemens 808D controller
3. Siemens 808D Advance controller
4. Siemens 828D controller
5. Fanuc Oi TF controller
6. 6/8-Position electrical tool post

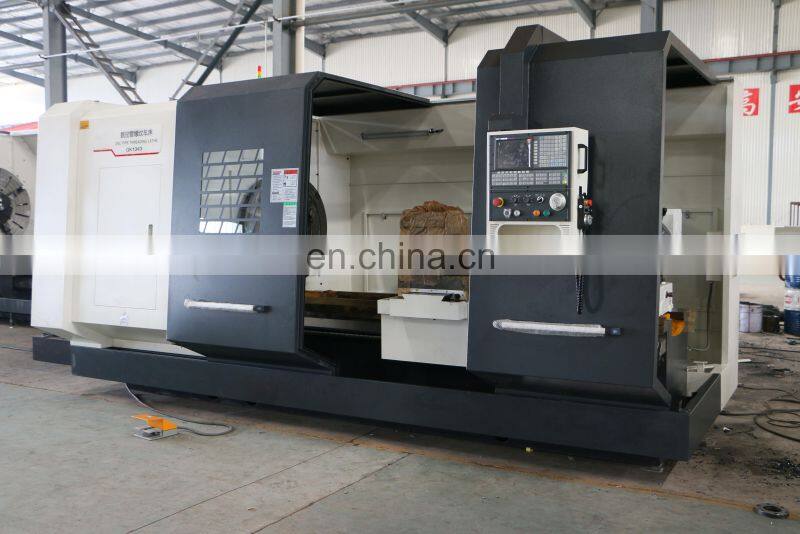

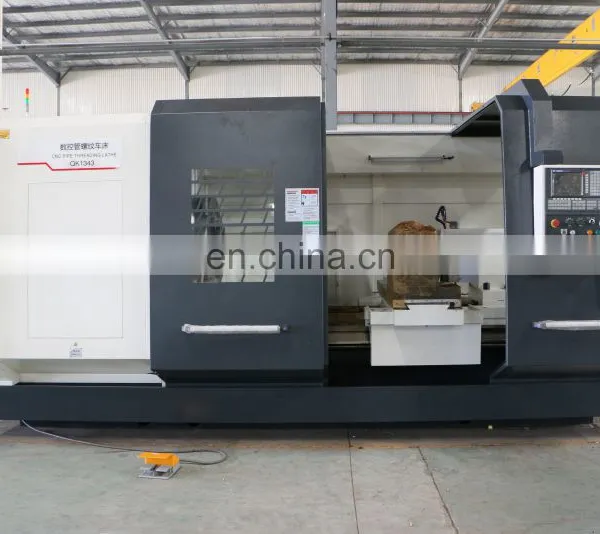

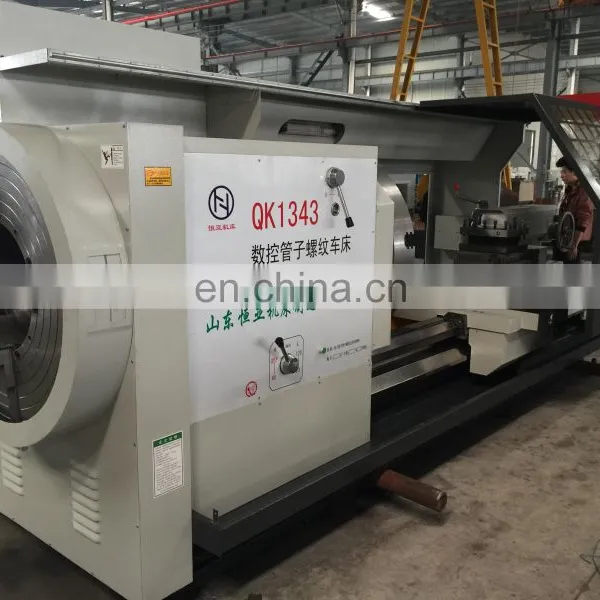

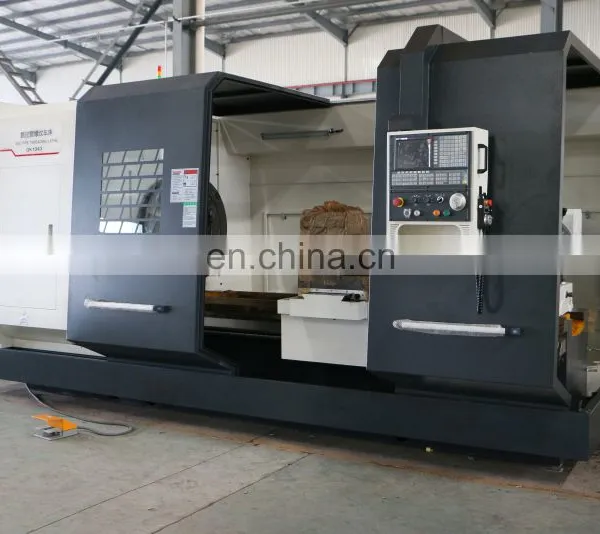

Machine pics
GSK980TDC controller
Siemens 808D controller
Fanuc Oi TF controller
Packing & Delivery
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
