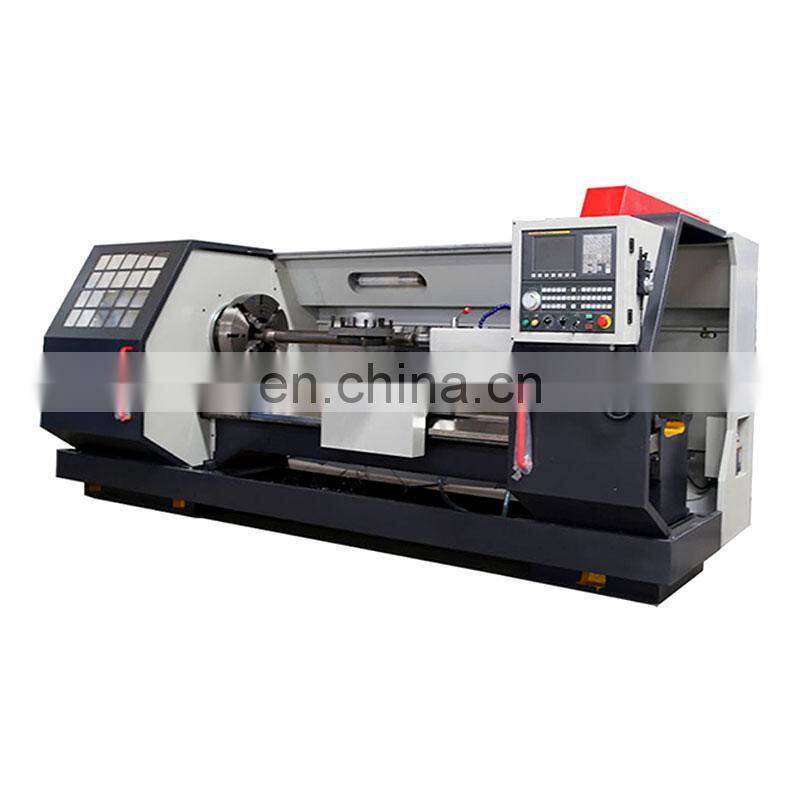

QK1322 Automatic Heavy Duty CNC Pipe Threading Machine

QK1322 Automatic Heavy Duty CNC Pipe Threading Machine thumbnail-1
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine thumbnail-2
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine thumbnail-3
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine photo-1
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine photo-2
QK1322 Automatic Heavy Duty CNC Pipe Threading Machine photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Technology Data

Features:

High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification
QK1319
QK1322
QK1327
QK1330
QK1335
QK1343
Max dia.swing over bed(mm)
630
670
800
800
1000
1000
Max dia.swing over cross slide(mm)
340
380
480
480
610
610
Max.length of work-piece(mm)
1500
1500
1500
1500
1500
1500
Width of bed(mm)
550
550
600/755
600/755
755
755
Spindle bore(mm)
200
225
280
305
360
440
Power of spindle motor(kw)
11
11
15
15
22
22
Mode of spindle speed
Two gears， smooth adjustment

Two gears， smooth adjustment
Two gears
smooth adjustment
Two gears， smooth adjustment
Two gears， smooth adjustment

Two gears， smooth adjustment
Range of spindle speed(r/min)
（L）:25-120
（H）:100-500
（L）:25-120
（H）:100-500
（L）:20-100
（H）:100-300
（L）:20-100
（H）:100-300
（L）:
30-130
（H）:
65-260
（L）:
23-120
（H）:
65-258
Max.traverse of X/Z(mm)
X:350
Z:1250
X:350
Z:1250
X:450/550
Z:1250
X:450/550
Z:1250
X:550
Z:1250
X:550
Z:1250
X/Z rapid traverse(r/min)
4000
4000
4000
4000
4000
4000


X-axis motor
Speed(r/min)
1500
1500
1500
1500
1500
1500
Torgue(N.m)
10
10
15/18
15/18
18
18
Power(kw)
1.5
1.5
2.8
2.8
2.8
2.8


Z-axis motor
Speed(r/min)
1500
1500
1500
1500
1500
1500
Torgue(N.m)
15
15
18/22
18/22
22
22
Power(kw)
2.3
2.3
3.8
3.8
3.5
3.5


Tailstock quill
Diameter(mm)
100
100
100
100
140
140
Travel(mm)
250
250
250
250
300
300
Taper
Morse NO.5
 Morse NO.5
Morse NO.6
Morse NO.6
 Morse NO.6
 Morse NO.6




Electric tool-post
Model
LDB4-6163A
LDB4-6180
LDB4-6180
LDB4-6180
SLD170A04N
SLD170A04N
No.of tool stations
Vertical four-station
Vertical four-station
Vertical four-station
Vertical four-station
Vertical four-station
Vertical four-station
Dimension(mm)
240×240
280×280
280×280
280×280
300×300
300×300
Turret indexing time(s)
2.6
2.6
2.6
2.6
5.6
5.6
Chuck
K11-500 three jaw chuck
K11-500 three jaw chuck
K11-630 three jaw chuck
K11-630 three jaw chuck
K66-850 four jaw electric chuck
K66-1000 four jaw electric chuck
Positioning accuracy(mm)
0.020
0.020
0.020
0.020
0.020
0.020
Repositioning accuracy(mm)
0.01
0.01
0.01
0.01
0.01
0.01
Overall dimensions(L*W*H)(mm)
3657×1555×1360
3657×1555×1360
4600×2060/2100×2100
4600×2060/2100×2100
5000×2100×2100
5000×2100×2100
Machine weight(kgs)
4500
4600
7000/9000
7500/9500
12000
13000

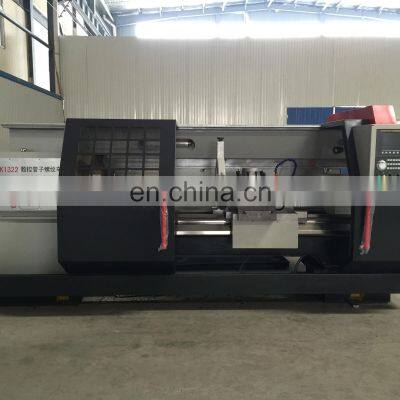

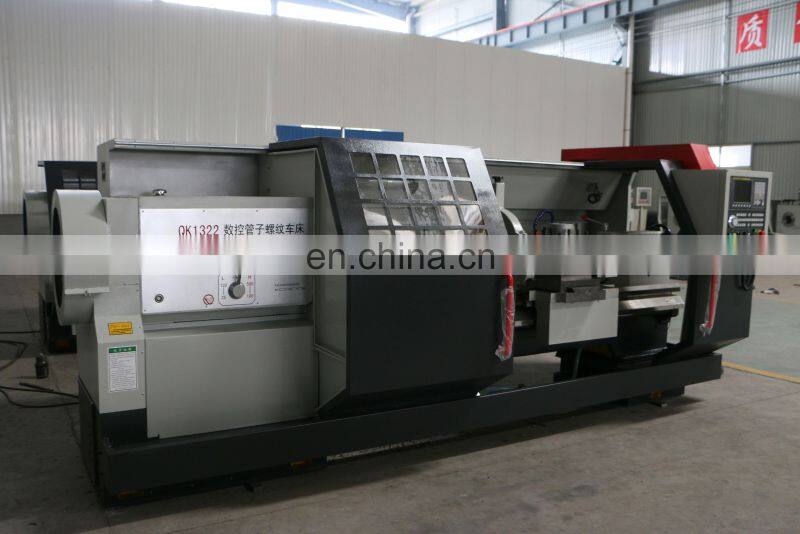

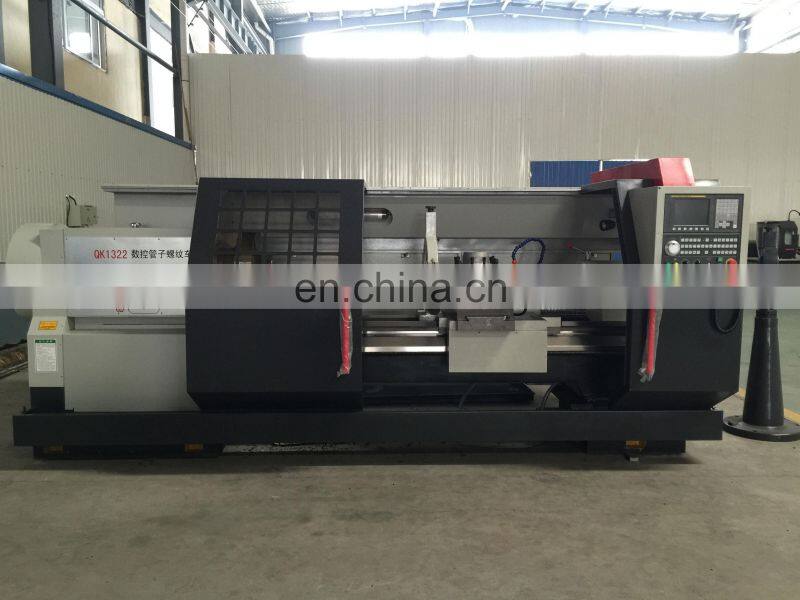

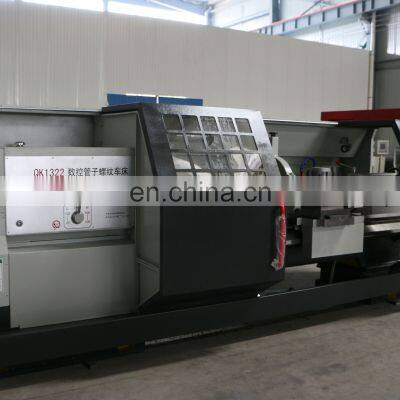

Machine pics

GSK980TDC controller


Siemens 808D controller


Fanuc Oi TF controller



Standard Accessories:

1. Cooling system
2. Auto-lubricating system
3. Work lamp
4. GSK-980TDc controller with feeding servo motor
5. 4-Position electrical tool post
6. Unitary iron casting machine stand
7. Manual 3-jaw chuck 2 pcs



Optional Accessories:
1. GSK218M controller

2. Siemens 808D controller

3. Siemens 808D Advance controller

4. Fanuc Oi TF controller
5. 6/8-Position electrical tool post
