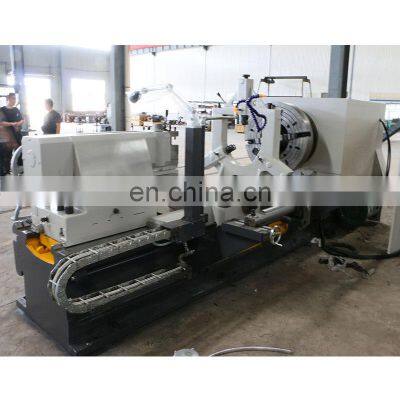

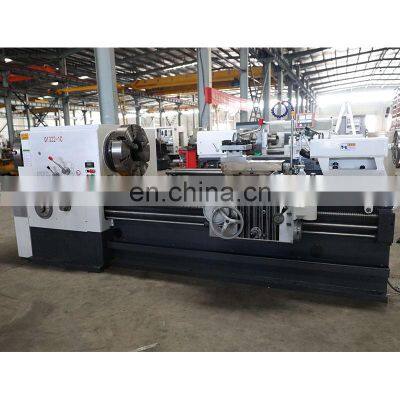

Q1322 (225mm Big Spindle Bore) Pipe Threading Lathe Machine With CE Protection

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

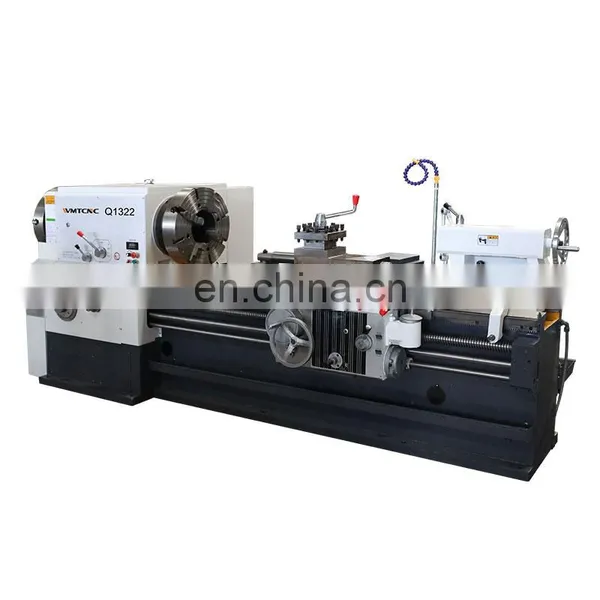

Pipe Threading Machine Q1322manufactured by WMT

1.Big spindle bore:225mm

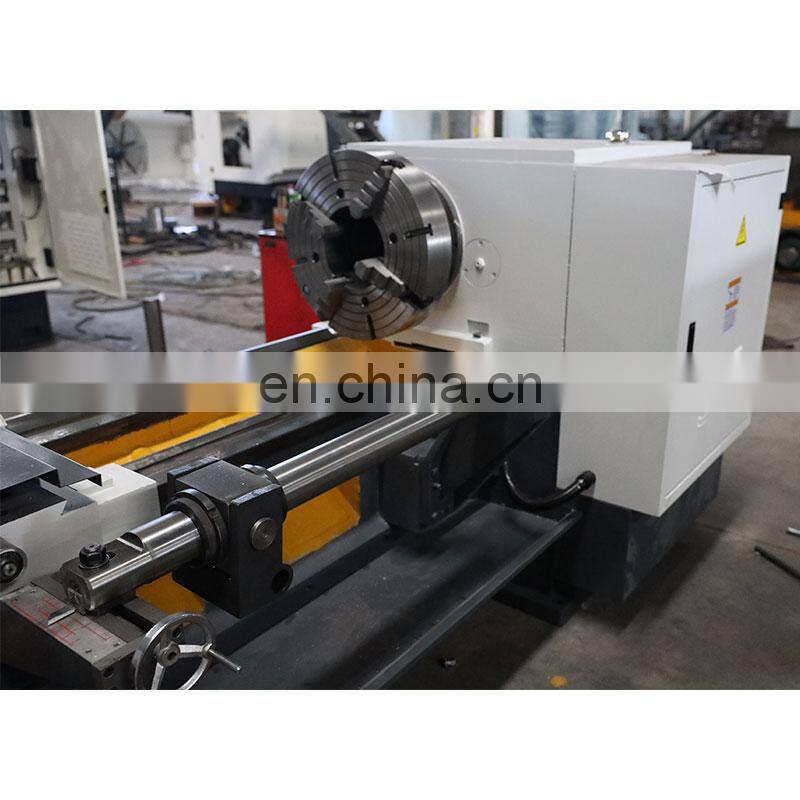

2.Double Chuck

3.High precision lathe

4.Casting Iron bed

Item	Unit	Q1313	Q1319	Q1322
Max dia.swing over bed	mm	630			670
Max dia.swing over cross slide	mm	350			380
Max.length of work-piece	mm	1500
Width of bed	mm	550
Spindle bore	mm	135	200	225
Power of spindle motor	Kw	11
Spindle speed	r/min	12-642 FWD.18 steps	24-300 FWD.12 steps	24-300 FWD.12 steps
Z axis feed grade/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
X axis feed grade/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
Carriage rapid traverse speed	mm/min	4000
Cross slide rapid traverse speed	mm/min	2300
Metric thread grade/range	mm	52/1-224	24/1-14	24/1-14
Inch thread grade/range	T.P.I	40/2-28	40/2-28	40/2-28
Module thread grade/range	mm	53/0.5-120	0.5-7.5	0.5-7.5
DP thread grade/range	D.P.	24/1-28	28-2	28-2
Traverse of cross slide	mm	320
Max. Traverse of turret	mm	200
Tailstock quill travel	mm	250
Tailstock quill Dia./taper	mm	Φ100/（MT5#）
Chuck		3-jaw manual	4-jaw manual
Overall dimensions(LWH)	mm	3657×1360×1480	3657×1360×1555	3657×1360×1480
Net weight	T	4.2	4.5	4.8
