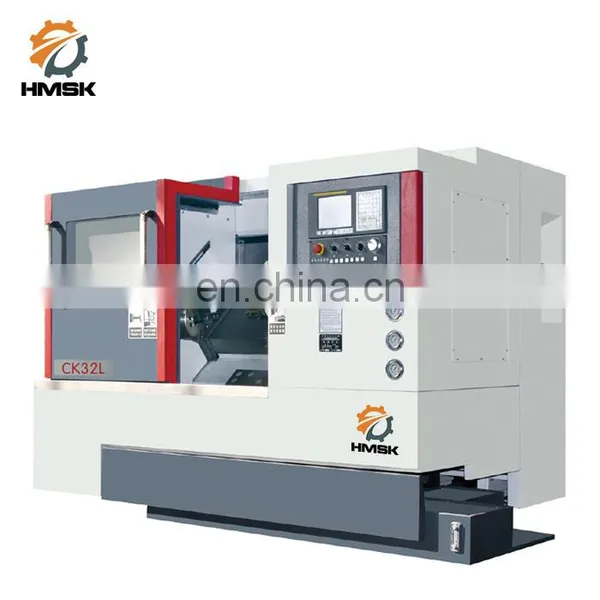

CK32L High Precision Slant Bed Cnc Lathe for Metal Processing in China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision CK1113 Swiss Type Cnc Lathe With Competitive PriceNegotiableMOQ: 1 -
CK1113-C Economical Swiss Type Cnc Lathe With CENegotiableMOQ: 1
-
CK6132X1000 Flat Bed Cnc Lathe Machine for Metal WorkingNegotiableMOQ: 1
-
Siemens 808DA Cnc Flat Bed Lathe CK6132x500 With High PrecisionNegotiableMOQ: 1
-
Siemens 808DA Factory Direct Sale Cnc Flat Bed Lathe CK6132x500 for Metal WorkingNegotiableMOQ: 1
Features:
1) High rigid 45 degree slant bed
2) X/Z Taiwan linear guideway
3) X/Z Taiwan precision ballscrew
4) A2-5 spindle unit
5) Artistic apprearance with high precision

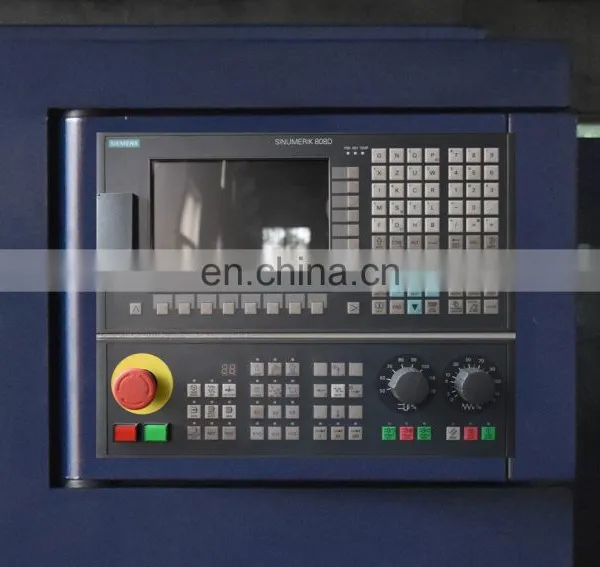

6) GSK, Siemens, Fanuc CNC system optional
Specification |
CK32L |
Max.swing over bed |
Ф320mm |
Max.swing over carriage |
Ф180mm |
Max. cutting length |
450mm |
Rail width |
284mm |
Spindle nose |
A2-5 |
Spindle bore |
56mm |
Taper of spindle bore |
1:20 |

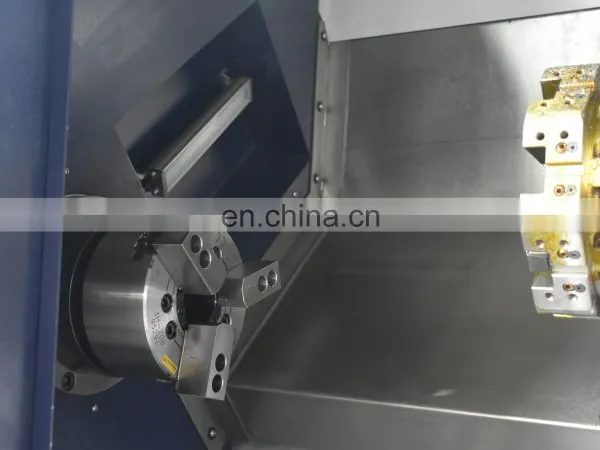

Chuck size |
6" |
Range of spindle speed |
150-4200rpm |
X-axis travel |
190mm |
Z-axis travel |
450mm |
X/Z rapid speed |
20/20m/min |

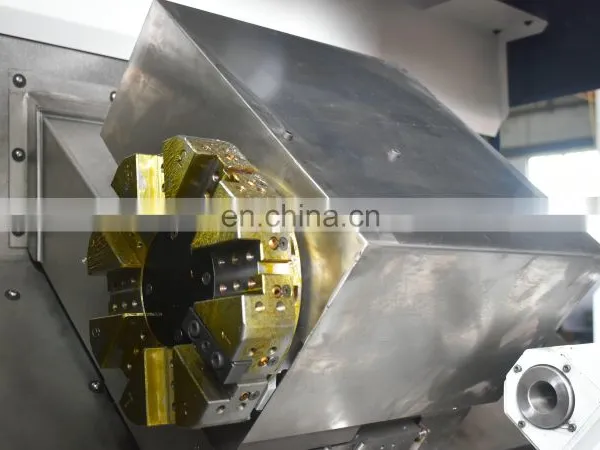

Electronic turret |
8 |
Max.section of tool |
20x20mm |
Stroke of tailstock sleeve |
80mm |
Diameter/Hole of tailstock sleeve |
Ф60mm/MT4 |
Main motor power |
4kw (optiona:5.5kw) |
Coolant pump power |
370w |
Overall dimensions L x W x H |
2300x1550x1750mm |
Packing size L x W x H |
2500x1750x2000mm |
Net weight |
2200kg |
Gross weight |
2600kg |
