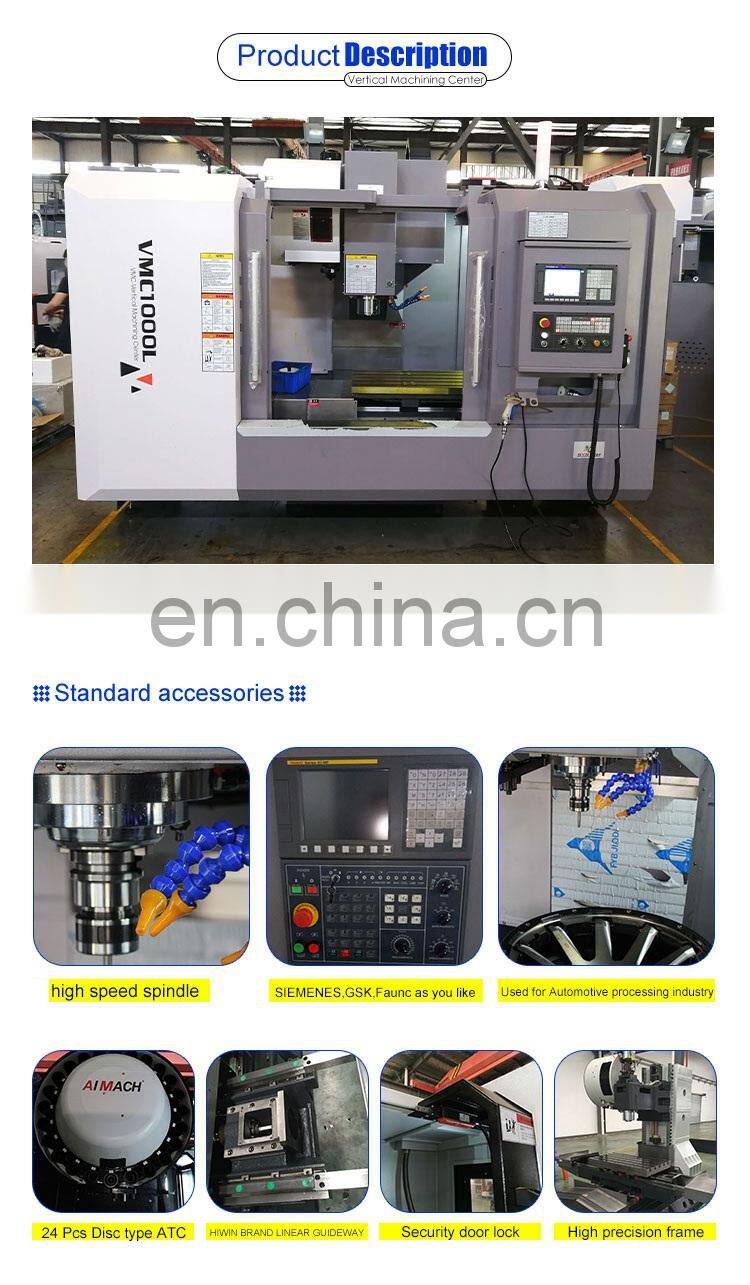

Product Description

CNC milling machine vertical machinery center Product Application
All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched, preeliminate backlash and temperature
rise,so that the machine can achieve stability of the positioning and repeatability accuracy. Besides,the X/Y/Z axis use precision
linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy
and long working life.

Main specification

Specification	VMC1300L
Worktable size(LxW)	1400x700mm
T-slot (NxWx D)	5x18x115mm
X/Y/Z axis travel	1300/700/700mm
Distance from spindle center to column	775mm
Distance from spindle nose to worktable surface	103-803mm
Spindle taper	BT50
Spindle power	11/15kw
Max.spindle speed	6000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	24/24/15m/min
X/Y/Z axis ball screw	4012

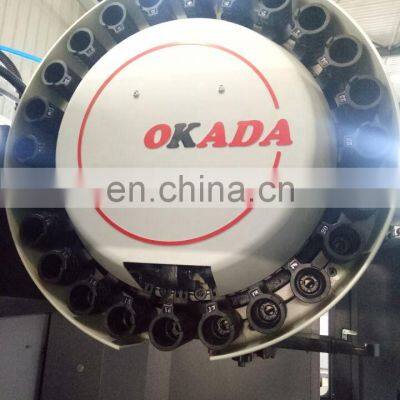

Tool magazine capacity	24t
Tool change time(T-T)	3s
Positioning accuracy(X/Y/Z)	±0.010mm
Re-positioning accuracy(X/Y/Z)	±0.005mm
LxWxH	3330x2880x3250mm
Max.loading of worktable	1000kgs
Machine weight	11000kgs

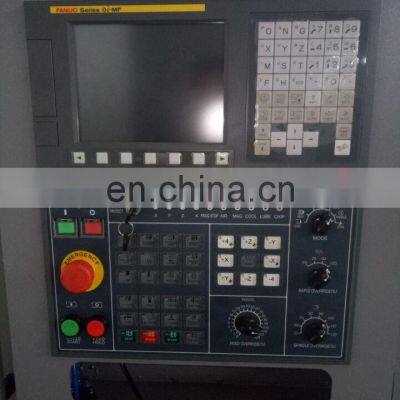

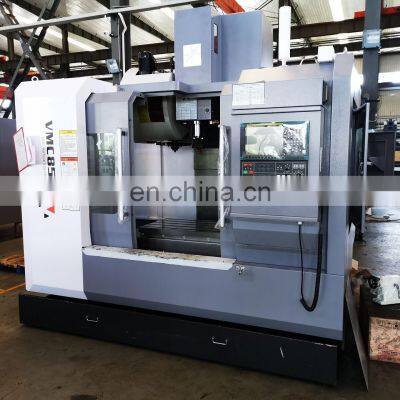

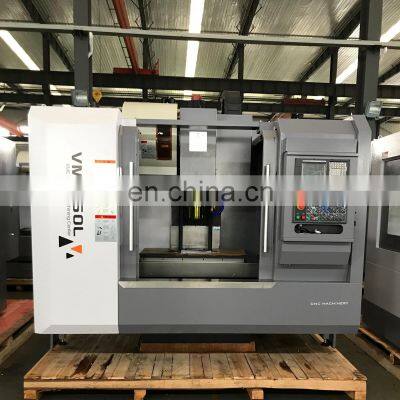

Machine Show:

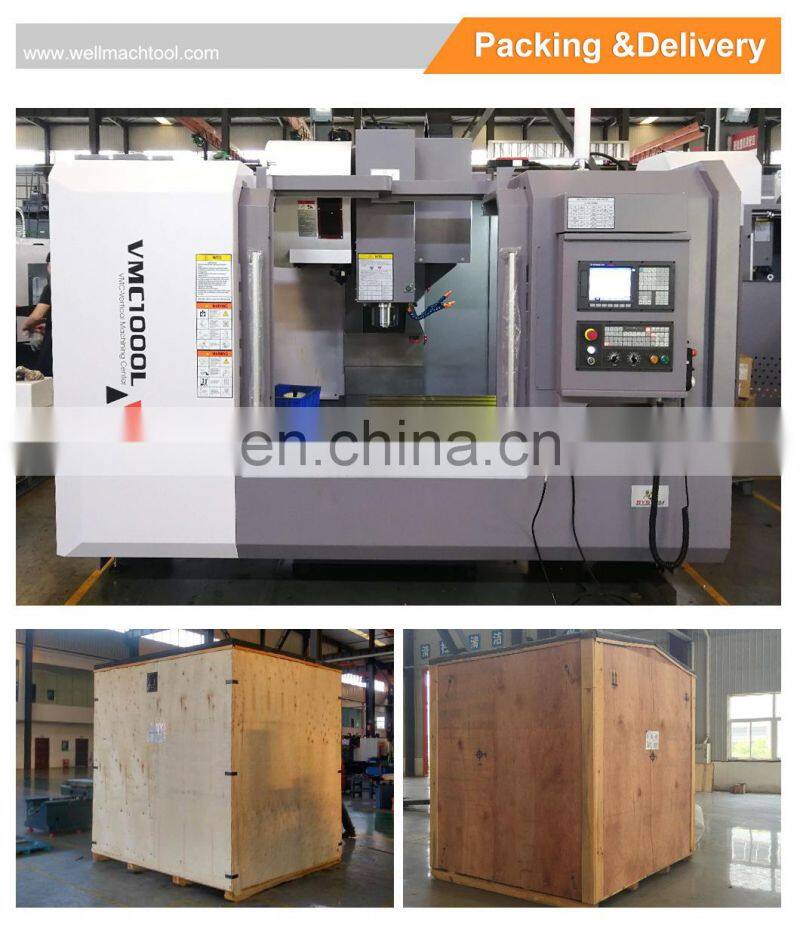

Packing & Delivery
