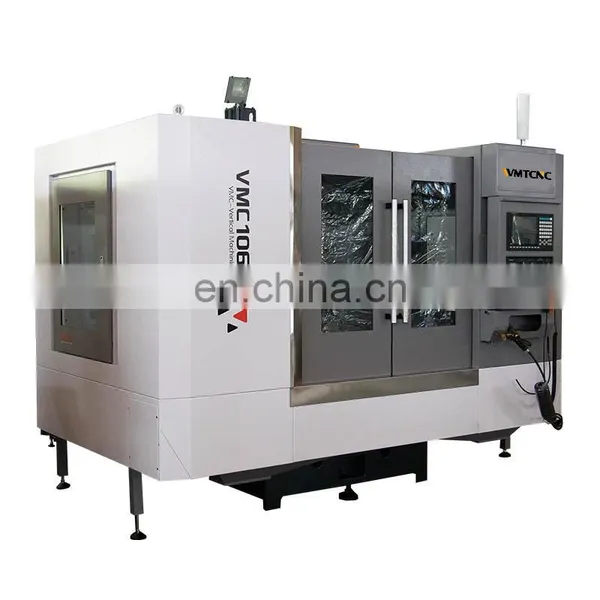

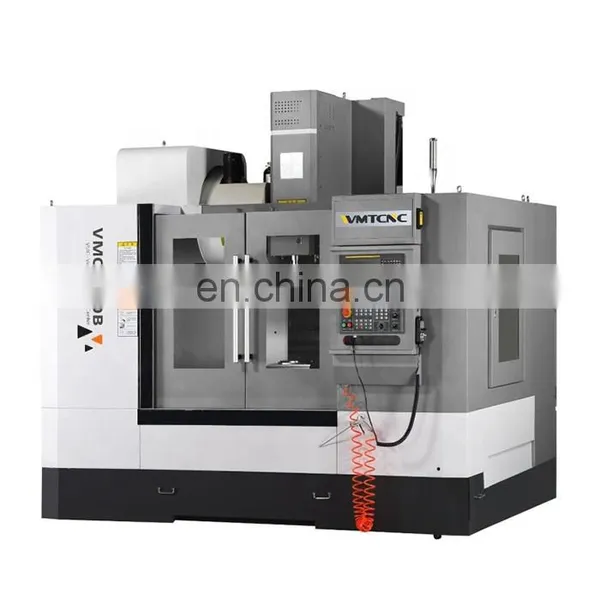

Vertical Milling Center VMC1060B 5 Axis China Cnc Milling Machine Machining Center
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Milling Center VMC640L Linear Guideway CNC Milling Machine Price With Good PrecisionNegotiableMOQ: 1 -
VMC500L 500/400/450 mm Cnc Machining CenterNegotiableMOQ: 1
-
VMC1300L 4 Axis CNC Mill Machinery Center for SaleNegotiableMOQ: 1
-
WMTCNC High Speed Vertical Milling Center VMC850L Cnc Milling Machine With Linear GuidewayNegotiableMOQ: 1
-
3 Axis Cnc Milling Machine VMC650 Vertical Machining Center With CNC Control SystemNegotiableMOQ: 1
Product Description
Main Features:
1. This machine is designed with vertical frame layout.
2. The column is mounted on the machine body, spindle box slides on the column forming Z axis motion, saddle slides on the machine body forming Y axis motion, worktable slides on the saddle forming X axis motion.
3. Three axes are all linear guideway with higher feed speed and higher precision.
4. We use high quality gray cast iron for machine body, column, saddle, worktable, spindle box with resin sand technology and 2 times aging treatment to eliminate the internal residual stress of material.
5. These parts are all optimized by SolidWorks software, which improves much the rigidity and stability not only for these parts but the machine.
6. Also it will restrain the deformation and vibration caused by cutting.
7. The important parts are all imported from world famous brand to make the machine with higher stability and durability.
8. This machine can achieve the process of milling, drilling, reaming, boring, reaming, tapping and usually be used for, mining, automotive, mold, instrumentation and other mechanical processing industries.
9. It can be used for all kinds of high precision and much process models.
10. It is good for small and medium-sized, multi-variety production, also it can put into automatic production line.
Specification |
Unit |
VMC1060B |
Worktable size |
mm |
1200*600 |
T-slot size |
mm |
5-18*100 |
Max. load bearing of worktable |
kg |
800 |
3 axis Travel X/Y/Z |
mm |
1000/620/630 |
Distance from column to spindle center |
mm |
667 |
Distance from table surface to spindle nose |
mm |
110-740 |

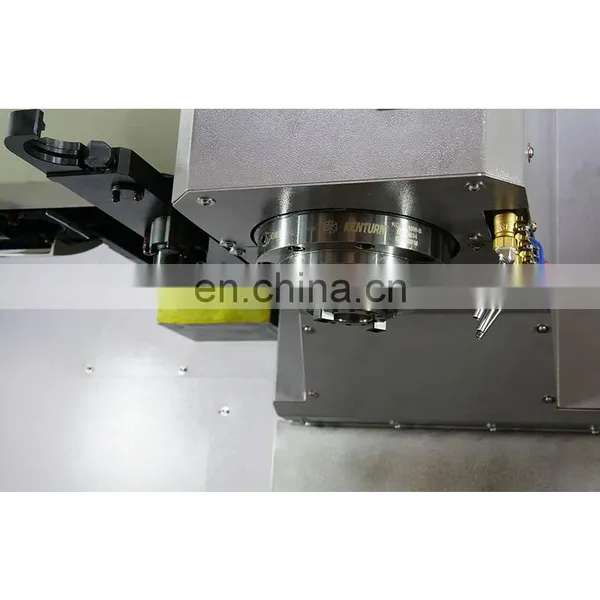

Spindle hole taper |
BT40 |
|
Spindle power |
kw |
11/15 |
Max. spindle speed |
rpm |
8000 |
Max. feed speed |
mm/min |
12000 |
Rapid feed speed |
m/min |
36/36/32 |

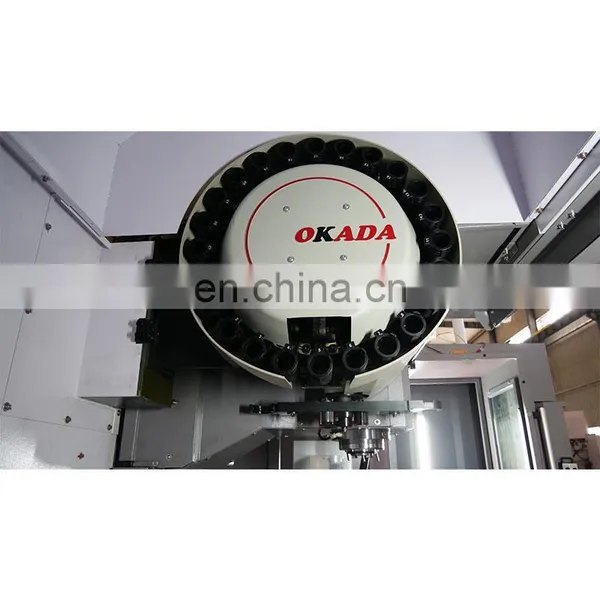

Tool magazine capacity |
T |
24 |
Tool change time |
S |
2.5 |
Positioning accuracy |
mm |
0.008 |
Re-positioning accuracy |
mm |
0.004 |
Machine dimension |
mm |
2856*2820*2820 |
Machine weight |
kg |
6500 |
Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
