Pvc/paper Automatic Cross Cutting Machine 20 Production Capacity High Quality Optional 1400mm 120
- T/T Credit Card
You May Like
-
Automatic Roll to Sheet Aluminium Foil Cutter
-
Printed Paper Photo Paper Sheet Cutting Machine
-
Precise Size Setting PVC/PP/PET/paper Cutting Machine
-
Pvc Sheet Cutter Machine ( Cutting Machine)
-
PET / PC / PVC / PCB / FPC Sheeting Machine With Automatic Unwind
-
Cutting Machine Guillotine PP PET Plastic PVC 180 M/min Production Capacity +/-0.1mm 220v50hz 1200*900*1280MM 400w
Product Description
automatic cross cutting machine
PVC/Paper automatic cross cutting machine
1. Electrical equipment listing:
Touch Screen | KUNLUN TONGTAI | Beijing China |
Programmable Controller | MITSUBISHI | Made in Japan |
Servo Driver | Delta | Made in Taiwan |
Servo Motor | Weichuang | Made in Shenzhen |
Motor of cutting knife | TPG | Made in Japan |
AC Contactor | RENMIN | Shanghai Made in China |
20A Solid State Relay | Guguang | Shanghai Made in China |
Electric eye | Panasonnic | Made in Japan |
2. Data
Model | DP-1400 sheet cutter |
Max Feeding Width ( mm ) | 1420mm |
Cutting width | 1-1400mm |
Slitting width | 25-1400mm |
Cutting length | 1- 9999.9mm |
Max unwinding diameter | 800mm |
Main Engineer Power ( kw ) | 2.2 |
Speed ( t/m ) | 80 |
Size ( mm ) | 2000*2100*1320 |
Weight ( kg ) | 1500 |
Power | 380 V 50HZ |
Price | please inquiry |
Shipping term | FOB Shanghai |
Delivery time | 30 days after received down payment |
Payment terms | L/C at sight or T/T advanced |
3. Functional characteristics:
This machine is suitable for cross cutting the web-form materials. It has features such as computer control, converter speed regulation, constant-length setting, automatic counter, and sound-ray alarm system, etc. Its compact in structure, innovative in design, and high in automation. It is necessary equipment of cross cutting the web-form materials into sheet form materials.
Slitting function can choose not need . with slitting function must have function of rectification function , standard machine with rectification function , slitting function
4, Machine Picture :

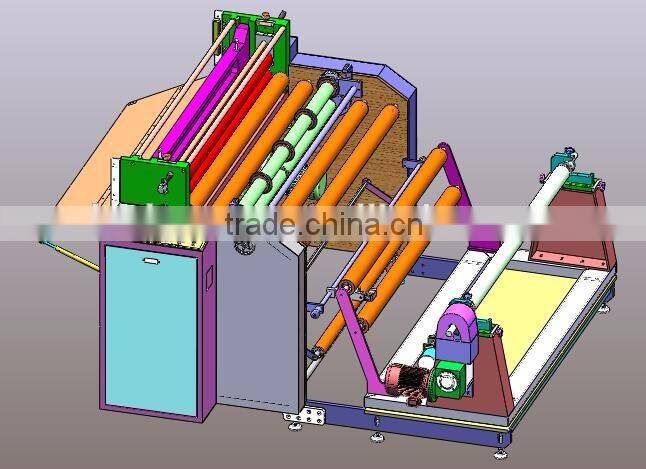

Drawing :

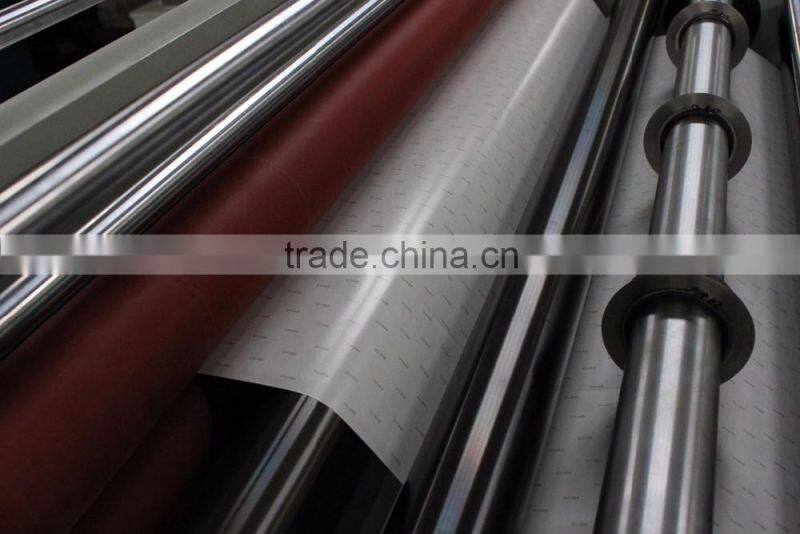

detail picture

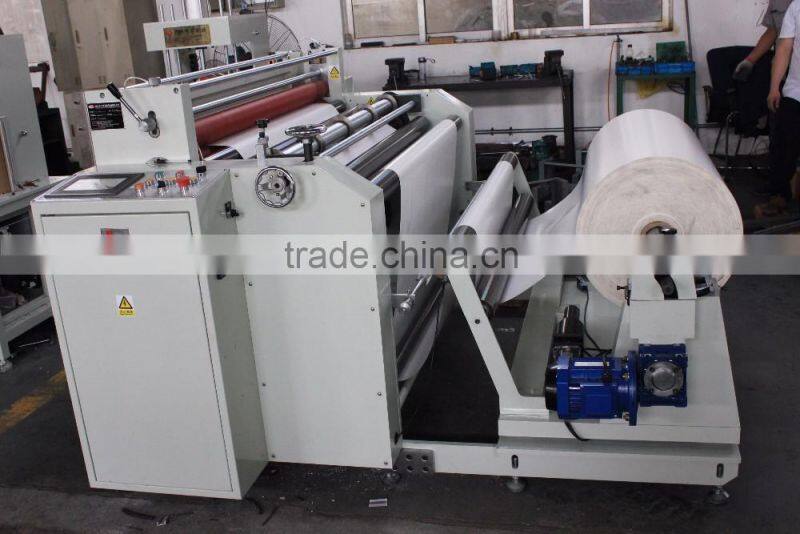

automatic cross cutting machine
paper cutting machine

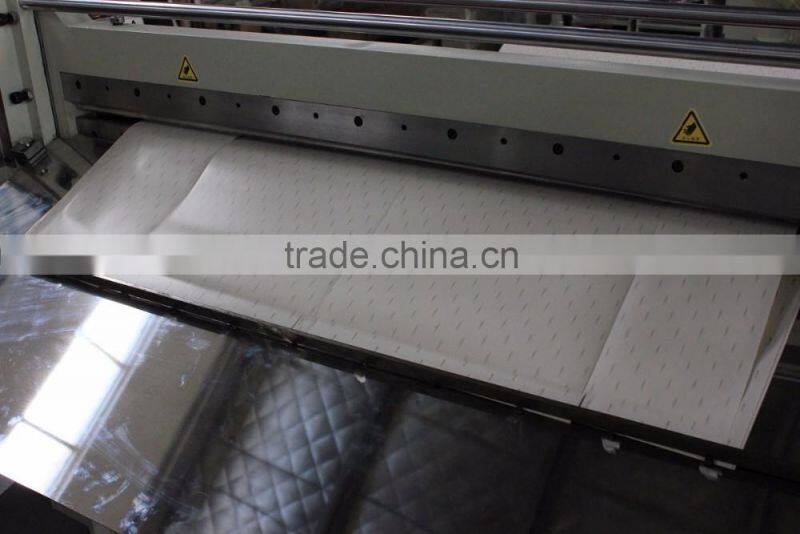

automatic paper cross cutting machine after cutting side :

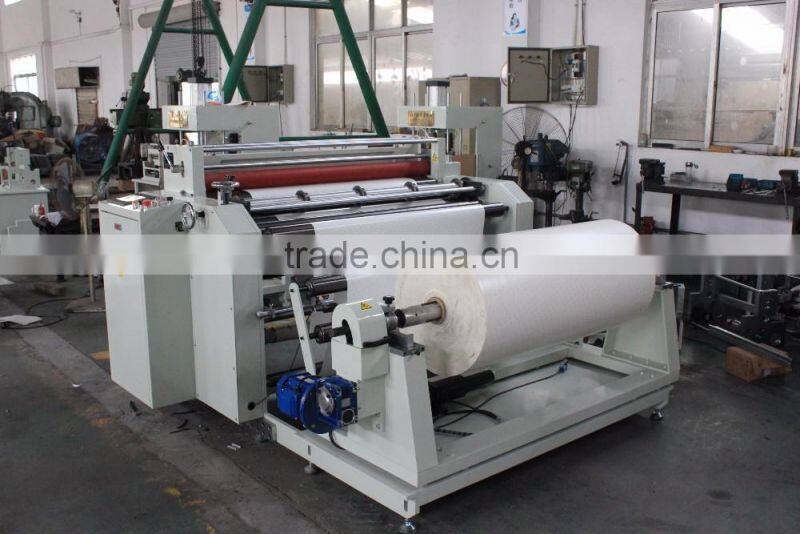

unwinding view :

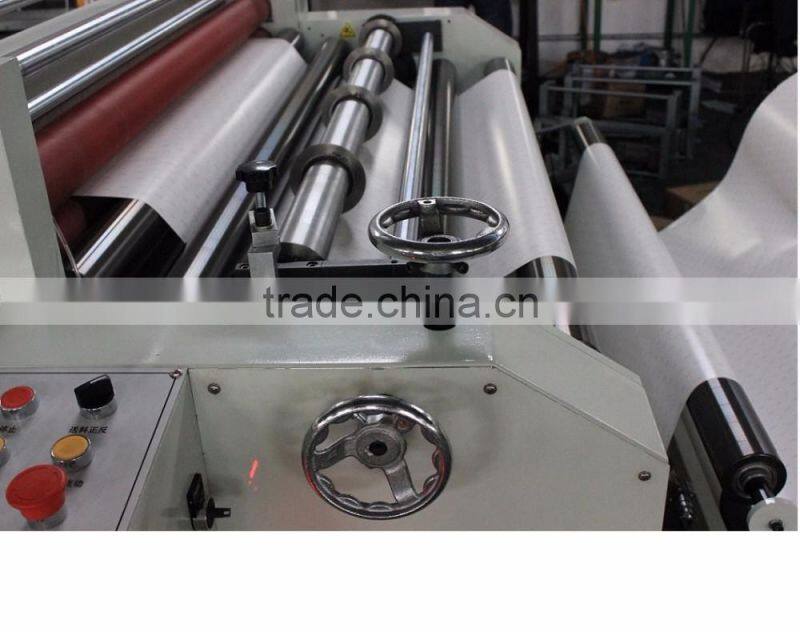

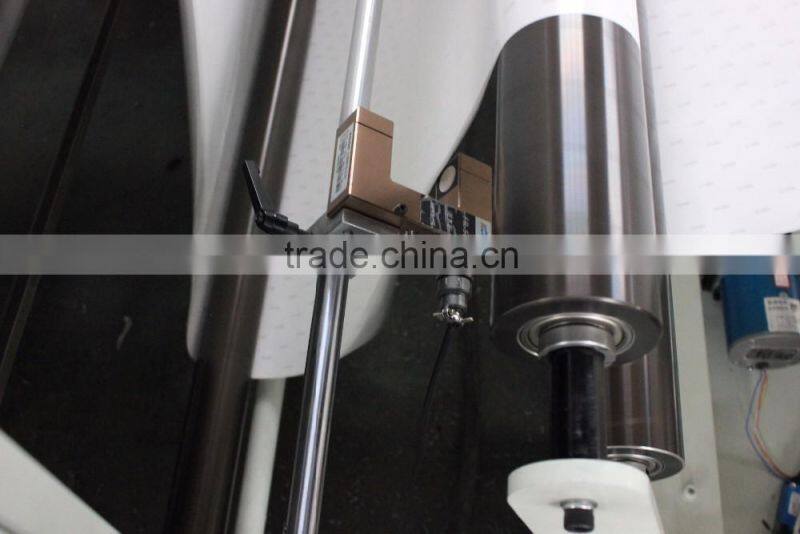

automatic cross cutting machine alignment tool:
our machine advantage :
Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand MITSUBISHI
which you will easily maintenence in your local place
Machine body ----- 22 mm thickness steel wall , it is very solid that to make sure machine stable when running
and the steel wall is whole steel sheet , not connected together .
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
machine slitting cutter -------------- is round cutter is high speed stainless steel material , it made in Korea company , can use long time ( no grinding ofen )
Rectification system ----------- unwinding part can turn left and right when tracing eye working and find the unwinding material is not tidy ,
it is same function as a slitting machine unwinding part
| Shipping information as below : |
please tell us below information when inquiry
| Material to be cut : |
|
Max Feeding Width ( mm ) |
|
Cutting width min to max |
|
Slitting width min to max |
|
Cutting length min to max |
|
Max unwinding diameter |
|
Then we offer you quotation
If not standard machine , we can customize for you
