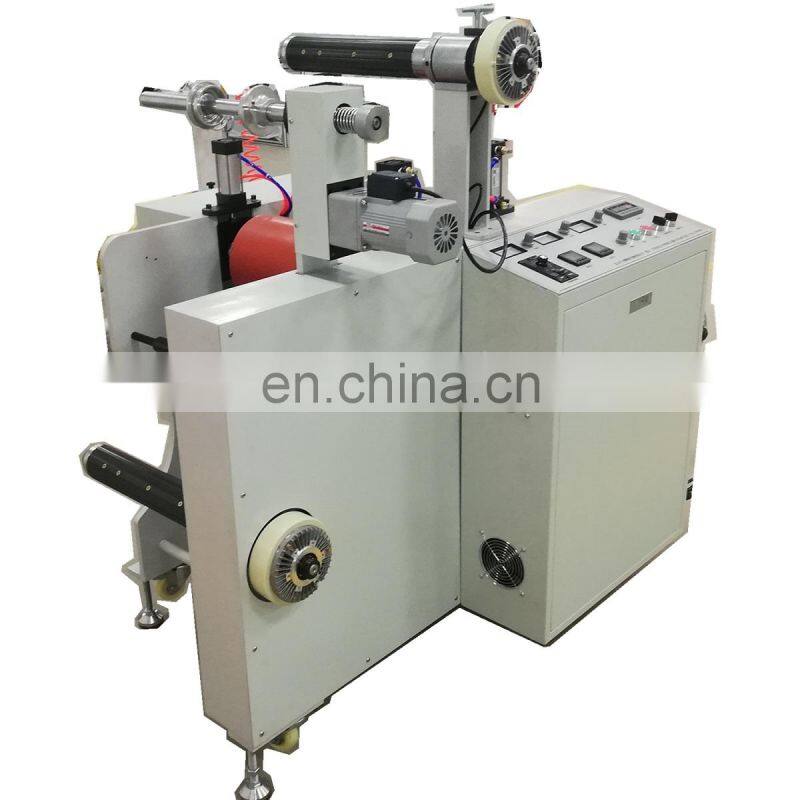

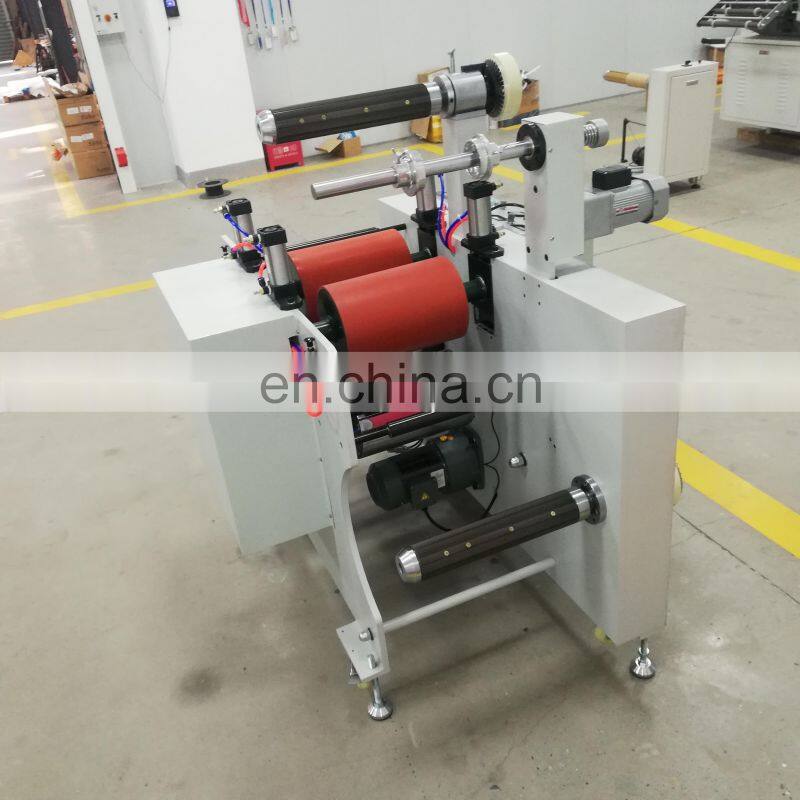

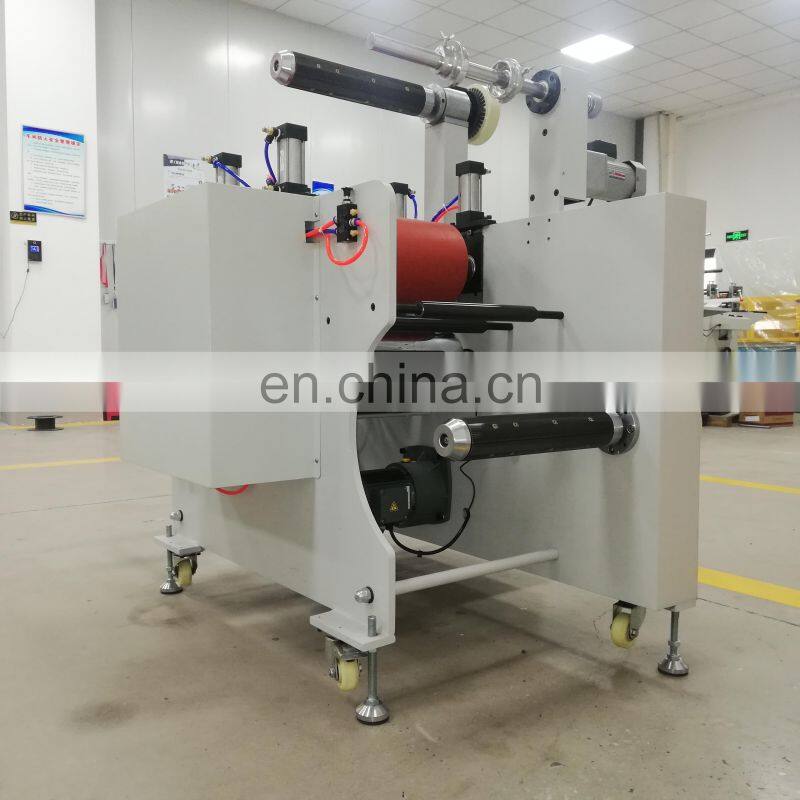

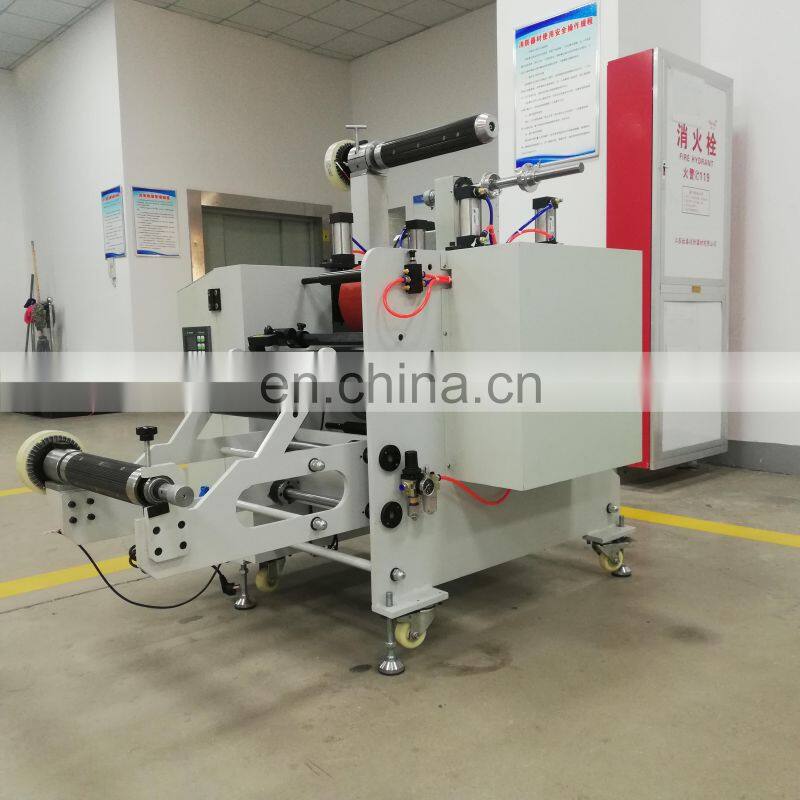

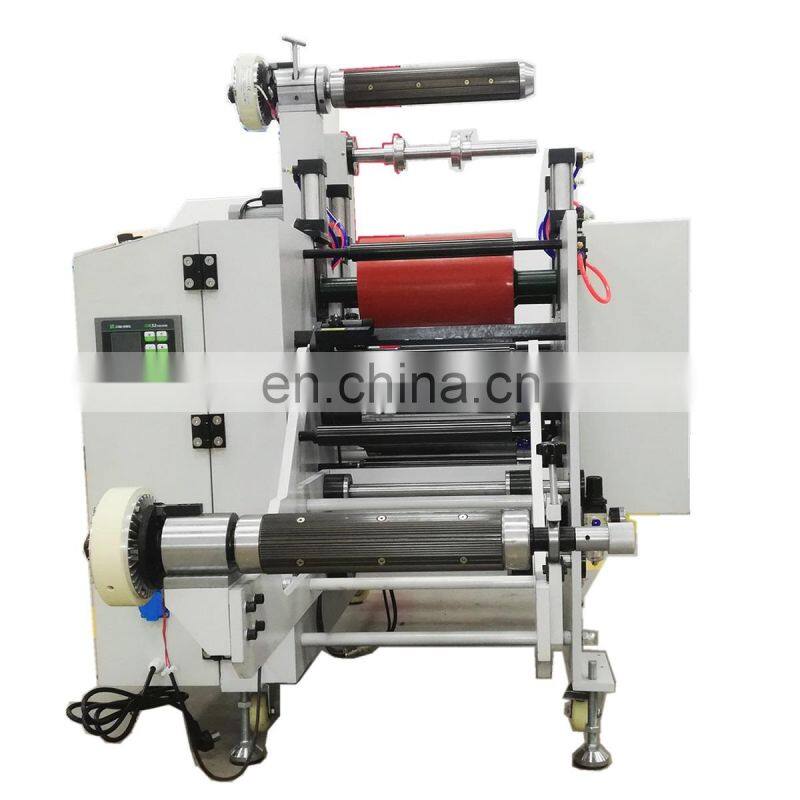

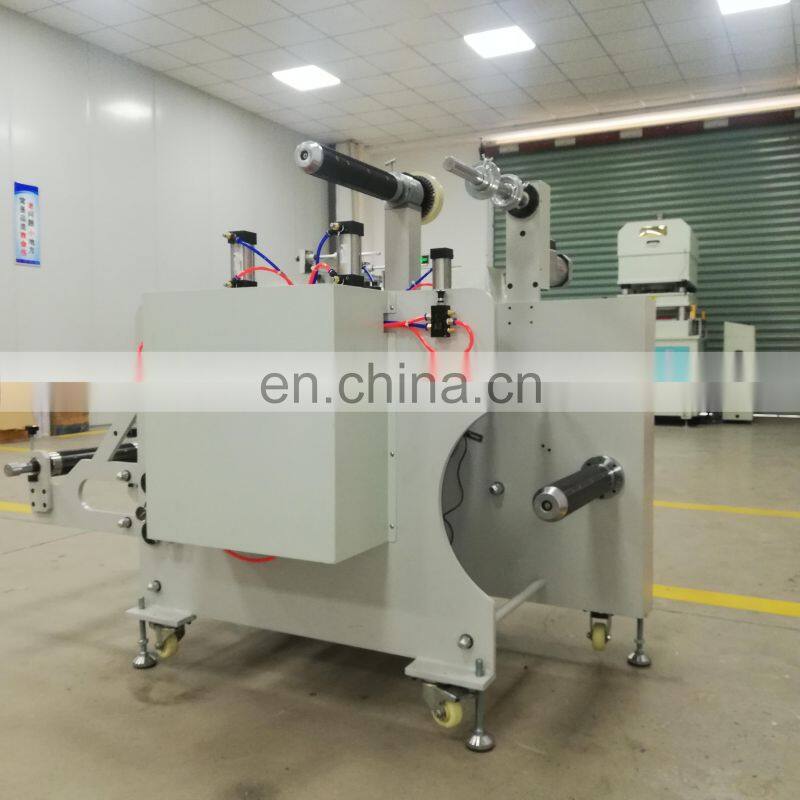

Automatic Laminating Machine With Auto Unwinding Rewinding for Narrow Fabric Scroll
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fully Automatic Industrial Paper Roll Rewinding Laminating Machine Max Working Width 1000mm for Pre-glue and Glueless Film
-
Automatic Paper Hot Roll to Roll Lamination Machine Price With Belt Feeding , Label Laminating Machine
-
1600 Hot and Cold Laminating Machine for Film and Tape Roll
-
Adhesive Paper Foam PET PE EVA PVC Film Laminating Machine
-
Carbon Film,heating Film,copper Strip Hot Melt Laminating Machine
-
Plastic Film Paper Fabric PE Foam Sheet Laminating Machine
Product Description
Product Description






Specification
Features:
1.The working width up to 320mm/420mm.
2.Laminating thickness up to 5mm.
3.the laminating positioning precision can reach 0.1mm.(can laminating many strips at one time).
4.Unwinding and rewinding with 3 inch pneumatic compressed shaft .
5.With movable feet design, it can be moved and used conveniently.
6.The laminating tension is totally controlled by magnetic power ,it make sure the flatness of the laminating material.
7.Automatic stop sensor for unwinding and rewinding.
8.Each parts independently speed control,tension control,easy to operate.
9.Each pair laminating rollers can be adjusted separately to get right pressure and space.
10.Multiple sets of waste discharge shaft.
1.The working width up to 320mm/420mm.
2.Laminating thickness up to 5mm.
3.the laminating positioning precision can reach 0.1mm.(can laminating many strips at one time).
4.Unwinding and rewinding with 3 inch pneumatic compressed shaft .
5.With movable feet design, it can be moved and used conveniently.
6.The laminating tension is totally controlled by magnetic power ,it make sure the flatness of the laminating material.
7.Automatic stop sensor for unwinding and rewinding.
8.Each parts independently speed control,tension control,easy to operate.
9.Each pair laminating rollers can be adjusted separately to get right pressure and space.
10.Multiple sets of waste discharge shaft.
Application:
This machine is suitable for peeling and laminating kinds of protective film, released film, paper and adhesive tapes.
It's specialized for the optical films and coated film industry.
Such as the OCA film, ITO film, PET film, diffusion film,reflecting film, hard coated film, AB gule etc.
This machine is suitable for peeling and laminating kinds of protective film, released film, paper and adhesive tapes.
It's specialized for the optical films and coated film industry.
Such as the OCA film, ITO film, PET film, diffusion film,reflecting film, hard coated film, AB gule etc.
* Optional device for this machine:
1.Integrated discharge device(jumbo roll loading device). Save working space.
1.Integrated discharge device(jumbo roll loading device). Save working space.
2. Shaftless loading device. Compact structure ,easy operation.
3. Rewinding differential shaft. Make better rewinding.
4. Heating system for laminating. According to different type materials requirement.
5. Slitting device. Do both slitting and laminating in same unit.
6. Seperate rewinder for waste.Reduce material pollution.
item | value |
Applicable Industries | Printing Shops, automatic laminating machine |
Showroom Location | automatic laminating machine |
Condition | New |
Type | Laminating Machine |
Computerized | Yes |
Place of Origin | China |
Jiangsu | |
Brand Name | Dapeng |
Voltage | 220V |
Dimension(L*W*H) | 1370*1260*1270mm |
Weight | 500kg |
Warranty | 1 Year |
Production Capacity | 60 m/min |
Key Selling Points | Easy to Operate |
Max. workable width | 420mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor, PLC |
PLC Brand | MITSUBISHI, Siemens |
PAPER ROLL MAX WIDTH | 420/650MM |
Max feeding paper roll diameter | 500mm |
laminating speed | 60m/min |
laminating precise | ±0.3mm |
