Automatic Adhesive Paper Roll to Sheet Cutting Machine
- T/T Credit Card
You May Like
-
Professional Manufacturer Die Cutter With Sheet Paper Cutting Machine Safety Cover on Cutting Knife Sizing Cutting PVC,PP 600mm
-
Sheet Cutter With Slitter
-
PVC Strip Cutting Machine Automatic Guillotine Type Rubber 100 M/min Production Capacity 1-1000mm 65cycles/min
-
Automatic Roll to Sheet Paper Foil Aluminium Foil Cutter
-
Automatic Roll Paper Sheeting Machine
-
500mm Paper Reel Cutting Machine for A4 Size
Product Description

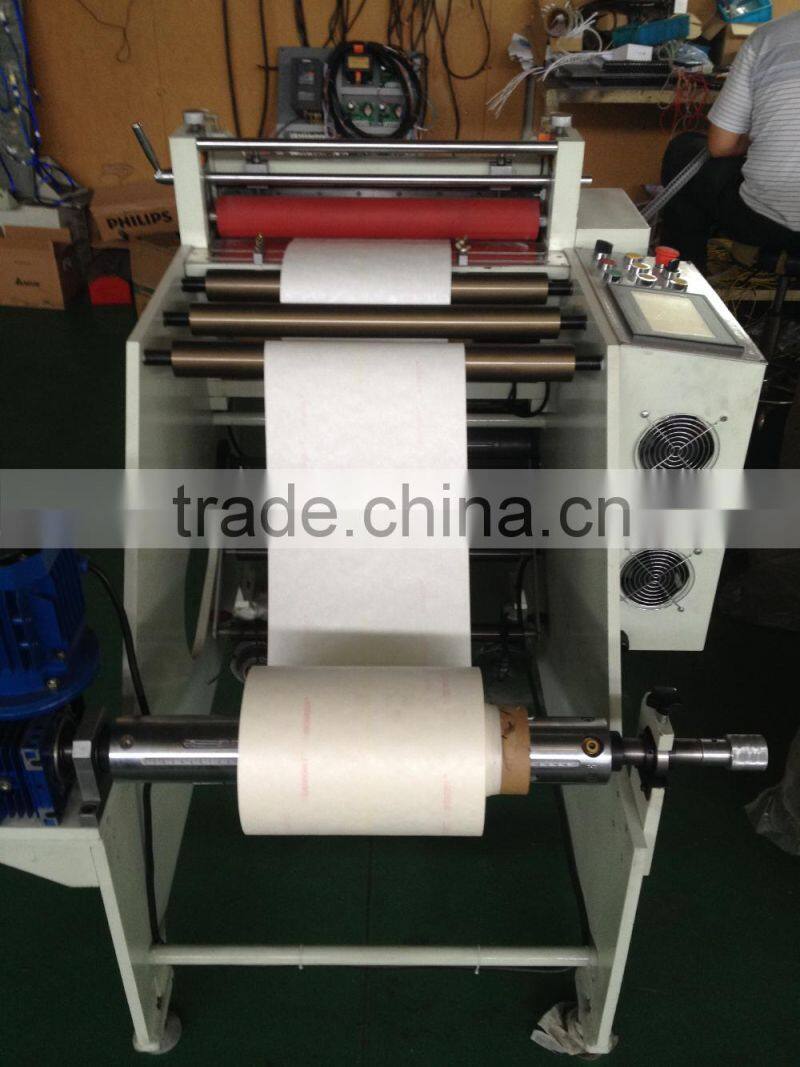

Automatic Adhesive Paper Roll to Sheet Cutting Machine
Below is 5 standard size details of this paper roll to sheet cutting machine
Model | 360 Sheet cutter | 500 Sheet cutter | 600 Paper Roll to Sheet Cutting Machine |
Max Feeding Width ( mm ) | 360 | 500 | 600mm |
Main Engineer Power ( w ) | 150 | 400 | 750 |
Speed ( t/m ) | 110 | 110 | 100 |
Size ( mm ) | 1150*1050*1230 | 1250*1090*1250 | 1300*1200*1250mm |
Weight ( kg ) | 400 | 500 | 700 |
Precision ( mm ) | ±0.05 | ±0.05 | 0.05mm |
Power | 220V 50HZ | 220V 50HZ | 220V or 380V |
| Model | DP-1000 sheet cutting machine | DP-800 paper cutting machine |
| Voltage | 220V | 4HP |
| Power | 4HP | 380V |
| N.W. | 1800KG | 1500KG |
| Sheeting Length | 0.1-9999.9mm | 0.1-9999.9mm |
| Sheeting width | 1-1000mm | 1-800mm |
| Sheeting precision | ±0.05mm | ±0.05mm |
| (0-180mm)Sheeting speed -- | 75(cut/min) | 75(cut/min) |
| Machine size | 1950x1800x1350mm | 1700x1650x1350mm |
| unwinding shaft diameter | 3 inch | 3 inch |
| unwinding diameter | max 600mm | max 600mm |
Functional Characteristics:

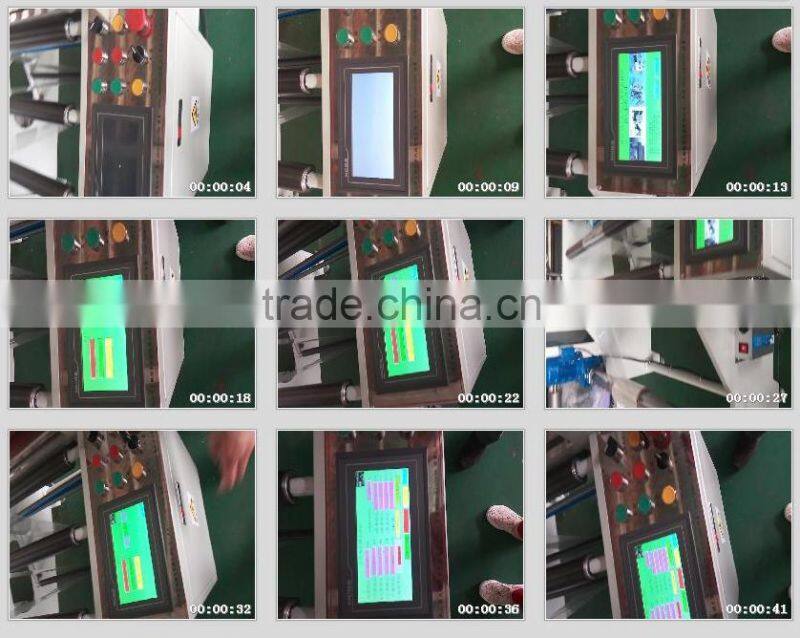

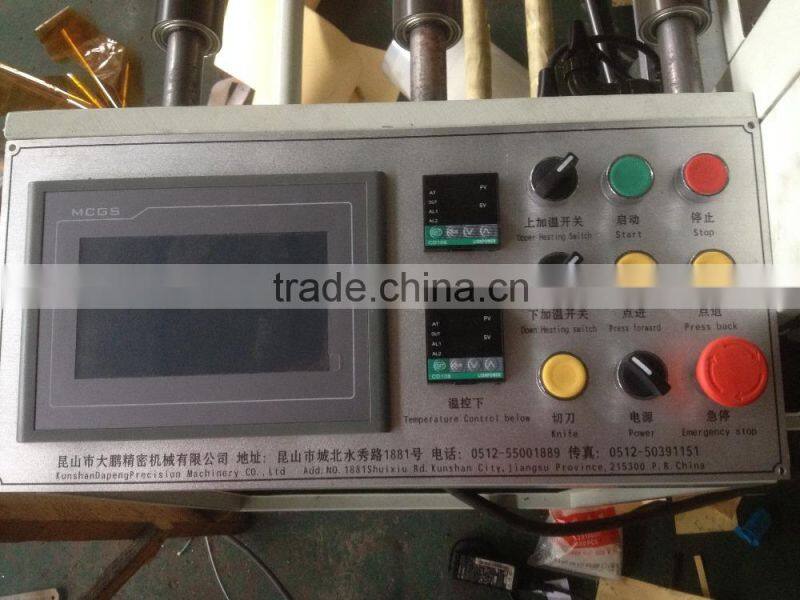

Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision.
Purpose:
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Electrical listing:

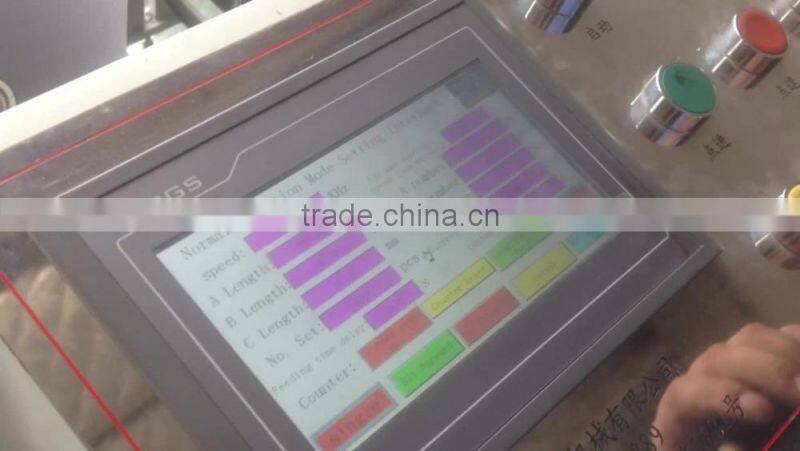

Touch Screen | KUNLUN(MCGS) | Beijing(Made in China) |
Programmable Controller | MITSUBISHI | Made in Japan |
Servo Driver | MITSUBISHI/delta | Made in Japan/taiwan |
Servo Motor | MITSUBISHI/delta | Made in Japan/taiwan |
Motor of cutting knife | TPG | Made in Taiwan |
AC Contactor | RENMIN | (Shanghai)Made in China |
Solid State Relay 20A | Guguang | (Shanghai) Made in China |
Electric eye | Panasonnic | Made in Japan |

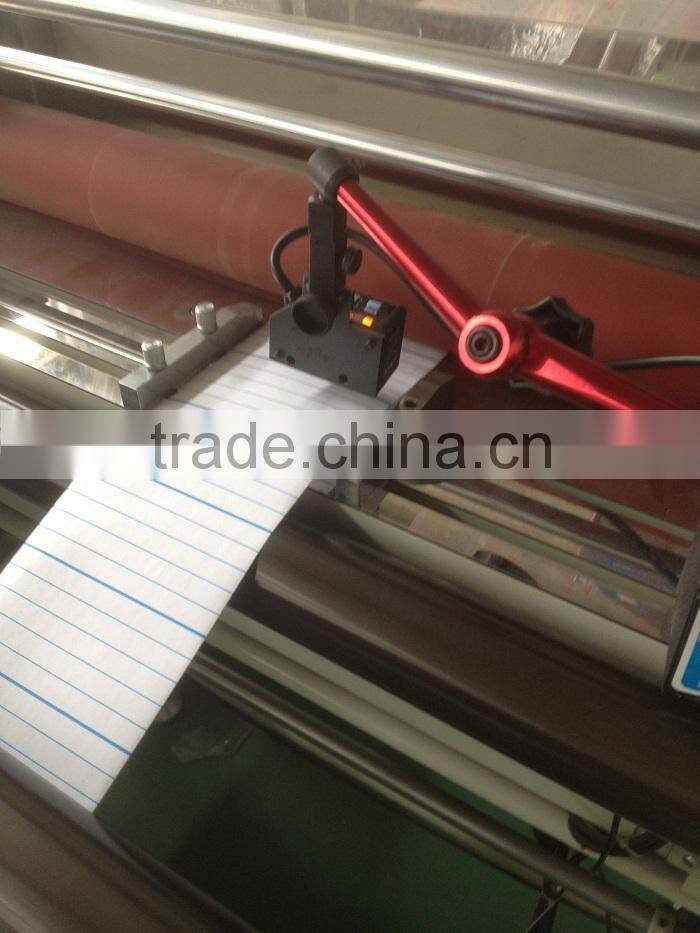

Optional function : mark searching :
razor knives on for slit function :
able to slit and cut rectangular size in ONE continuous operation from jumbo roll
Optional heating cutting material :
Optional connect to other machines :
