Product Description

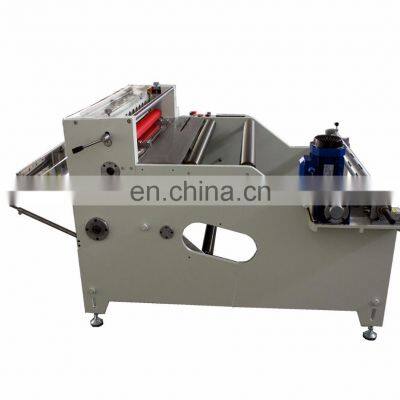

Adhesive Paper Cutting Machine

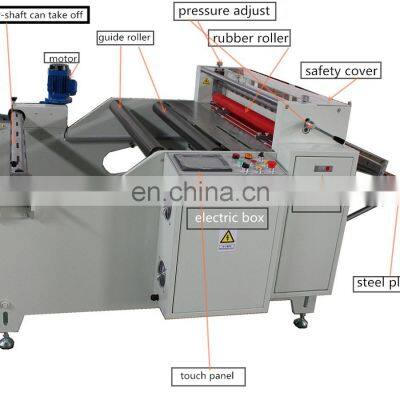

| Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine | ||||
| PLC ----- use famous brand MITSUBISHI, Delta which you will easily maintenence in your local place | ||||
| Machine body ----- 16mm to 22mm thickness steel wall , it is very solid that to make sure machine stable when running | ||||
| PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material | ||||
| Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material | ||||
| Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part | ||||
| Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety | ||||
| 12 month electronic parts guarantee after machine arrived your place |
Purpose
It is applicable for the cutting ofpaper, PVC film, insulation sheet, Mylar, foam, industrial tape,
electronic tape and various inch setting, entirely broken and partially broken electronic materials.
| Model | DP-800 |
| Voltage | 4HP |
| Power | 380V |
| N.W. | 1500KG |
| Sheeting Length | 0.1-9999.9mm |
| Sheeting width | 1-800mm |
| cutting thickness | 0.05-12mm |
| Sheeting precision | ±0.05mm |
| Machine size | 1700x1650x1350mm |
| Shaft diameter | 3 inch / 76mm |
| unwinding paper diameter | 600mm max |
| conveyor belt length | 700mm |
Product Detail
| driving force type | electric |
| driving system | Servo Motor |
| max feeding width | 360mm/500mm/800mm etc |
| Control | PLC control |
| kiss cutting | need air force driving type |
| Product Keywords | Adhesive Paper Cutting Machine,Decal Paper Cutting Machine,Jumbo Roll Paper Cutting Machines |
Quality assurance:
12 month after sale Warranty Service (excluding Wear and Tear item )
