automatic roll to sheet paper foil aluminium foil cutter
- 1000 per Month
- T/T Credit Card
- automatic Roll paper sheeting machine
- 500mm paper reel cutting machine for A4 size
- DP-360 max width 360mm paper sheeter machine
- customized roll to sheet cutter machine( sheet cutting machine)
- plastic sheet cutter machine ( sheet cutting machine)
- rubber foam roll to sheet cutting machine( sheet cutter)
Product Description

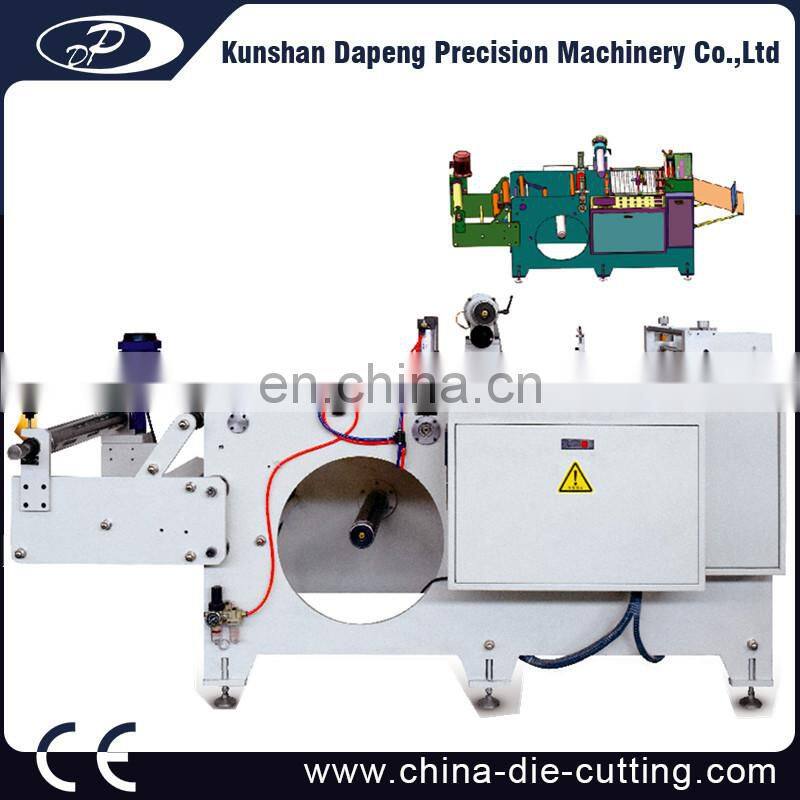

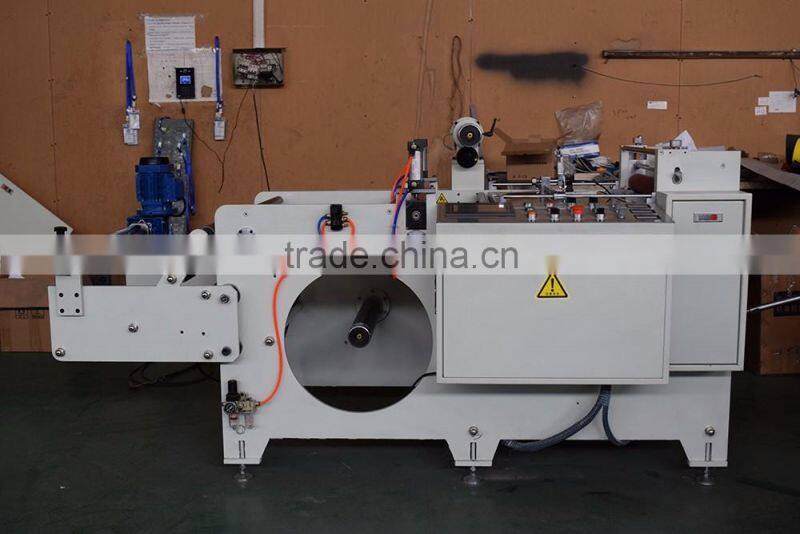

automatic roll to sheet paper foil aluminium foil cutter
automatic roll to sheet paper foil aluminium foil cutter
automatic roll to sheet aluminium foil cutter
Feature:

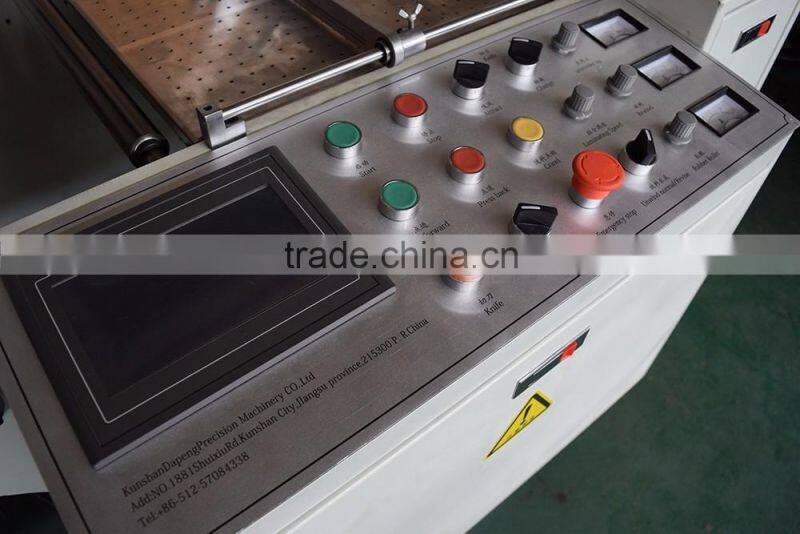

1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For slitting cut and cutting to piece working at the same time , can get the material from roll to square shape as need
3. Five different cutting length can be set. and width can slit from 15mm to 360mm,
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. High precision, low loss, easy operation.
Application: Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
insulation paper slitter cutter machine | ||
Electrical listing : | ||
Touch Screen | KUNLUN | Made in China |
Programmable Controller | MITSUBISHI | Made in Japan |
Servo Driver | YASKAWA | Made in Japan |
Servo Motor | YASKAWA | Made in Japan |
Motor of cutting knife | TPG | Made in Japan |
AC Contactor | RENMIN | Made in China |
Solid State Relay 20A | Guguang | Made in China |
Electric eye | Panasonnic | Made in Japan |
cutting blade safety cover | Plastic PC material | Made in China |
\
Model | DP-500TQ |
Voltage | 220V/380V |
Power | 2HP |
N.W. | 980kg |
G.W. | 1000kg |
Cutting Length | 0.1~9999.9mm |
Cutting Width | 1~500mm |
Measurement | 232*221*131cm |
electric | 220V/380V |
rewind core (for roll to roll): | 152mm |
