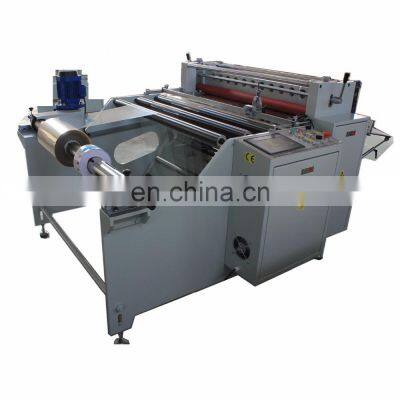

Help CenterRoll to Sheet Cutting Machine for Printed PVC /Paper/PET/Fabric
Related Products
-
Decal Jumbo Roll Adhesive Paper Cutting MachineNegotiableMOQ: 1 -
High Precision PLC Servo Control Max Working Width 500mm Paper Roll to Sheet Cutting MachineNegotiableMOQ: 1
-
Paper Roll to Sheet Cutting Machine Aluminium Foil RollingNegotiableMOQ: 1
-
Automatic Printed Fabric Plastic Film Cutter PVC Cross Cut Roll to Sheet Paper Cutting MachineNegotiableMOQ: 1
-
Automatic Kraft Paper,aluminum Foil Roll to Sheet Cutting MachineNegotiableMOQ: 1

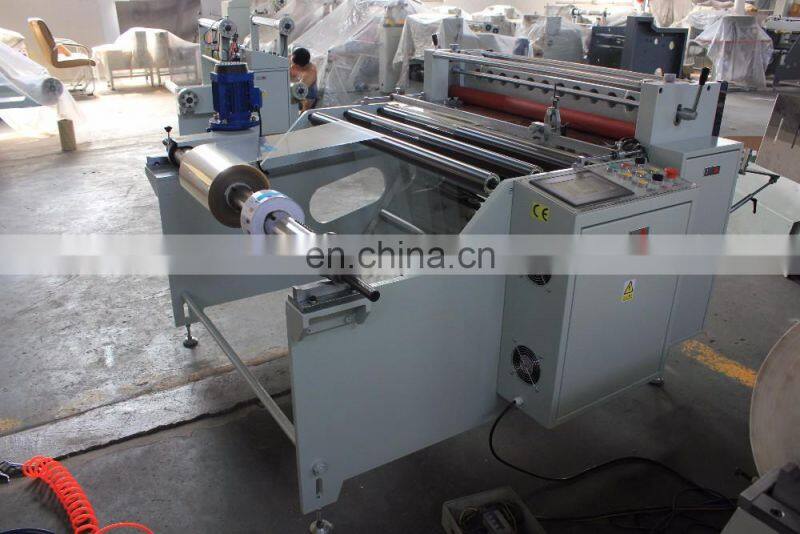

Roll to sheet cutting machine for Printed paper / pvc/ fabric
printed label sheeting machine , paper cutting machine \
https://youtu.be/fjPYG5C_7UM
printed paper sheet cutting machine
https://youtu.be/2APFNGypG3E

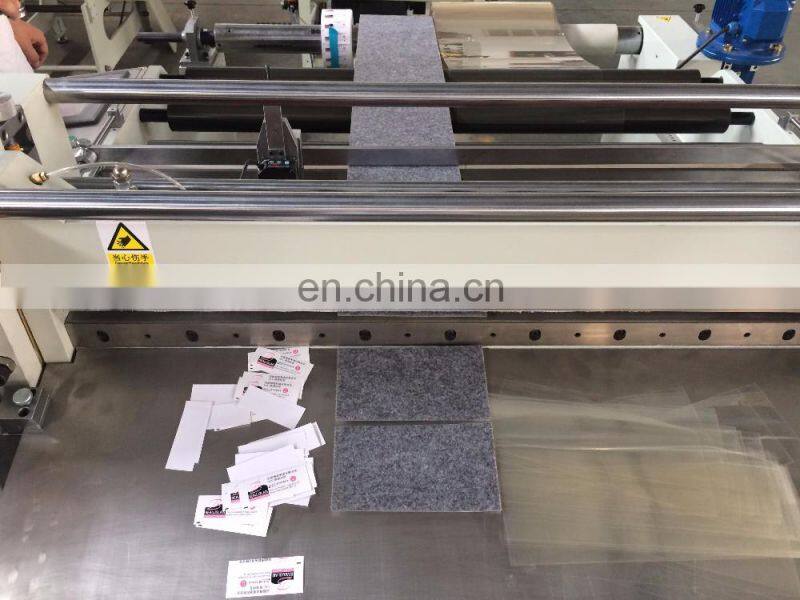

Printed fabric roll to sheet cutting machine
automatic PVC film roll to sheet cutting machine
https://youtu.be/Q91CTo3wJMk
Video :
https://youtu.be/ZF8X4zPPlVM 600mm sparkle material cutting to sheet
sheet cutting machine
1. Microcomputer control , setting length of cutting
Feature: This machine adopts man-machine interface control and PLC system with pneumatic pushing device, half cutting off after multi-cut, full cutting off after one-cut, special sizing cutting , five different cutting length can be set , different cutting quantity and circulation time also can be set, to improve cutting efficiency . High precision, low loss, easy operation.
Application: cutting for conductive fabric, foam , diffuser , reflector film , double-sided adhesive tape, nickel plate, PET, PC,PE insulation paper, and all kinds of adhesive tapes .
advantage as below :

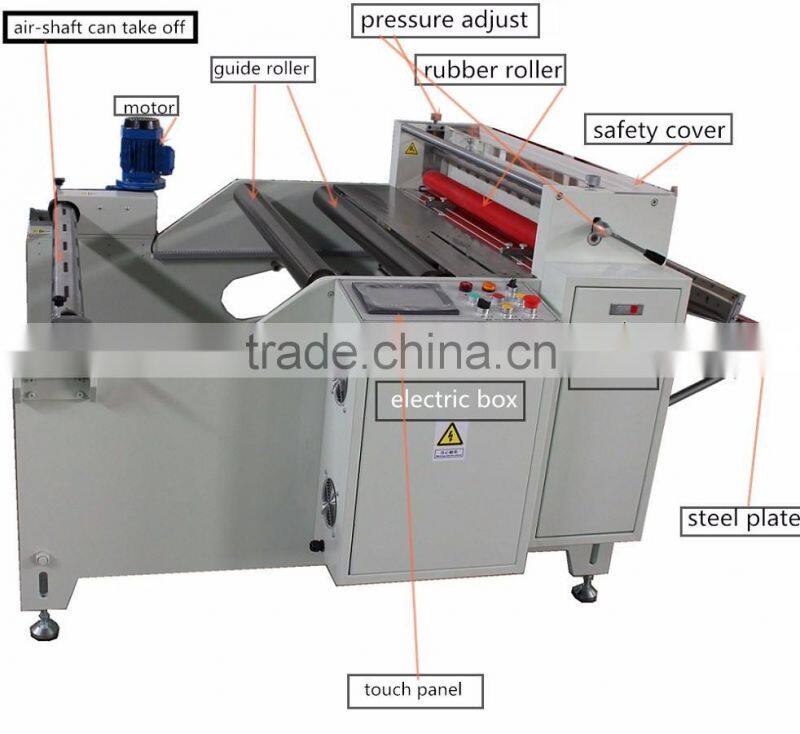

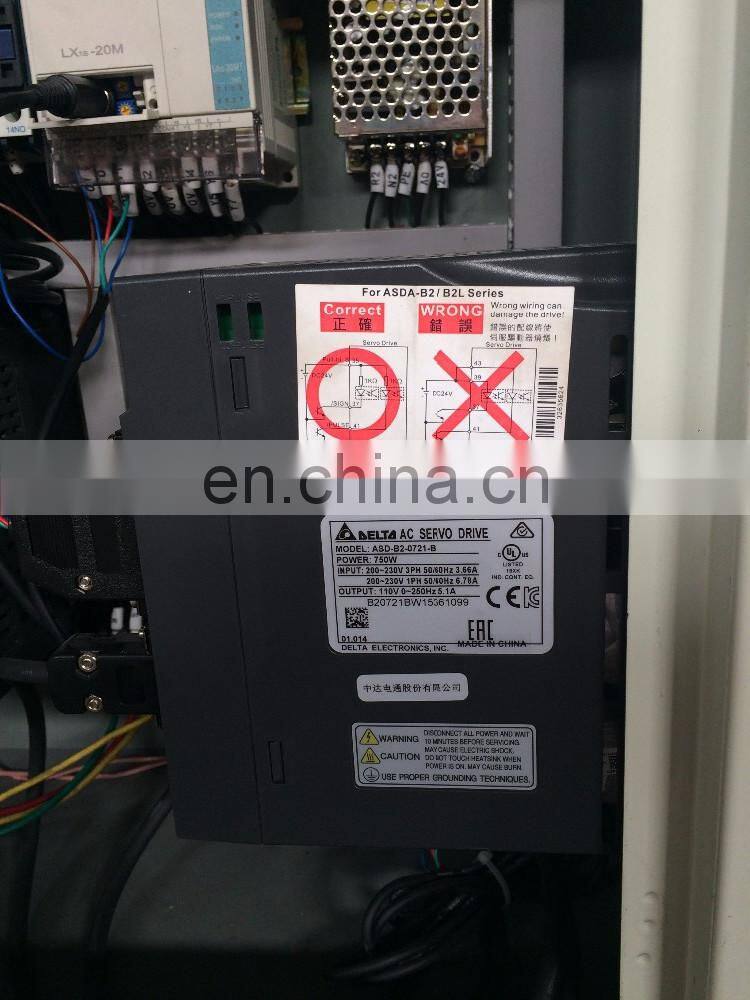

Servo motor control ---more precision then Stepper motor control ,
so we already Eliminated stepper motor machine
Brand name use : Delta or Mitsubishi

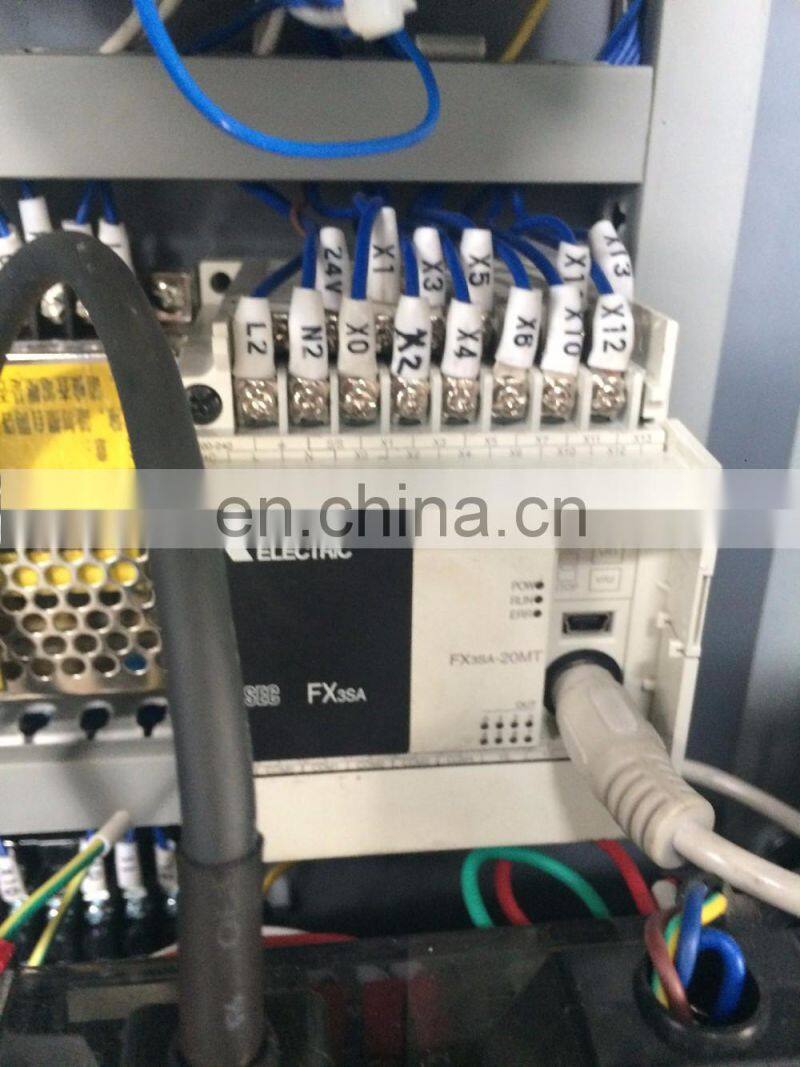

PLC ----- use famous brand MITSUBISHI
which you will easily maintenence in your local place

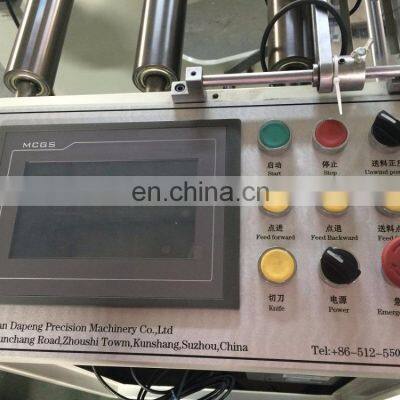

Touch screen operation and switch operation together

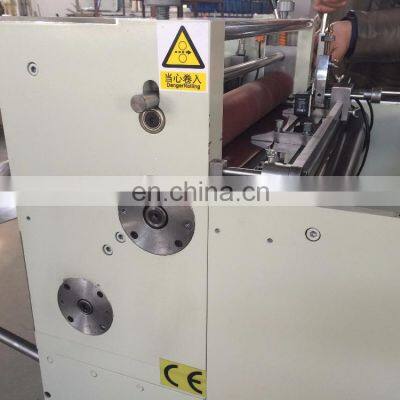

Machine body ----- 20 mm thickness steel wall , it is very solid that to make sure machine stable when running
and the steel wall is whole steel sheet , not connected together .
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material

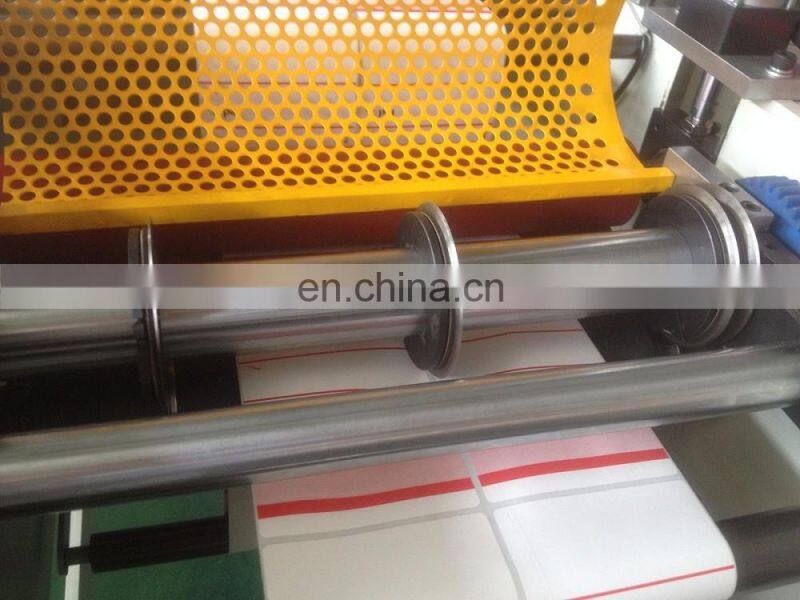

Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
unwinding air-shaft ------------------- 3 inch air-shaft

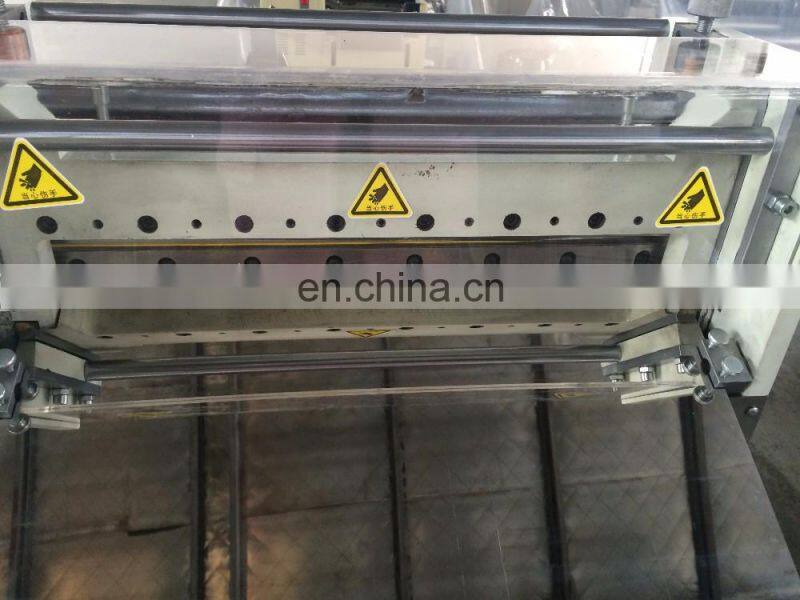

Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety

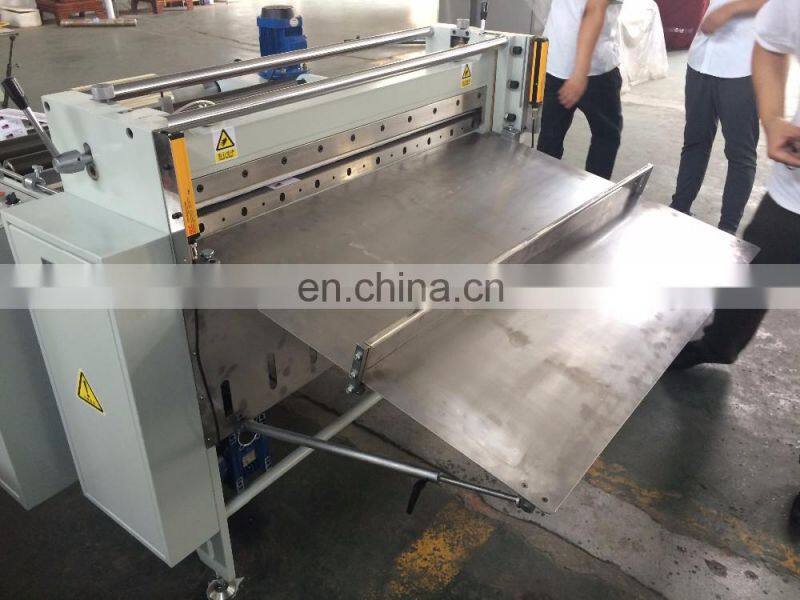

Large size roll to sheet cutting machine use Safety Light Curtain to protect operator
Below is optional parts :

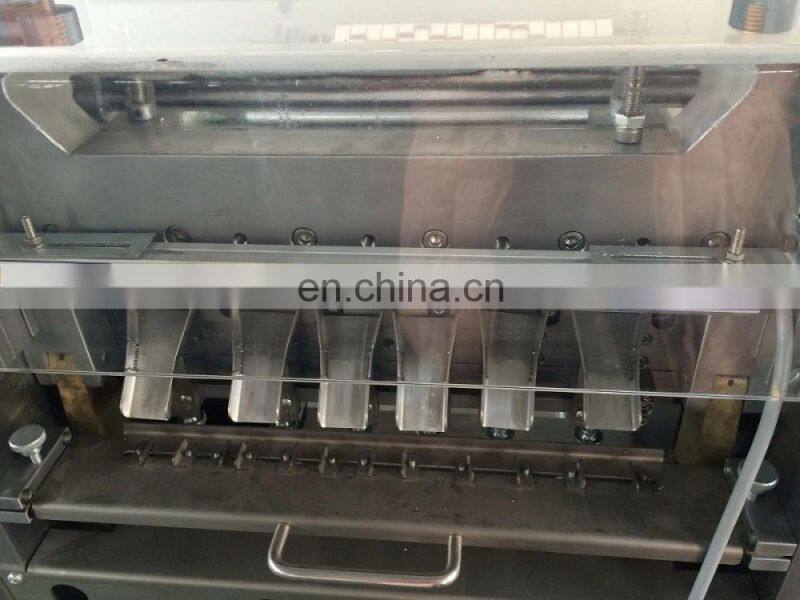

machine slitting cutter -------------- is round cutter is high speed stainless steel material , it made in Korea company , can use long time ( no grinding ofen )
Rectification system ----------- unwinding part can turn left and right when tracing eye working and find the unwinding material is not tidy ,
it is same function as a slitting machine unwinding part

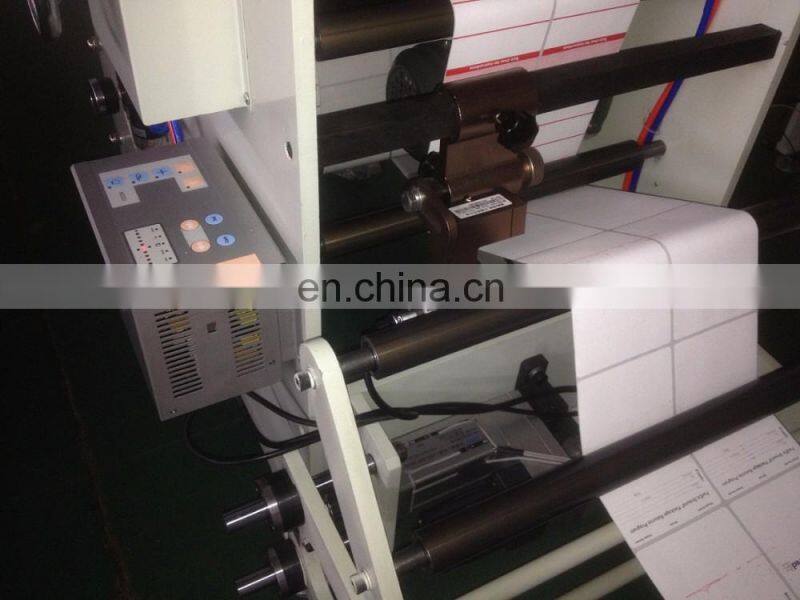

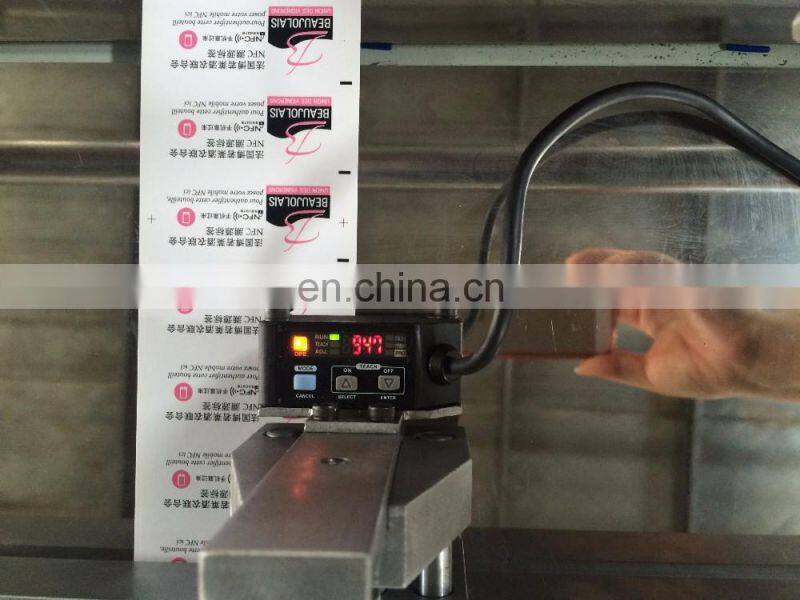

Photocell for mark searching , ----------- used for printed material precision cutting , the Brand name use is SUNX under Panasonic

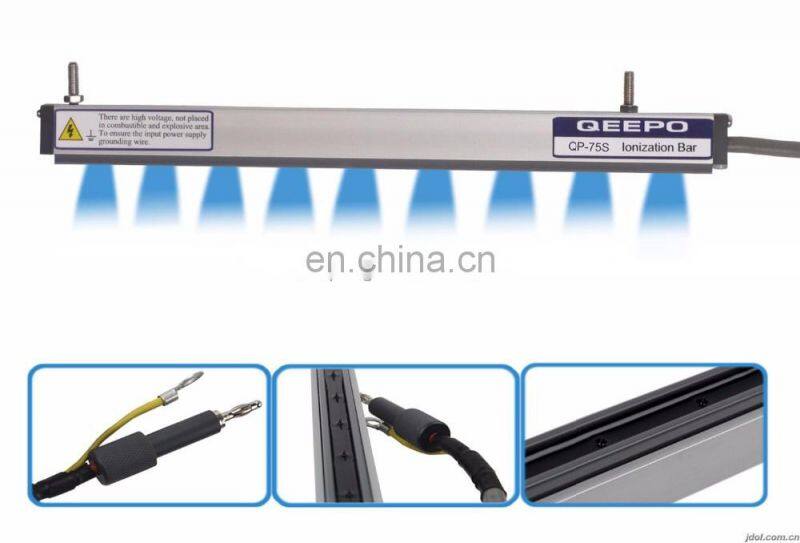

electrical static eliminator
-----------------to remove orneutralizing static electricity from the paper , film etc material

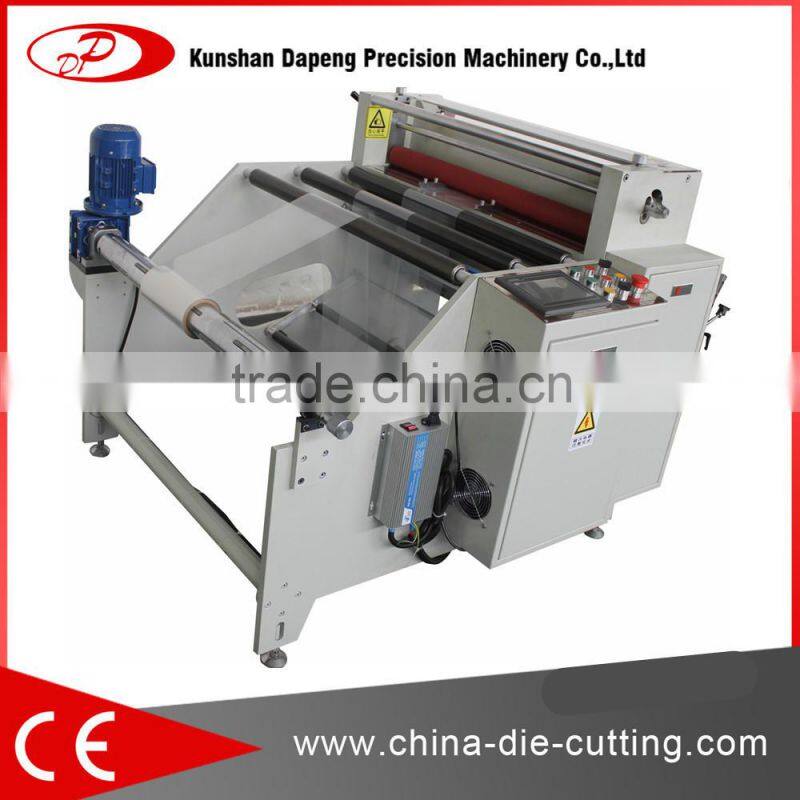

High Precision Roll to Sheet Cutting Machinery
Functional Characteristics:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,
speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,
which will be easy to load and unload."
Purpose:
It is applicable for the cutting of Paper,aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette,
metal foil, PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting electronic materials.
Technical Data
| Model | Max Feeding Width | Main Engineer Power | Speed | Size | Weight | Precision | unwinding diameter | unwinding core | Voltage |
| mm | KW | T/MIN | MM | KG | mm | mm | |||
| DP-360CQ | 360 | 1 | 110 | 1150*1000*1230 | 350 | ±0.05 | 600/1000 | 3 inch | 380V 50HZ |
| DP-500CQ | 500 | 1.5 | 110 | 1250*1090*1230 | 420 | ±0.05 | 600/1000 | 3 inch | 380V 50HZ |
| DP-600CQ | 600 | 2.2 | 100 | 1300*1200*1250 | 500 | ±0.05 | 600/1000 | 3 inch | 380V 50HZ |
| DP-800CQ | 800 | 3 | 80 | 1400*1400*1250 | 800 | ±0.05 | 600/1000 | 3 inch | 380V 50HZ |
| DP-1000CQ | 1000 | 3 | 75 | 1950*1800*1350 | 1000 | ±0.10 | 600/1000 | 3 inch | 380V 50HZ |
| DP-1400CFQ | 1400 | 4.5 | 60 | 2050x2150x1400 | 2000 | ±0.10 | 600/1000 | 3 inch | 380V 50HZ |
Video links about these machines :
roll to sheet cutting machine video 500mm
http://youtu.be/hlw7YjXucf0
https://youtu.be/TddZP9BJos4 (360
https://youtu.be/hlw7YjXucf0
http://youtu.be/StpI-7gi1io filter paper slit and cut sheet cutting machine
https://youtu.be/ZF8X4zPPlVM 600mm sparkle material cutting to sheet
https://youtu.be/Cqm_Ah-FCkw 500mm green pvc roll to sheet cutter
http://youtu.be/FKYZw7SKQZs?list=UUKzn2_YUjZc_nkjjFRC07NQ (500
/watch?v=wbJhPKudBYA&list=UUKzn2_YUjZc_nkjjFRC07NQ&index=13 ( 800
http://youtu.be/Pp5_tqE7QR4?list=UUKzn2_YUjZc_nkjjFRC07NQ (800 mm )
http://youtu.be/x_A6leioBek?list=UUKzn2_YUjZc_nkjjFRC07NQ ( 1000 mm )
http://youtu.be/KYlL-HxKAGM 550 kiss cut and through cutting machine
https://youtu.be/XvDXNd42zOk printting paper with photocell sheet cutting machine
https://youtu.be/zULKzvewh2s 500
https://youtu.be/4l9zWCdr1TI hot roll to sheet cutting machine ( heating the blade and cutting thick PVC/PET)
https://youtu.be/2APFNGypG3E printed paper sheet cutting machine
