MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine

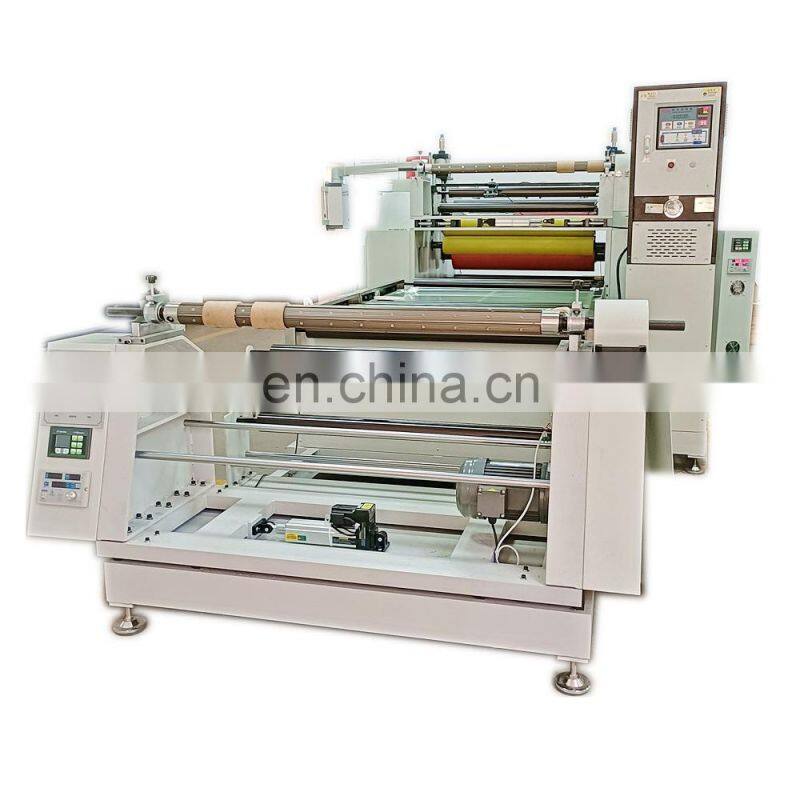

MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine photo-1

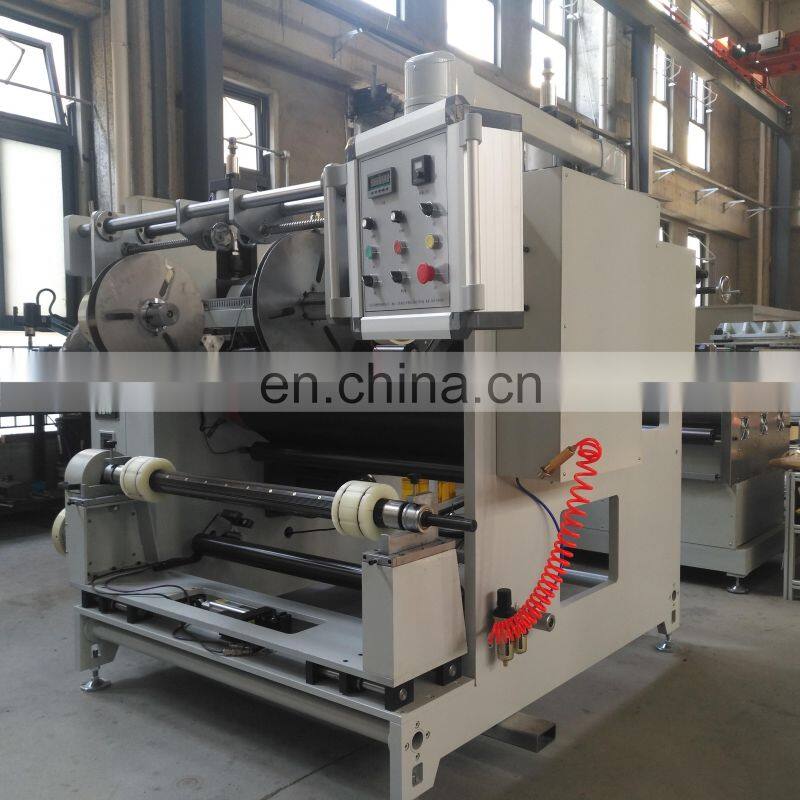

MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine photo-2

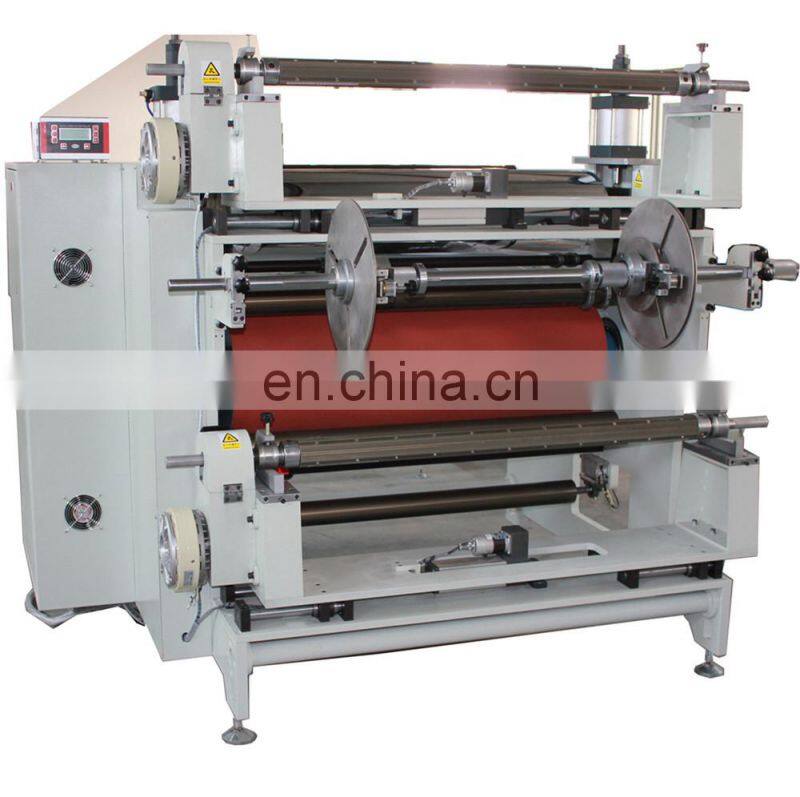

MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine photo-3

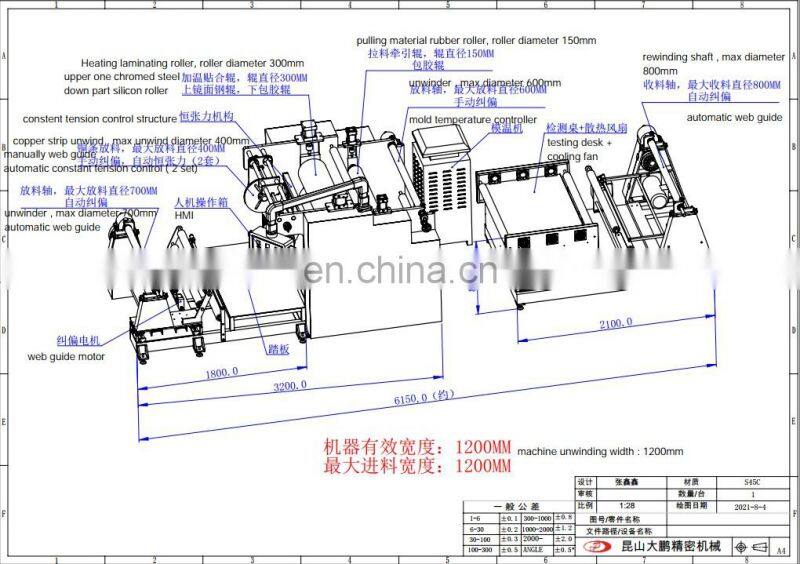

MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine photo-4

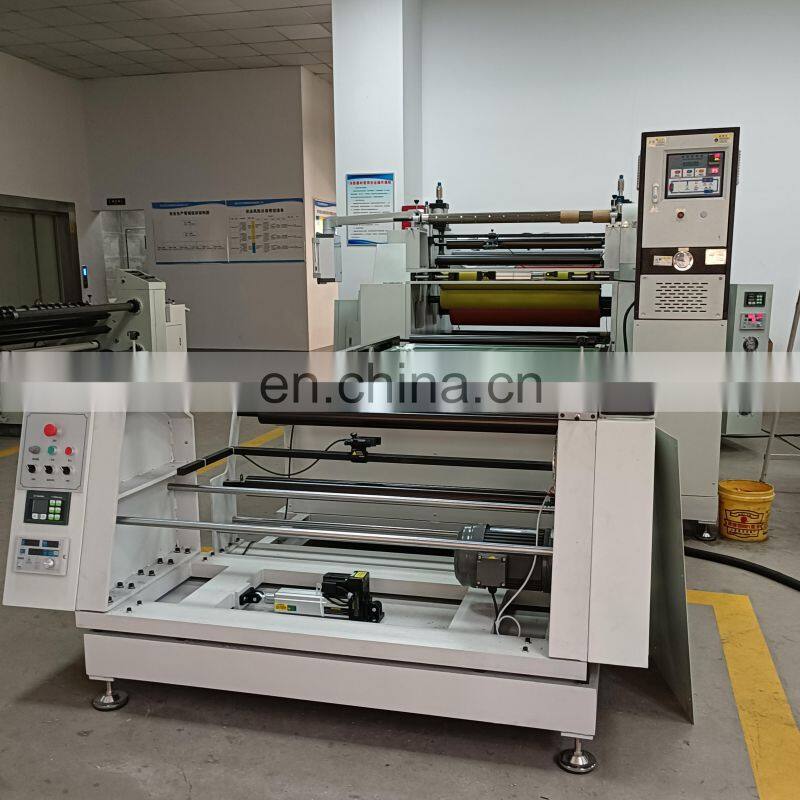

MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Specification
1, technical parameters
Machine speed: 5-30m/min (adjustable)
Maximum width of raw materials: 1200mm
FIRST UNWINDING diameter: 500mm
SECOND UNWINDING diameter: 500mm
Copper strip diameter: 400mm
Rewinding diameter: 600mm
Voltage: 380V 50HZ
Total power: 10kw
Raw material roll paper core diameter : 3 inch
Compressed air source: (0.4-0.6) Mpa (customer-owned)

2, UNWINDING device

Up and down UNWINDING air expansion shaft (3′′ tile type air expansion shaft) : 2 sets
Copper strip UNWINDING shaft plus magnetic powder brake : 2 sets
Copper strip automatic RECTIFICATION correction system:2 sets
Magnetic powder brake 50N (Shengda) : 4 sets
UNWINDING constant tension control system : 4 sets
Servo RECTIFICATION SYSTEM (Shenzhen Yupeng Technology) Ultrasonic Sensor : 3 sets
Ball screw (Taiwan HIWIN ) : 2 pieces

3, unwinding material laminating department
Warming iron roller Ø400 (chrome plated mirror surface) 50-60H : 1 piece
Lower heating laminating roller Ø400 (imported silica gel) : 2 pieces
Main motor: 2.2KW (Taiwan Dongli) : 1 set
Main motor inverter: Mitsubishi 1 set
Aluminum guide roller (surface hard oxygen treatment) 11 sets
Pulling up and down rubber pressure roller Ø200 (imported silica gel) : 2 pieces
Pressing roller pneumatic up and down system adjustable : 2 sets
Electronic meter counter (Shanghai) : 1 set
Film unwind tension adjustment system : 1 set

4, the coil Rewinding department
REWINDING air shaft (3′′ tile type air expansion shaft) : 1 set
Main motor: 2.2KW (Taiwan Dongli): 1 set
Main motor inverter: Mitsubishi : 1 set
Electromagnetic clutch : 1 set
Servo RECTIFICATION Correction (Shenzhen YUpeng Technology) Ultrasonic Sensor 1 set

5, heating department
DOWN PARY Glue roller (Ø300) : electromagnetic heating (0-100 degrees) 1SET
UP PART IRON ROLLER (Ø300) : Electromagnetic heating (0-180 degrees) 1SET
Infrared temperature controller : 2 sets

6, electronic control panel 1 set

7. Introduction to the main functions of this machine

Frequency control, easier operation and more precise control.
The rewinding magnetic powder tension is independently controlled and can be rewinding at the same time or used alone.
The electronic meter has an automatic meter setting length and automatic shutdown.
Packing & Delivery
Wooden box.
Company Profile
Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers. Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers. In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
Item
DESCRIPTION
QTY (SET)
Unit Price (USD)
Total amount:
DP-1200 RTH
Laminating machine ,
max laminating width 1200mm ,unwinding diameter 800mm ,
second unwind diameter 350mm , rewinding diameter 800mm ,
1
inquiry 00861373266376 please
inquiry please
