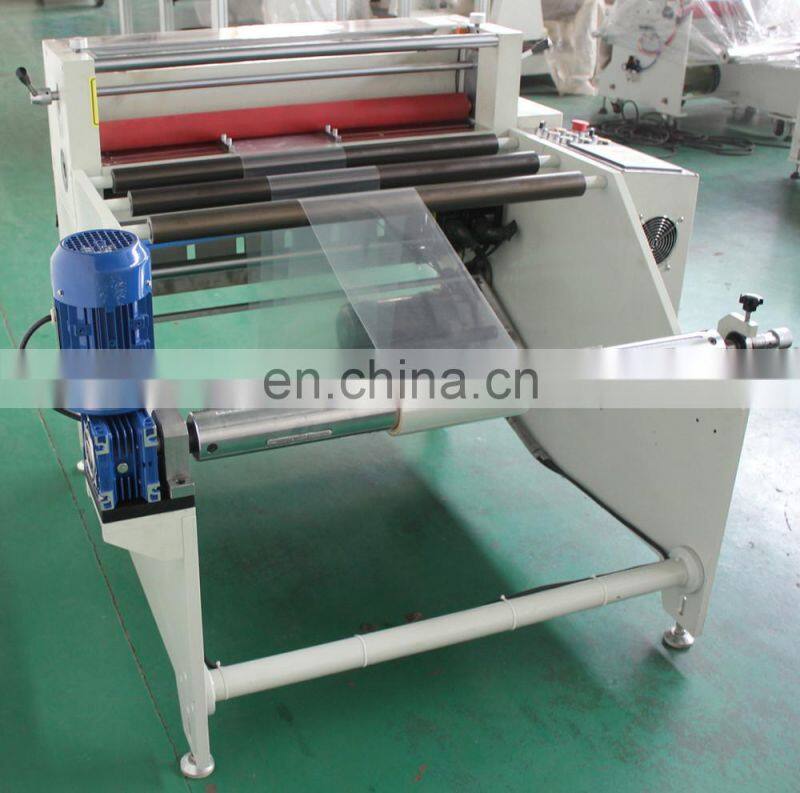

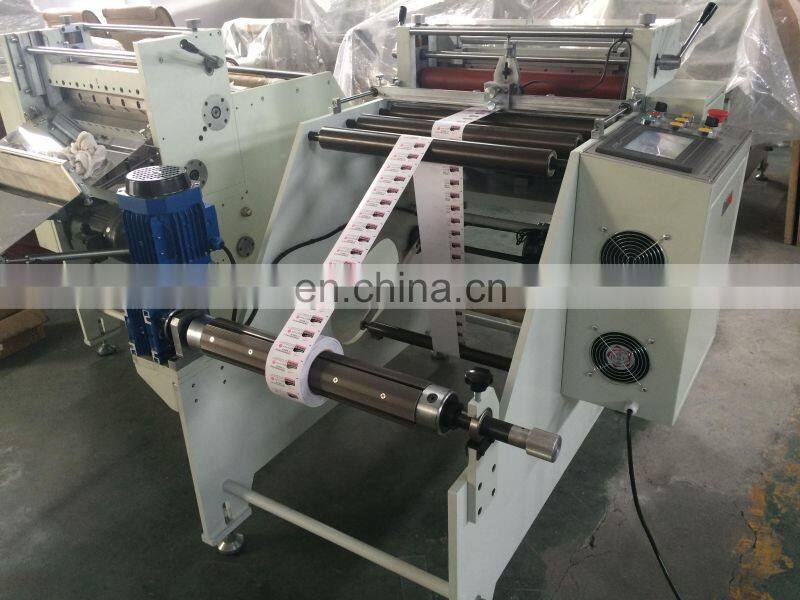

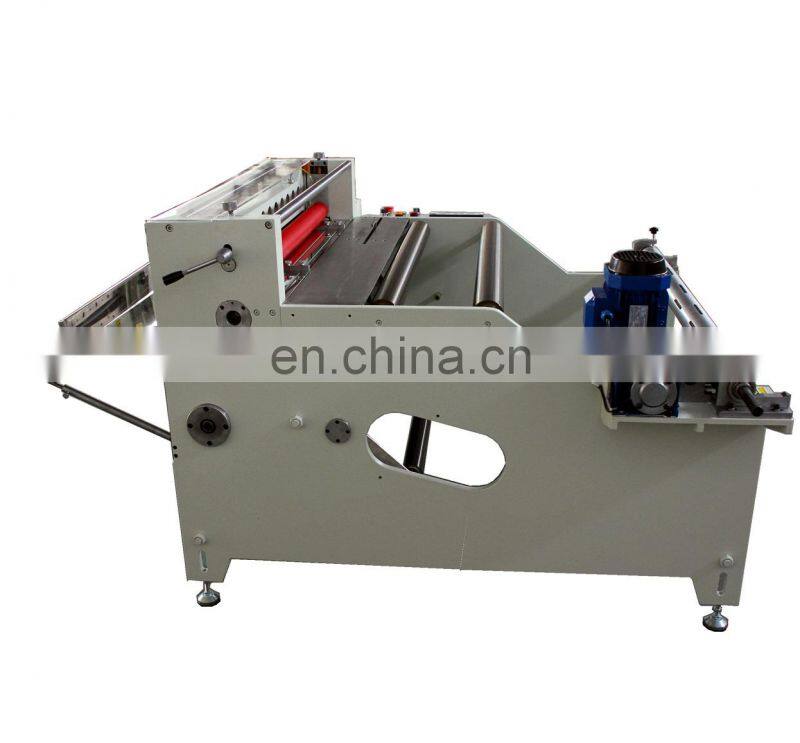

Professional Manufacturer Die Cutter with Sheet Paper Cutting Machine Safety Cover on Cutting Knife Sizing Cutting PVC,PP 600mm
- 1000 per Month
- T/T Credit Card
- sheet cutter with slitter
- PVC Strip Cutting Machine Automatic Guillotine Type Rubber 100 M/min Production Capacity 1-1000mm 65cycles/min
- automatic roll to sheet paper foil aluminium foil cutter
- automatic Roll paper sheeting machine
- 500mm paper reel cutting machine for A4 size
- DP-360 max width 360mm paper sheeter machine
Product Description
Professional Manufacturer Die Cutter With Sheet

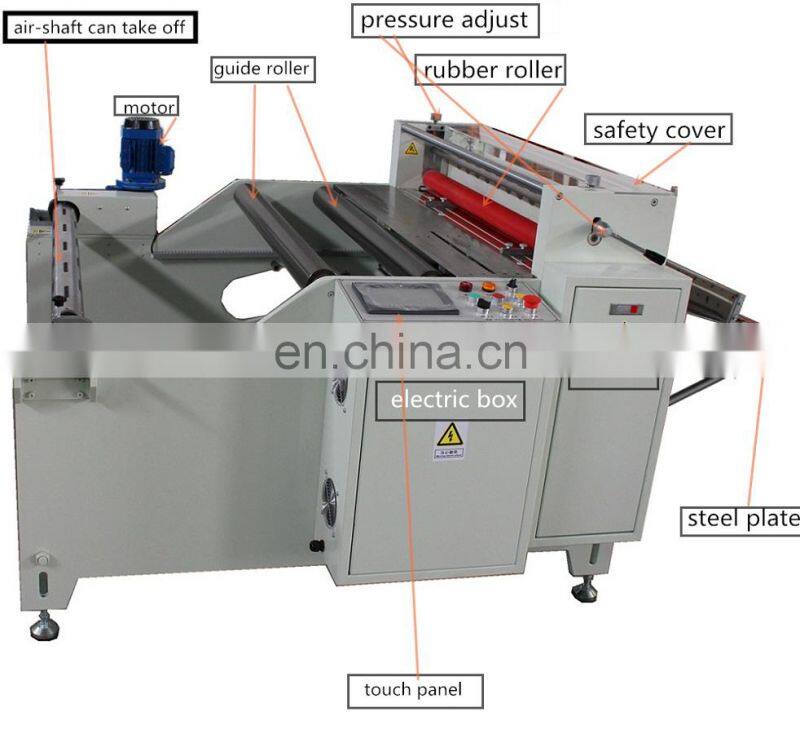

Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine PLC ----- use famous brand MITSUBISHI, Delta which you will easily maintenence in your local place Machine body ----- 16mm to 22mm thickness steel wall , it is very solid that to make sure machine stable when running PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety 12 month electronic parts guarantee after machine arrived your place
Purpose
It is applicable for the cutting ofpaper, PVC film, insulation sheet, Mylar, foam, industrial tape,
electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine | ||||
PLC ----- use famous brand MITSUBISHI, Delta which you will easily maintenence in your local place | ||||
Machine body ----- 16mm to 22mm thickness steel wall , it is very solid that to make sure machine stable when running | ||||
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material | ||||
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material | ||||
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part | ||||
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety | ||||
12 month electronic parts guarantee after machine arrived your place |
Purpose
It is applicable for the cutting ofpaper, PVC film, insulation sheet, Mylar, foam, industrial tape,
electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Product Detail
max cutting width | 360mm/600mm/1000mm |
max cutting thickness | 1mm for PVC |
max unwinding diameter | 600mm |
motor drive | Servo motor |
Protection device | Safety Cover on cutting knife |
cutting method | through-cutting for standard |
Optional cutting method | kiss-cutting customized |
Applied in | sizing cutting PVC,PP |

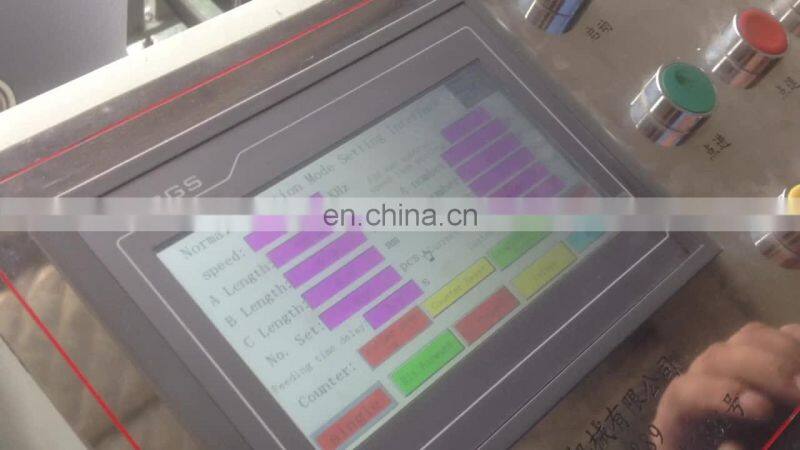

Control panel | Touch screen |
Product Keywords | Die Cutter With Sheet Cutter,Die Cutter Machine With Sheet Cutter,Craft Paper Sheet Cutter Machine |

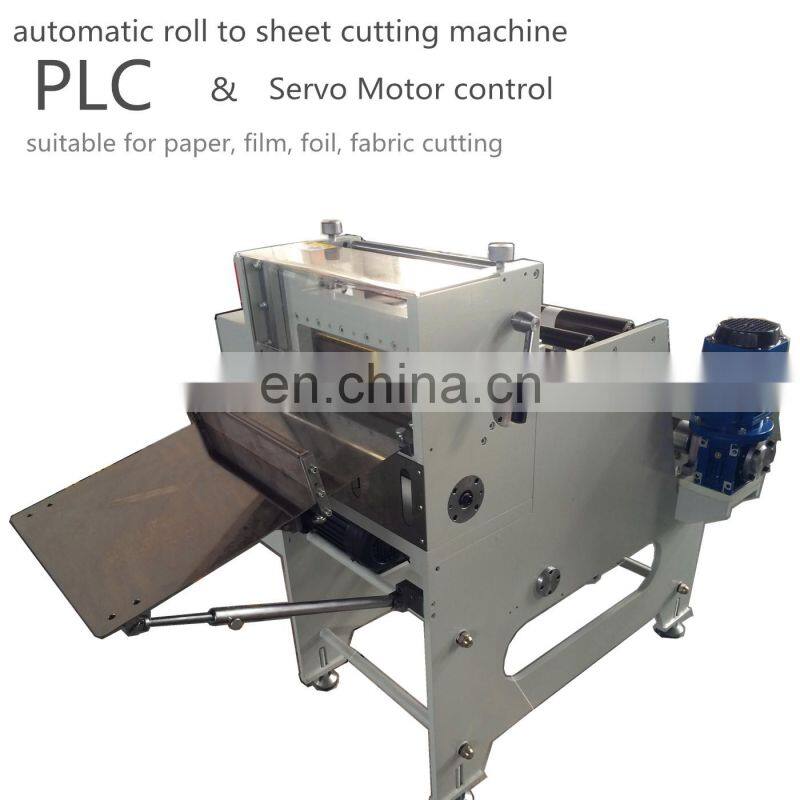

Features: This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,
speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,
which will be easy to load and unload.
Feed material and return material by pressing the button on touch screen
Preset total cutting quantity
Preset cutting length
Preset cutting speed
Preset cut quantity each time ( applied for hot cutting)
Flash cutting quantity finished
Half cut-off with multi-cut
Full cut-off with one-cut
Five different cutting length can be set
Different cutting quantity and circulation time can be set
Return to ZERO
Quality assurance:
12 month after sale Warranty Service (excluding Wear and Tear item )
