Roll to Sheet Cutting Machine With Kiss Cutting

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

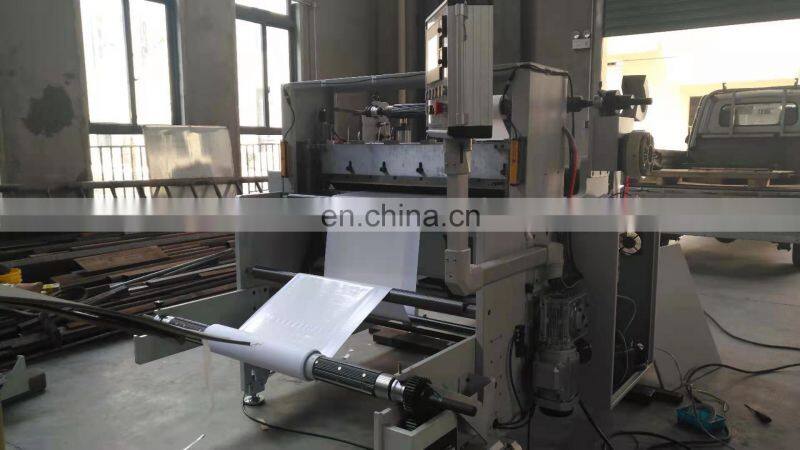

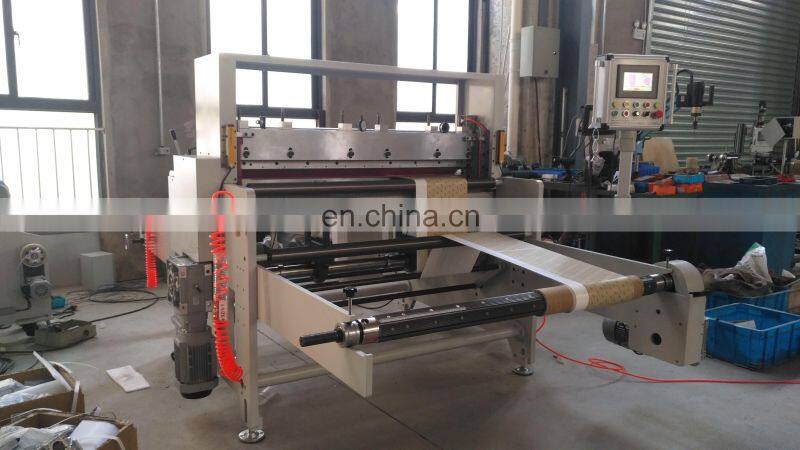

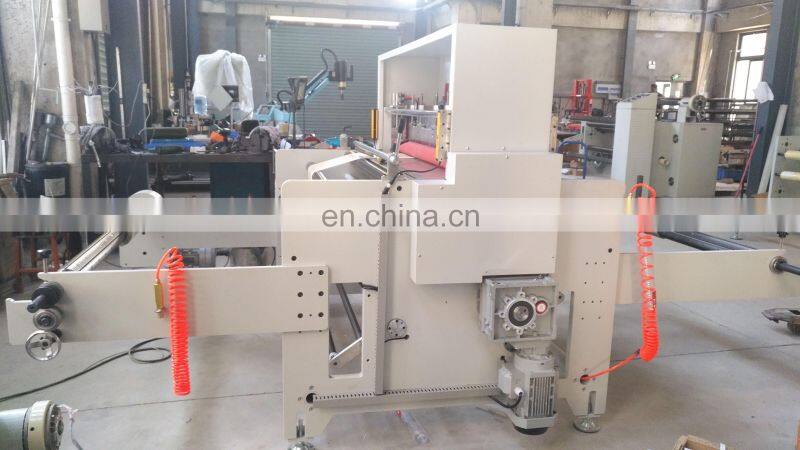

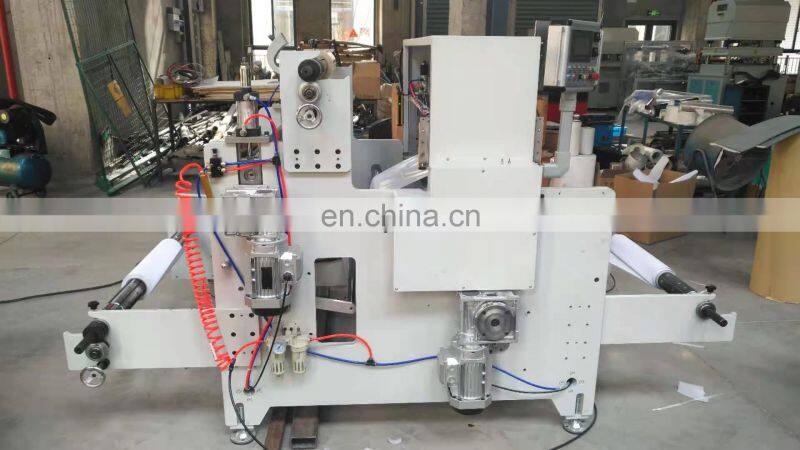

Roll to sheet cutting machine with kiss cutting

Suitable cutting material:
Sophisticaiton deviated light slice with high precision, separated light plank, back light plank, conducting rubber, electrode material, compound film, soft and hard slice with hing.
Functional characteristics:
1.     It adopts computerization number control, convenience of operation.
2.     Operation instrument panel with humanization design, ease of operation.
3.     The length adopts number control.
4.     It can set and cut the amount of break, the amount is up to requirement, it will stop automatically and it also can deliver automatically.
5.     After the machine shutting down, it still can remember the amount automatically.
6.     Its speed can be adjusted between (0-99), it can be set according to different kinds of materials.
7.     It can set XY shaft cutting.
8.     It can cut te half or the whole.

Products:DP-550 High precision sheet cutter

Class:Roll to Sheet Cutting machine

About this product:

Model	DP-550 cutting machine	DP-650 cutting machine
Max Feeding Width ( mm )	550	650
Main Engineer Power ( kw )	1.5	1.5
Speed ( t/m )	160	160
Size ( mm )	150014001500	150016001500
Weight ( kg )	550	800
Precision ( mm )	±0.10	±0.10
Power	220V 50HZ	220V 50HZ

Model	Max Feeding Width (mm)	Main Engineer Power (kw)	Size (mm)	Speed (t/m)	Weight (kg)	Precision (mm)	voltage
DP-1000CQ	1000	4.5	186017201920	120 (1-180MM)	1500	±0.03	380V 50HZ

Touch Screen	MCGS	Beijing China
PLC	MITSUBISHI	Made in JAPAN
Servo Driver	DELTA	Made in TAIWAN
Servo Motor	DELTA	Made in TAIWAN
Motor of cutting knife	TONGLEE	Made in Taiwan
AC Contactor	RENMIN	Shanghai Made in China
20A Solid State Relay	Omoron	Japanese
Electric eye	Panasonnic	Made in Japan
Kiss Cut knife	stainless steel material
Full cut knife	stainless steel material
Automatic lubricator	WLP	Taiwan
unwinder	Include 1 pcs 3inch shaft
