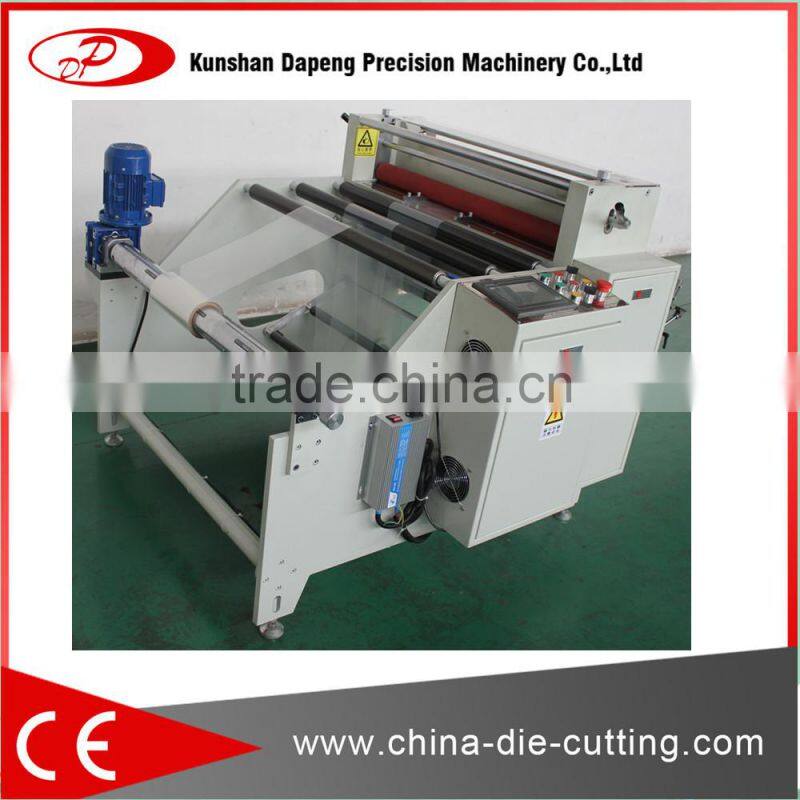

PET PC PVC PCB FPC sheeting machine with automatic unwinder
Function characterision :
Machine adopted imported PLC overall control with touch screen display ,simple and ease of operation. Fast cutting speed,high precision.
Scope applicable:
It is applicable for the cutting of PVC film ,insulation sheet,Mylar,foam ,industrial tape, electronic tape and various inch setting ,entirely broken and paritially broken electronic materials.
360/500 precision computer control sheet cutter
A Configuration List
Touch Screen |
MCGS |
Beijing |
PLC |
Mitsubishi |
Japan |
Servo drivers |
Delta |
Taiwan |
servo-actuator |
Delta |
Taiwan |
Cutting motor (DC electric machine) |
Shenli |
Taiwan |
AC contactor |
Schneider |
Shanghai |
solid-state relay (SSR) 20A |
Omron |
Japan |
magic eye (if you do need , please tell us ) |
Omron |
Japan |
Unwind shaft |
Tongze |
Changzhou |
B Main Technical Data
Item No. |
DP-360/500 |
Power |
1/2HP |
Voltage |
1 phase 220V |
Net weight |
180KG for DP-360/ 250KG for DP-500 |
Cutting length |
0.1--9999.9MM |
Cutting width |
1-360MM/1-500MM |
Cutting speed |
130time/minutes(1-180MM) |
Cutting precise |
±0.05MM |
Cutting function |
Through cut |
The cutting thickness is according to the material , If metal type like Aluminum foil or copper foil , the thickness is about 0.02mm to 0.6mm , and if unmetal material , like paper , films , thickness is from 0.05mm to 1mm , and if cutting foams , is max 8mm | |

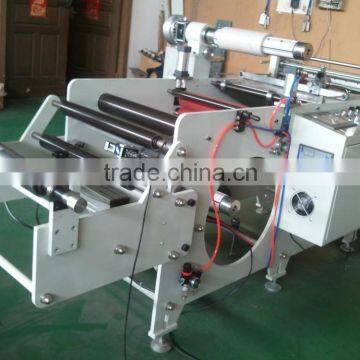

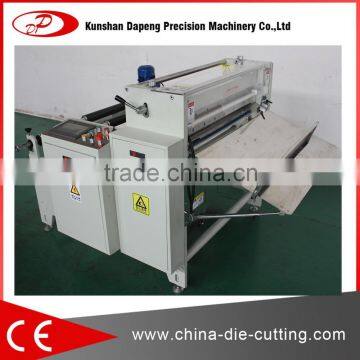

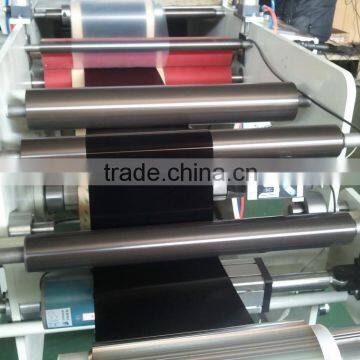

Machine Picture
Machine Structure :
| Model | DP-800 | DP-1000 |
| Voltage | 4HP | 6HP |
| Power | 380V | 380V |
| N.W. | 1800KG | 2000KG |
| Sheeting Length | 0.1-9999.9mm | 0.1-9999.9mm |
| Sheeting width | 1-800mm | 1-1000mm |
| Sheeting precision | ±0.05mm | ±0.05mm |
| (0-180mm)Sheeting speed | 75(cut/min) | 75(cut/min) |
| Machine size | 3200x1650x1250mm | 3200x2150x1250mm |
