S12 Modbus-RTU/TCP multi-protocol intelligent monitoring device gateway
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- EC2 LoRa high coverage 2400-19200 bps wireless communication module
- S15-F RS485/ENET/WiFi communication interface gateway device
- S12 RS485/Ethernet wireless transmission module other communication
- SHI-SCT05/100/200/400/600 multi-circuit monitoring system split core current transformer CT
- SHI-FCT600/1000/2000/3000 multi-circuit monitoring system current transformer flexible CT
- Multi-circuit monitoring system solid core current transformer CT
Product Description
Product Description

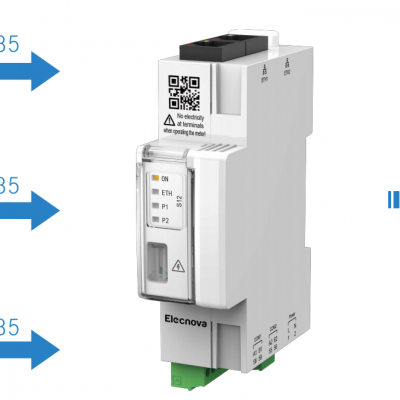

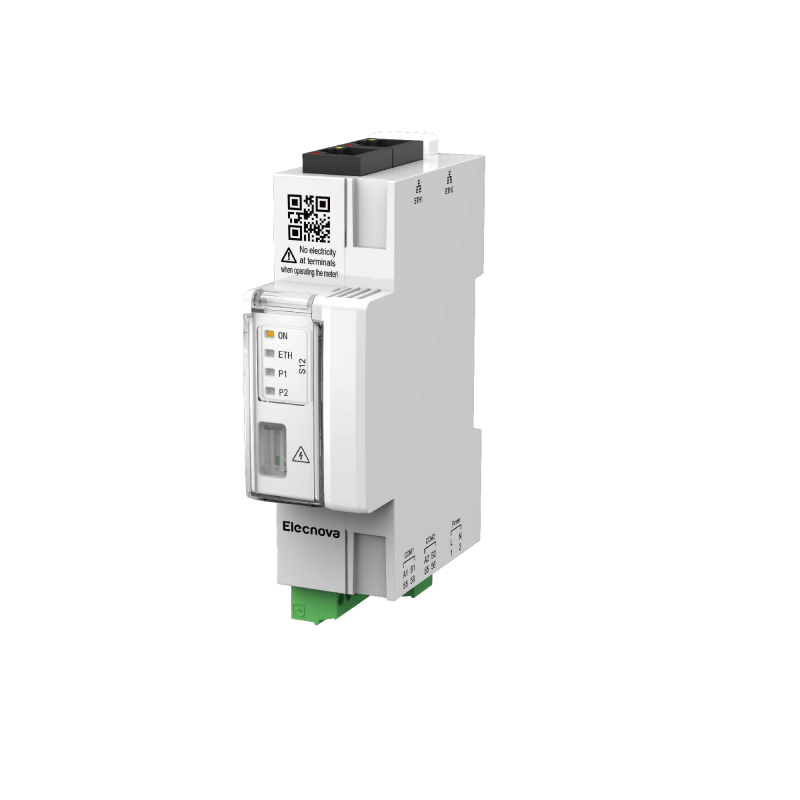

Product name:S12 Modbus-RTU/TCP multi-protocol intelligent monitoring device gateway
S12 is a small gateway which can collect the protocols of multiple bus and transmit data via different protocols and channels. The supporting tool SmartHMI can help users to access the basic information of all slave devices and configure the gateway itself, collection points and application nodes. S12 is mainly used to collect the data from the products of intelligent measurement and control, power quality and electrical safety. As for downlink devices, it supports Modbus RTU and DL/T 645 protocols; as for uplink device, it supports communication with SmartHMl trough Ethernet and supports SmartHMl to read the data of downlink devices through Modbus-TCP protocol.

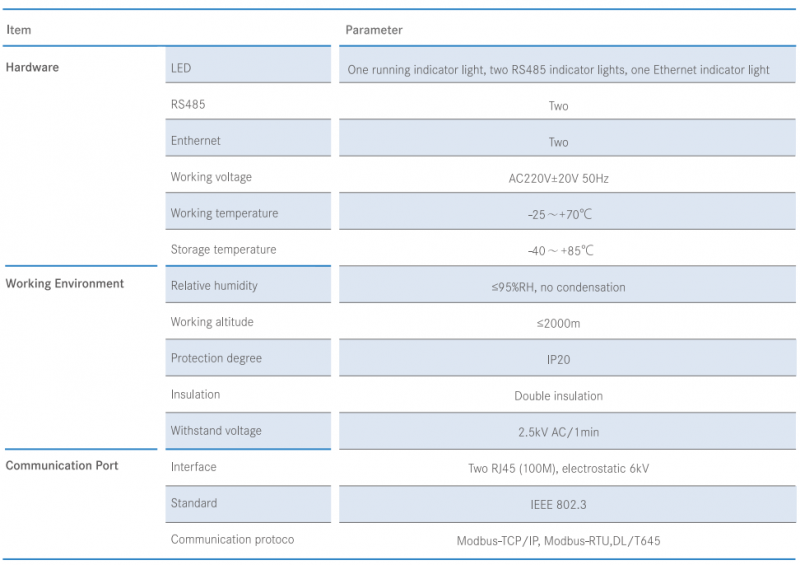

Technical Parameter

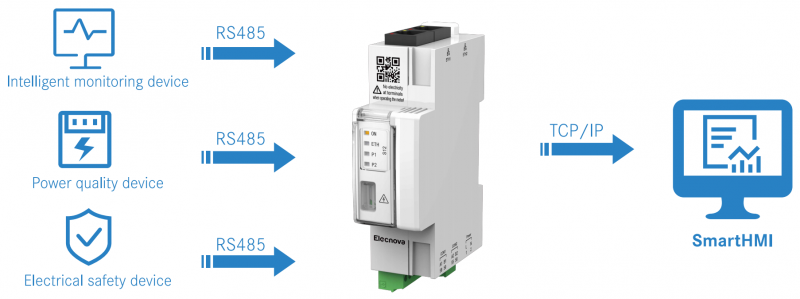

Typical Connectivity
Related Products
Company Profile
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
